HLRC-4020P
Hualong

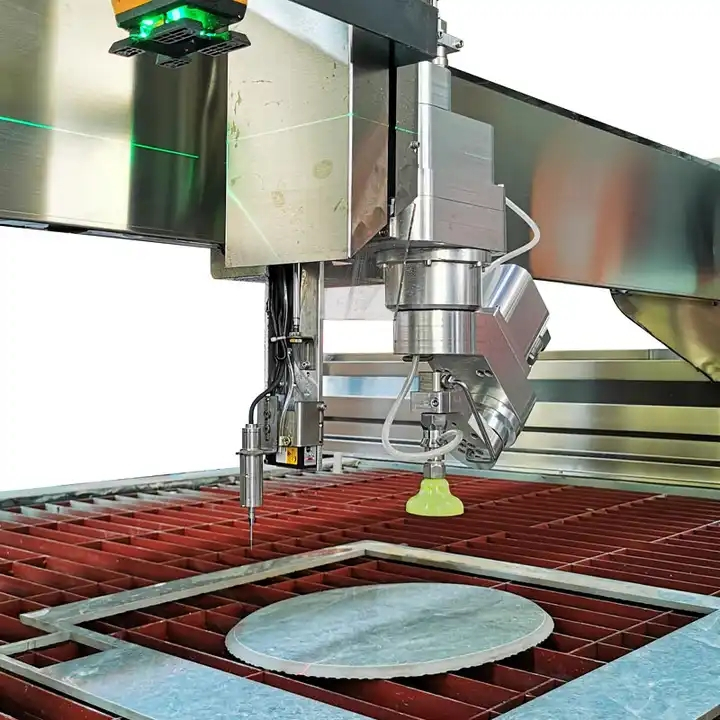

Here's the Waterjet Cutting Machine Stone, a cutting-edge solution for the stone machinery industry. With its imported core parts, this machine ensures durability and safety while delivering high-pressure water for supersonic water jet cutting. The maximum output pressure of 4137bar (60000psi)400MPa and sustainable cutting pressure of 380MPa make it a powerful tool for precision cutting. The machine features an auto abrasive delivery system with an air valve to prevent jams and breakages, ensuring smooth operation. The industrial air-cooled chiller guarantees the hydraulic system's circular use, saving water resources. The movable operator station is equipped with the NcStudio V10 Waterjet cutting CNC system, providing compatibility with various file formats. For added convenience, a remote control option is available for easy operation. Experience the cutting-edge technology of the Waterjet Cutting Machine Stone, brought to you by Hualong Machinery, a trusted name in the industry.
TECHNICAL DATA | |||
Model No. | HLWJ-2515P | HLRC-4020P | |
Working area | mm | 2600*1600 | 4100*2100 |
X-axis stroke | mm | 2500 | 4000 |
Y-axis stroke | mm | 1500 | 2000 |
Z-axis stroke | mm | 80-120 | 80-120 |
Max. angle of C axis rotation | ° | +/- 360 | 0 |
Max. anglel of A axis swing | ° | +/- 60 | 0 |
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
Repeatablbe accuracy | mm | +/- 0.05 | +/- 0.05 |
Traverse speed | mm/min | 6000/15000 | 6000/15000 |
Main motor power | kw | 37 | 37 |
Dimensions (L x W x H) | cm | 350x220x210 | 540x283x210 |
Main Features of the Waterjet Cutting Machine Stone (Model 4020p) by Hualong Machinery:
1. Processable any curve cutting: Our waterjet cutting machine stone is designed to handle any curve cutting with ease, providing flexibility and convenience in stone processing.
2. Fast and smooth notch cutting: The machine ensures fast and smooth notch cutting, without generating dust, thermal deformation, or pollution. This results in tension-free processed parts due to minimal cutting force.
3. Narrow kerf for cost-effective material use: The water jet stream removes material with a narrow kerf, typically about 0.5-1.0 mm wide. This optimized cut width maximizes material use and increases cost effectiveness.
4. Cut Recovery: Our machine allows for cut recovery, enabling you to pick back up where the water jet stopped. This feature saves time and ensures precise cutting.
5. Programmable Z axis height: The Z axis of our machine is programmable, allowing for easy adjustment of the cutting height. It also retracts between pierces, enhancing efficiency and accuracy.
6. High-performance drive system: Our waterjet cutting machine stone is equipped with a high-performance drive system, including servo motors, linear sledge and vehicles, and helical rack and pinions. This system enables rapid and smooth axial movement, ensuring high-precision production and processing speed.
7. Sealed driver system: The driver system of our machine is sealed against water, dust, and grit, ensuring a long working life and reliable performance even in challenging environments.
These main features make our waterjet cutting machine stone (Model 4020p) an ideal choice for stone processing, providing versatility, precision, and durability. Explore our range of products, including CNC waterjet cutting machines, waterjet cutting machines for metal, glass waterjet cutting machines, and waterjet cutters.
Product Advantages of the Waterjet Cutting Machine Stone (Model 4020p) by Hualong Machinery:
1. Automatic Photograph: Capture precise images of the stone material for accurate cutting and pattern generation.
2. Automatic Leveling: Ensure a level surface for precise and uniform cutting results.
3. Automatic Generate CAD Pattern: Generate CAD patterns automatically, saving time and effort in designing and programming.
4. Automatic Detect Height: Detect the height of the stone material to adjust cutting parameters accordingly, ensuring optimal cutting quality.
5. Automatic Set Tool Length: Automatically set the tool length for efficient and accurate cutting operations
. 6. Automatic Cut: Execute cutting operations automatically, reducing manual intervention and improving productivity.
These product advantages make the Waterjet Cutting Machine Stone (Model 4020p) a highly efficient and reliable choice for stone cutting applications. With its advanced automation features, it offers precise cutting results, time-saving CAD pattern generation, and enhanced productivity. Whether it's for cutting stone, metal, or glass, this waterjet cutter delivers exceptional performance and accuracy. Trust Hualong Machinery for your stone machinery needs.
1. Stone/Ceramic Industries: Our waterjet cutting machine stone, model 4020p, is specifically designed for the stone and ceramic industries. It is perfect for cutting countertops, art puzzles, flooring inlays, and mosaics with precision and efficiency.
2. Glass Industry: Our waterjet cutting machine stone is also suitable for the glass industry. It can be used for cutting bathroom glass, shop window glass, automotive glass, and appliance glass. With its advanced technology, it ensures clean and accurate cuts on glass materials.
3. Metal Industries: In addition to stone and glass, our waterjet cutting machine stone is versatile enough to cater to the metal industries. It is ideal for decoration purposes, such as cutting and shaping stainless steel and other metal materials. It can also be used for cutting metal parts and equipment covers with ease.
4. Gasket Cutting: Our waterjet cutting machine stone is capable of cutting gaskets with precision. Whether it's for industrial or automotive applications, our machine can handle gasket cutting efficiently, ensuring accurate shapes and sizes.
5. Foam Product Cutting: Our waterjet cutting machine stone is also suitable for cutting foam products. Whether it's for packaging, insulation, or other foam applications, our machine can deliver clean and precise cuts, allowing for efficient production processes.
 |  |  |
