HLRC-4020P
Hualong

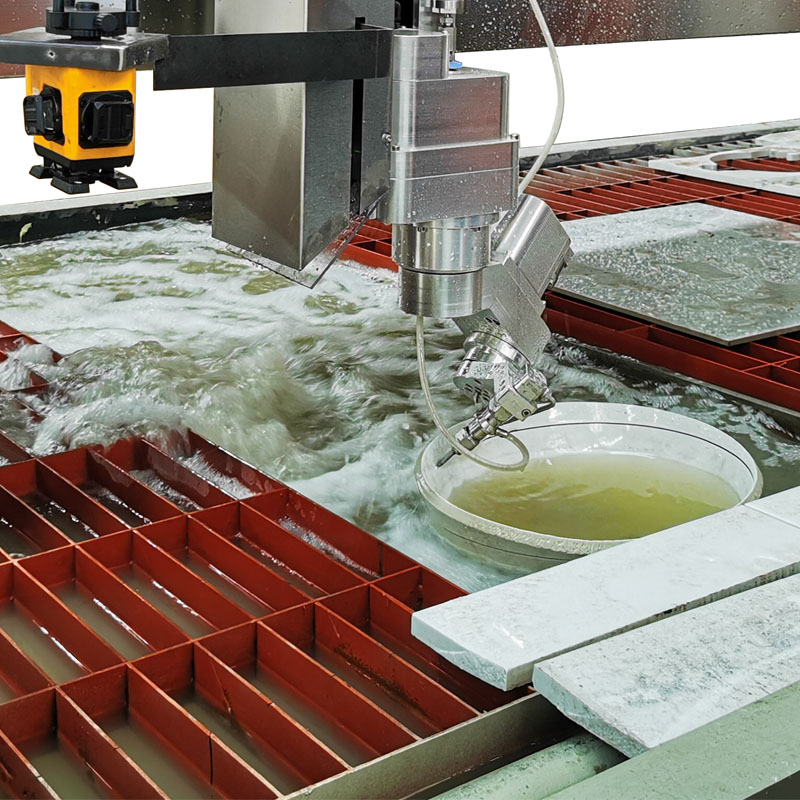

The Hualong Machinery 4020p Water Stone Cutting Machine is a high-performance solution designed specifically for the stone machinery industry. With its imported core parts, this machine ensures durability and safety while effectively pressurizing water to continuously output a supersonic water jet at the cutting head. It boasts a maximum output pressure of up to 4137bar (60000psi)400MPa, allowing for sustainable cutting pressure of up to 380MPa. Equipped with an auto abrasive delivery system, this machine efficiently transfers abrasive to the abrasive regulator, preventing jams and breakages. The CNC auxiliary function and self-sealing feature further enhance the control and adjustability of the flow. Additionally, the industrial air-cooled chiller guarantees the hydraulic system's circular usage, saving water resources. The movable operator station is equipped with the NcStudio V10 Waterjet cutting CNC system, ensuring compatibility with various file formats generated by CAD/CAM software such as UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw, and more. For added convenience, the machine also offers an optional remote control for easy operation of the 5 axes movement. With its advanced features and reliable performance, the Hualong Machinery 4020p Water Stone Cutting Machine is the ideal choice for water jet cutting marble stone. If you're looking for a top-quality waterjet cutter for sale or a marble cutting machine with water, this CNC waterjet cutting marble machine is the perfect solution. Trust Hualong Machinery for all your stone machinery needs.
TECHNICAL DATA | |||
Model No. | HLWJ-2515P | HLRC-4020P | |
Working area | mm | 2600*1600 | 4100*2100 |
X-axis stroke | mm | 2500 | 4000 |
Y-axis stroke | mm | 1500 | 2000 |
Z-axis stroke | mm | 80-120 | 80-120 |
Max. angle of C axis rotation | ° | +/- 360 | 0 |
Max. anglel of A axis swing | ° | +/- 60 | 0 |
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
Repeatablbe accuracy | mm | +/- 0.05 | +/- 0.05 |
Traverse speed | mm/min | 6000/15000 | 6000/15000 |
Main motor power | kw | 37 | 37 |
Dimensions (L x W x H) | cm | 350x220x210 | 540x283x210 |
Main Features of the Water Stone Cutting Machine:
1. Processable any curve cutting: Our water stone cutting machine is capable of cutting any curve with precision and flexibility, making it suitable for a wide range of cutting applications.
2. Fast and smooth notch cutting: The machine ensures fast and smooth notch cutting without producing any dust, thermal deformation, or pollution. This results in clean and high-quality cuts.
3. Narrow kerf for cost-effective cutting: The water jet stream removes material with a narrow kerf width of typically 0.5-1.0 mm. This optimized cut width maximizes material utilization, increasing cost-effectiveness.
4. Cut recovery feature: The machine allows for seamless cut recovery, enabling you to pick up where the water jet stopped. This feature saves time and ensures precise cutting results.
5. Programmable Z axis height: Our water stone cutting machine is equipped with a programmable Z axis height, allowing for easy adjustment and retraction between pierces. This enhances efficiency and accuracy during the cutting process.
6. High-performance drive system: The machine utilizes a high-performance drive system, including servo motors, linear sledge and vehicles, and helical rack and pinions. This system enables rapid and smooth axial movement, ensuring high precision and processing speed.
7. Sealed driver system: The driver system of our water stone cutting machine is sealed against water, dust, and grit. This ensures a long working life and reliable performance even in challenging environments.
These main features make our water stone cutting machine, model 4020p, an ideal choice for professionals in the stone machinery industry. With Hualong Machinery, you can expect a high-quality and efficient solution for waterjet cutting marble stone, as well as a reliable CNC waterjet cutting machine for sale.
Product Advantages of the Water Stone Cutting Machine:
1. Automatic Photograph: The water stone cutting machine is equipped with an automatic photograph feature, allowing for precise and accurate positioning of the stone. This ensures that the cutting process is carried out with utmost precision and efficiency.
2. Automatic Leveling: With the automatic leveling feature, the water stone cutting machine ensures that the stone is perfectly leveled before the cutting process begins. This eliminates any potential errors or inconsistencies in the final product.
3. Automatic Generate CAD Pattern: The water stone cutting machine is capable of automatically generating CAD patterns, saving time and effort in the design process. This feature allows for quick and accurate pattern creation, enhancing productivity and reducing manual work.
4. Automatic Detect Height: The water stone cutting machine is equipped with an automatic height detection system, which accurately detects the height of the stone. This ensures that the cutting process is carried out at the optimal height, resulting in precise and clean cuts.
5. Automatic Set Tool Length: The water stone cutting machine automatically sets the tool length, eliminating the need for manual adjustments. This feature saves time and ensures consistent cutting performance.
6. Automatic Cut: The water stone cutting machine is capable of automatically cutting the stone based on the pre-set patterns and parameters. This feature enhances efficiency and accuracy, allowing for seamless and precise cutting operations.
These product advantages of the water stone cutting machine, model 4020p, offered by Hualong Machinery, make it an ideal choice for professionals in the stone industry. With its advanced features and automation capabilities, it ensures precise and efficient cutting of marble and other stone materials.
1. Water stone cutting machine: This innovative waterjet cutting machine, also known as a waterjet cutter, is specifically designed for the stone industry. It offers precise and efficient cutting for a wide range of stone materials, including marble, granite, and ceramic.
2. Versatile stone cutting: Our water stone cutting machine is ideal for various applications in the stone industry. It can be used for cutting countertops, creating intricate art puzzles, producing flooring inlays, and crafting beautiful mosaics.
3. Superior glass cutting: In addition to stone, our waterjet cutting machine is also suitable for the glass industry. It ensures precise and clean cuts for bathroom glass, shop window glass, automotive glass, and appliance glass.
4. Metal cutting capabilities: With its advanced technology, our water stone cutting machine is capable of cutting metal materials as well. It is widely used in metal industries for decorative purposes, such as cutting stainless steel for decoration and creating equipment covers.
5. Gasket cutting made easy: The waterjet cutting machine is also highly efficient in cutting gaskets. It provides accurate and clean cuts, ensuring the perfect fit for various applications.
6. Foam product cutting: Our water stone cutting machine is versatile enough to handle foam products as well. It offers precise cutting for foam materials, making it suitable for industries that require foam product cutting.
The Hualong Machinery 4020p Water Stone Cutting Machine is a high-performance solution designed specifically for the stone machinery industry. With its imported core parts, this machine ensures durability and safety while effectively pressurizing water to continuously output a supersonic water jet at the cutting head. It boasts a maximum output pressure of up to 4137bar (60000psi)400MPa, allowing for sustainable cutting pressure of up to 380MPa. Equipped with an auto abrasive delivery system, this machine efficiently transfers abrasive to the abrasive regulator, preventing jams and breakages. The CNC auxiliary function and self-sealing feature further enhance the control and adjustability of the flow. Additionally, the industrial air-cooled chiller guarantees the hydraulic system's circular usage, saving water resources. The movable operator station is equipped with the NcStudio V10 Waterjet cutting CNC system, ensuring compatibility with various file formats generated by CAD/CAM software such as UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw, and more. For added convenience, the machine also offers an optional remote control for easy operation of the 5 axes movement. With its advanced features and reliable performance, the Hualong Machinery 4020p Water Stone Cutting Machine is the ideal choice for water jet cutting marble stone. If you're looking for a top-quality waterjet cutter for sale or a marble cutting machine with water, this CNC waterjet cutting marble machine is the perfect solution. Trust Hualong Machinery for all your stone machinery needs.
