HLRC-4020
Hualong

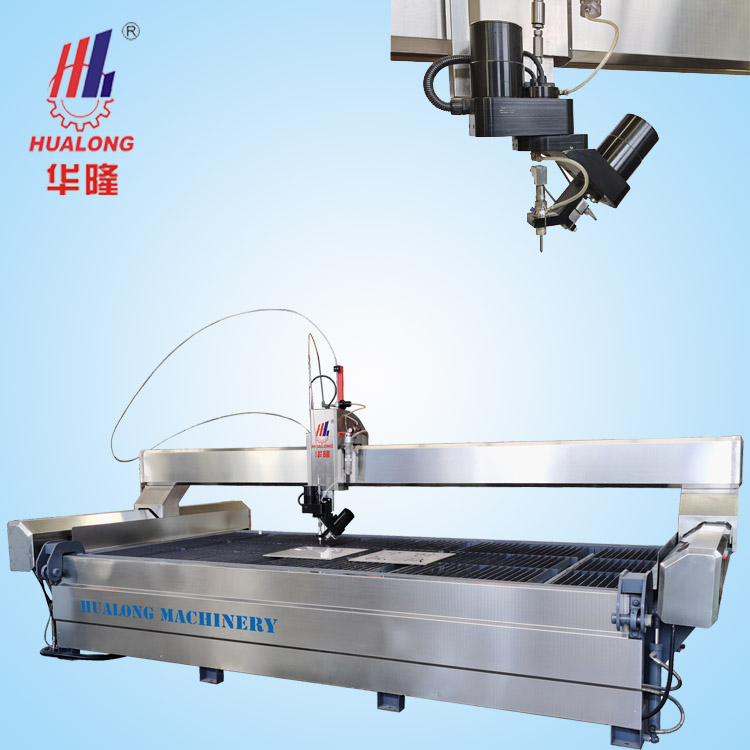

The Water Jet Stone Cutting Machine, model 4020, offered by Hualong Machinery, is a high-performance solution designed specifically for the stone industry. With its imported core parts, this machine ensures durability and safety while delivering exceptional water pressure for precise cutting. The maximum output pressure of 4137bar (60000psi)400MPa allows for sustainable cutting pressure up to 380MPa, guaranteeing efficient and accurate results. The machine features an auto abrasive delivery system that transfers the abrasive to the regulator, preventing jams and breakages. The industrial air cooled chiller ensures the hydraulic system remains cool, enabling continuous operation and water conservation. The movable operator station comes equipped with the NcStudio V10 Waterjet cutting CNC system, offering compatibility with various file formats generated by CAD/CAM software. Additionally, the optional remote control allows for convenient operation of the machine's movement. Experience the precision and efficiency of the Water Jet Stone Cutting Machine for all your stone cutting needs.
TECHNICAL DATA | |||
Model No. | HLRC-3020 | HLRC-4020 | |
Working area | cm | 330*210 | 410*210 |
X-axis stroke | mm | 3200 | 4000 |
Y-axis stroke | mm | 2000 | 2000 |
Z-axis stroke | mm | 80-130 | 80-130 |
Max. angle of C axis rotation | ° | +/- 360 | +/- 360 |
Max. anglel of A axis swing | ° | +/- 60 | +/- 60 |
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
Repeatablbe accuracy | mm | +/- 0.05 | +/- 0.05 |
Traverse speed | mm/min | 5000/15000 | 5000/15000 |
Main motor power | kw | 37 | 37 |
Dimensions (L x W x H) | cm | 443x278x220 | 494x280x222 |
Main Features of the Water Jet Stone Cutting Machine:
1. Processable any curve cutting: Our water jet stone cutting machine, model 4020, is designed to handle any curve cutting with ease. Its flexibility and versatility make it suitable for various stone cutting applications.
2. Fast and smooth notch cutting: The machine ensures fast and smooth notch cutting, leaving no dust, thermal deformation, or pollution. This feature guarantees high-quality cuts without compromising the integrity of the stone.
3. Narrow kerf for optimal material use: With a water jet stream that typically removes only 0.5-1.0 mm of material, our machine offers a narrow kerf. This narrow cut width optimizes material use, resulting in increased cost effectiveness for your stone cutting projects.
4. Cut recovery capability: In the event of a pause or interruption, our water jet stone cutting machine allows you to pick back up exactly where the jet stopped. This feature ensures precision and accuracy in your cutting process.
5. Programmable Z axis height: The Z axis of our machine is programmable, allowing for easy adjustment of the cutting height. It also retracts between pierces, ensuring tension-free processing of parts with minimal cutting force.
6. High-performance drive system: Our machine is equipped with a high-performance drive system, including servo motors, linear sledges, vehicles, and helical rack and pinions. This system enables rapid and smooth axial movement, resulting in efficient and precise production of stone parts.
7. Sealed driver system: The driver system of our water jet stone cutting machine is sealed against water, dust, and grit. This design ensures a long working life and protects the internal components from potential damage.
These main features of our water jet stone cutting machine, offered by Hualong Machinery, make it an ideal choice for stone cutting projects. With its advanced technology and reliable performance, it meets the demands of the stone machinery industry.
1. Versatile Cutting: Our waterjet cutting machine, model 4020, excels in processing various materials, including stone, marble, and granite, with high precision and flexibility.
2. Clean and Precise Cuts: The waterjet cutting technology delivers fast and smooth notches without producing dust, heat deformation, or pollution. This ensures a clean and aesthetically pleasing finish on stone surfaces.
3. Minimal Material Waste: With a narrow kerf width of typically 0.5-1.0 mm, our waterjet cutting machine optimizes material usage, increasing cost-effectiveness, which is particularly valuable when working with expensive stone materials.
4. Cut Recovery: Our waterjet machine offers the capability to pick up cutting from where it stopped, reducing material wastage and increasing efficiency.
5. Programmable Z-Axis: The ability to program the Z-axis height and have it retract between pierces enhances cutting precision and efficiency.
6. High-Precision Drive System: Utilizing servo motors, linear guides, and helical rack and pinions, our waterjet cutting machine provides rapid and smooth axial movement, ensuring accuracy in intricate stone cutting tasks.
7. Durable and Sealed Design: Our machine's drive system is sealed against water, dust, and grit, ensuring a long working life even in challenging stone-cutting environments.
1. Waterjet Cutting Machine: Our waterjet cutting machine, model 4020, is specifically designed for cutting stone materials such as marble, granite, and limestone with high precision. It is ideal for various applications in the stone industry.
2. Tile and Slab Production: With our waterjet cutting machine, stone tiles and slabs can be produced with precise sizing and shaping. This ensures the perfect fit and seamless installation of stone pieces in construction and interior design projects.
3. Monument and Sculpture Fabrication: The waterjet cutting technology employed in our machine allows for the creation of intricate details and shapes in stone monuments, sculptures, and architectural features. This enables craftsmen to bring their creative visions to life with precision and accuracy.
4. Inlays and Mosaics: Our waterjet cutting machine enables the creation of intricate stone inlays and mosaics. This enhances the aesthetics of various surfaces, adding a touch of elegance and sophistication to any space.
5. Architectural Design: Waterjet-cut stone elements produced by our machine are widely used in architectural projects for decorative facades, flooring, and interior design. The precise cutting capabilities of our machine ensure the creation of stunning and visually appealing stone designs.
6. Custom Stone Work: Our waterjet cutting machine allows for custom stone cutting, making it perfect for personalized designs in kitchen countertops, bathroom vanities, and other stone products. This enables customers to have unique and tailored stone pieces that perfectly fit their design preferences.
 |  |  |
