HLRC-4020P
Hualong
Here's the Waterjet Cutting Machine for marble stone by Hualong Machinery. This high-performance machine, model 4020p, is designed to deliver precise and efficient cutting results. With its imported core parts, it ensures durability and safety while pressurizing water to convert it into a supersonic water jet at the cutting head. The maximum output pressure of 4137bar (60000psi)400MPa and sustainable cutting pressure of 380MPa guarantee exceptional cutting power. Equipped with an auto abrasive delivery system, this machine effortlessly transfers abrasive to the abrasive regulator, preventing jams and breakages. The CNC auxiliary function allows for auto control, while the self-sealing feature enables slight flow adjustments. The industrial air-cooled chiller ensures the hydraulic system remains cool, enabling its continuous and water-saving usage. The movable operator station comes with the NcStudio V10 Waterjet cutting CNC system, providing compatibility with various file formats generated by CAD/CAM software. Additionally, the optional remote control allows for convenient operation of the machine's movement. Experience the precision and efficiency of the Waterjet Cutting Machine for marble stone by Hualong Machinery. It is the ideal choice for those seeking an affordable waterjet cutting machine that delivers exceptional results.
TECHNICAL DATA | |||
Model No. | HLWJ-2515P | HLRC-4020P | |
Working area | mm | 2600*1600 | 4100*2100 |
X-axis stroke | mm | 2500 | 4000 |
Y-axis stroke | mm | 1500 | 2000 |
Z-axis stroke | mm | 80-120 | 80-120 |
Max. angle of C axis rotation | ° | +/- 360 | 0 |
Max. anglel of A axis swing | ° | +/- 60 | 0 |
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
Repeatablbe accuracy | mm | +/- 0.05 | +/- 0.05 |
Traverse speed | mm/min | 6000/15000 | 6000/15000 |
Main motor power | kw | 37 | 37 |
Dimensions (L x W x H) | cm | 350x220x210 | 540x283x210 |
Main Features of the Water Jet Cutting Marble Stone Machine (Model 4020p):
1. Processable any curve cutting: Our water jet cutting machine is capable of cutting any curve with precision and accuracy, allowing for versatile and flexible cutting options.
2. Fast and smooth notch cutting: The water jet cutting process ensures a fast and smooth notch cut, without any dust, thermal deformation, or pollution. This results in tension-free processed parts due to minimal cutting force.
3. Narrow kerf for cost-effective material use: The water jet stream removes material with a width of only 0.5-1.0 mm, optimizing material use and increasing cost effectiveness. This narrow kerf also allows for intricate and detailed cuts.
4. Cut recovery feature: Our water jet cutting machine has a cut recovery function, allowing you to easily pick back up where the jet stopped. This feature saves time and ensures precise cutting results.
5. Programmable Z axis height: The Z axis of our machine is programmable, allowing for easy adjustment and retraction between pierces. This enhances the efficiency and accuracy of the cutting process.
6. High-performance drive system: Our machine is equipped with a high-performance drive system, including servo motors, linear sledge and vehicles, and helical rack and pinions. This ensures rapid and smooth axial movement, resulting in high-precision production and processing speed.
7. Sealed driver system: The driver system of our machine is sealed against water, dust, and grit, ensuring a long working life and reliable performance even in challenging environments.
These main features make our water jet cutting machine (Model 4020p) an ideal choice for the stone industry. With its advanced capabilities and precision, it offers efficient and high-quality cutting solutions for marble and other stone materials.

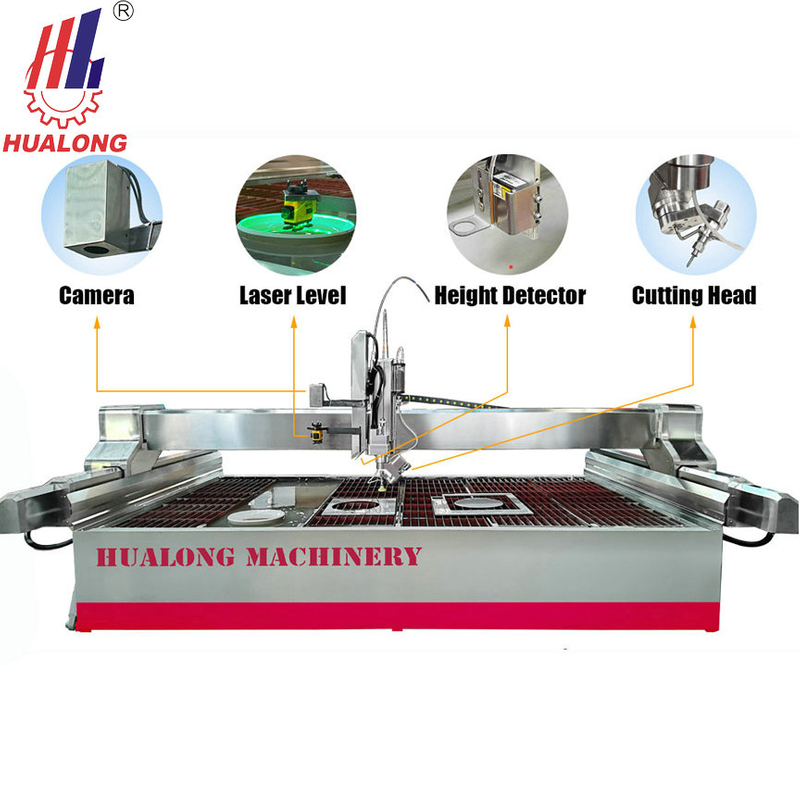

1. Automatic Photograph: Our water jet cutting machine, model 4020p, features an automatic photograph function that allows for precise positioning and alignment of the marble stone. This ensures accurate and efficient cutting, reducing material waste and increasing productivity.
2. Automatic Leveling: With its automatic leveling capability, our water jet cutting machine ensures a perfectly level surface for cutting marble stone. This eliminates the need for manual adjustments and guarantees consistent and high-quality results.
3. Automatic Generate CAD Pattern: Our machine's automatic CAD pattern generation feature simplifies the design process by automatically generating CAD patterns for cutting marble stone. This saves time and effort, enabling faster production and increased design flexibility.
4. Automatic Detect Height: The water jet cutting machine is equipped with an automatic height detection system, which accurately detects the height of the marble stone. This ensures precise cutting depths, resulting in clean and smooth edges without any damage to the material.
5. Automatic Set Tool Length: Our machine's automatic tool length setting feature eliminates the need for manual tool adjustments. It automatically sets the tool length based on the thickness of the marble stone, ensuring optimal cutting performance and reducing the risk of errors.
6. Automatic Cut: The water jet cutting machine offers automatic cutting functionality, allowing for uninterrupted and continuous cutting of marble stone. This improves efficiency and productivity, making it an ideal choice for large-scale projects.
In summary, our water jet cutting machine, model 4020p, offers several key advantages for cutting marble stone. With its automatic photograph, leveling, CAD pattern generation, height detection, tool length setting, and cutting capabilities, it provides precise and efficient cutting results. Choose Hualong Machinery for reliable and advanced stone machinery solutions.
