HLRC-4020P
Hualong

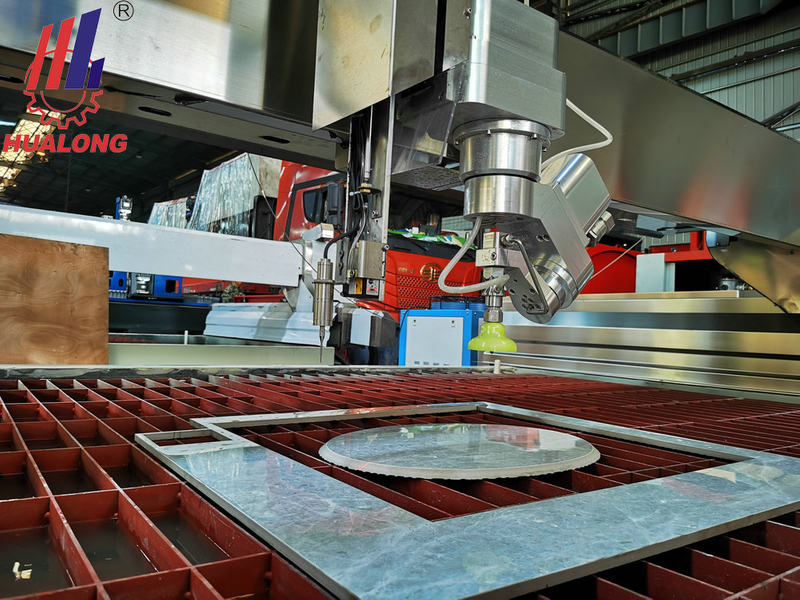

Here's the Waterjet Cutting Machine for Granite, a high-performance solution brought to you by Hualong Machinery. This cutting-edge machine is designed to meet the demands of the stone industry, offering precision and efficiency in cutting granite materials. With its imported core parts, the high-pressure pump ensures durability and safety, allowing for continuous water pressurization and output. The maximum output pressure of 4137bar (60000psi)400MPa and sustainable cutting pressure of 380MPa guarantee exceptional cutting results. The machine is equipped with an auto abrasive delivery system, preventing jams and breakages while providing precise control over the flow. The industrial air-cooled chiller ensures the hydraulic system's optimal performance, saving water resources. The movable operator station, featuring the NcStudio V10 Waterjet cutting CNC system, offers convenience and compatibility with various CAD/CAM software. For added convenience, the optional remote control allows for easy operation of the machine's movement. Experience the power and efficiency of the Waterjet Cutting Machine for Granite, the ideal choice for professionals in the stone industry.
TECHNICAL DATA | |||
Model No. | HLWJ-2515P | HLRC-4020P | |
Working area | mm | 2600*1600 | 4100*2100 |
X-axis stroke | mm | 2500 | 4000 |
Y-axis stroke | mm | 1500 | 2000 |
Z-axis stroke | mm | 80-120 | 80-120 |
Max. angle of C axis rotation | ° | +/- 360 | 0 |
Max. anglel of A axis swing | ° | +/- 60 | 0 |
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
Repeatablbe accuracy | mm | +/- 0.05 | +/- 0.05 |
Traverse speed | mm/min | 6000/15000 | 6000/15000 |
Main motor power | kw | 37 | 37 |
Dimensions (L x W x H) | cm | 350x220x210 | 540x283x210 |
Main Features of the Water Jet Cutting Machine for Granite:
1. Processable any curve cutting: Our water jet cutting machine for granite is designed to handle any curve cutting with ease, providing flexibility and convenience in the cutting process.
2. Fast and smooth notch cutting: The machine ensures fast and smooth notch cutting, without generating any dust or causing thermal deformation. This results in a clean and pollution-free cutting process.
3. Narrow kerf for optimal material use: The water jet stream removes material with a narrow kerf, typically ranging from 0.5 to 1.0 mm wide. This narrow cut width optimizes material usage, increasing cost-effectiveness.
4. Cut recovery feature: Our machine allows you to pick back up where the water jet stopped, ensuring efficient and seamless cutting operations.
5. Programmable Z axis height: The Z axis of our water jet cutting machine is programmable, allowing for easy adjustment and retraction between pierces. This feature enhances precision and efficiency in the cutting process.
6. High-performance drive system: Our machine is equipped with a high-performance drive system, including servo motors, linear sledge and vehicles, and helical rack and pinions. This system enables rapid and smooth axial movement, ensuring high-precision production and processing speed.
7. Sealed driver system: The driver system of our machine is sealed against water, dust, and grit, ensuring a long working life and reliable performance. These main features make our water jet cutting machine for granite an ideal choice for professionals in the stone machinery industry. With the machine model 4020p, manufactured by Hualong Machinery, you can expect exceptional performance and efficiency in your granite cutting operations.
Product Advantages of the Water Jet Cutting Machine for Granite:
1. Automatic photograph feature ensures precise and accurate cutting by capturing detailed images of the granite surface.
2. Automatic leveling capability ensures a perfectly level cutting surface, resulting in precise and high-quality cuts.
3. The machine's ability to automatically generate CAD patterns saves time and effort in creating complex designs for granite cutting.
4. Automatic height detection feature allows for efficient and precise cutting by adjusting the cutting height according to the granite surface.
5. Automatic tool length setting ensures optimal cutting performance by accurately determining the length of the cutting tool.
These advantages make the Water Jet Cutting Machine for Granite from Hualong Machinery a top choice in the stone machinery industry. With its advanced features and capabilities, it offers a reliable and efficient solution for cutting granite with precision and accuracy.
 |  |  |
