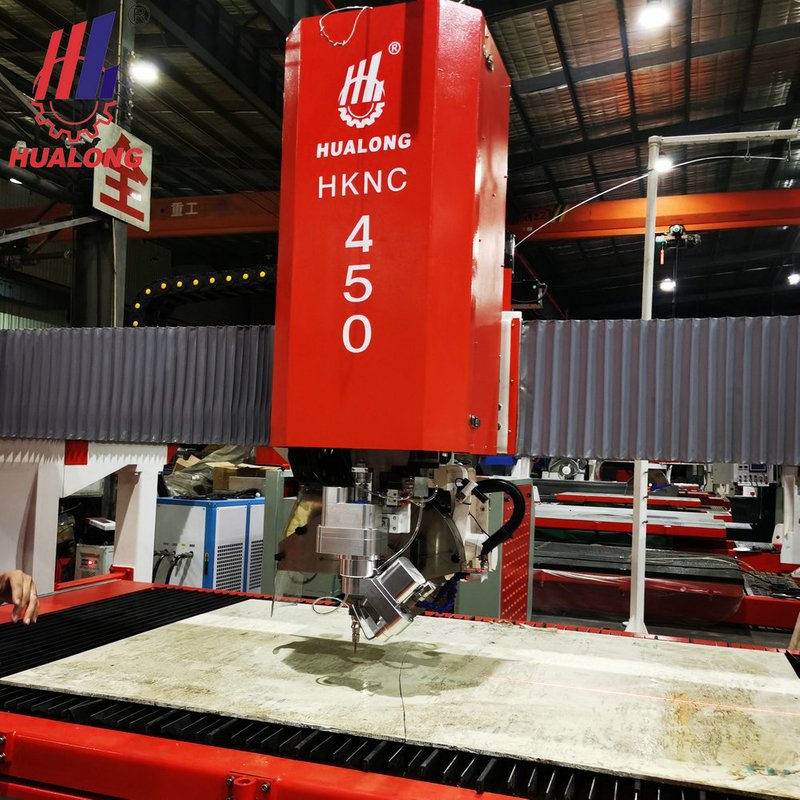

HKNC-450J
Here's the Hualong Machinery 450J, a top-of-the-line CNC machine designed specifically for marble cutting. This waterjet cutting machine is equipped with an advanced control system from Esa, an Italian brand known for its precision and efficiency. The touch screen interface makes setting up and operating the machine a breeze, ensuring perfect and high-efficient results for even the most complicated machining jobs. The CNC system is seamlessly integrated with YASKAWA's digital servomotors, originating from Japan, providing reliable control for the X, Y, Z, C, and A axes. To aid in precise alignment, the machine features a laser reticule apparatus from China. The high-quality electro-spindles, controlled by an inverter, allow for adjustable revolutions up to 6000 rpm, accommodating various tools such as core drills and milling cutters. The machine also incorporates Hiwin's renowned linear guides from Taiwan, ensuring exceptional cutting precision and longevity. Experience the power and precision of the Hualong Machinery 450J, the ultimate CNC machine for marble cutting.
TECHNICAL DATA FOR HKNC-450J | ||
Diameter of saw blade | ø350-ø450 | mm |
Dimension of working platform | 4150x2250 | mm |
X axis stroke | 3500 | mm |
Y axis stroke | 2000 | mm |
Z axis stroke | 500 | mm |
Max. cutting thickness | 100 | mm |
Max. lifting stroke | 320 | mm |
Power of saw blade motor | 26.4 | kw |
Power for abrasive waterjet | 37 | kw |
Max. operating water pressure | 450 | mpa |
Required pressure of inflow | 0.4 | mpa |
Water consumption | 11.4-16.7 | l/min |
Gross weight | 10000 | kg |
Dimensions (L x W x H) | 6000x3820x320 | mm |
Main Features of the Hualong Machinery 450J Waterjet Cutting Machine:
1. 5-axis Interpolation: The 450J Waterjet Cutting Machine is equipped with a fully interpolated 5-axis system, allowing for precise and complex cutting, drilling, milling, and engraving operations. This advanced technology ensures efficient and accurate processing of stone materials.
2. Automatic Head Rotation and Tilting: With automatic head rotation from 0° to 360° and blade tilting from 0° to 90°, the machine offers exceptional flexibility for large production runs. This feature not only enhances productivity but also helps to reduce costs.
3. Abrasive Cutting Head: The machine is equipped with an automatic abrasive cutting head that can tilt from 0° to 60°. This enables precise fabrication of inside corners and mitered edges, ensuring high-quality results.
4. KMT-H20 JET50 Super-Pressure Pump: The 450J Waterjet Cutting Machine is equipped with a high-performance KMT-H20 JET50 super-pressure pump, which is powered by Siemens PLC and motor. This pump provides reliable and consistent waterjet cutting power, ensuring efficient and accurate cutting operations.
5. Italian CNC Esa System: The machine features a 5-axis linkage control system with an Italian CNC Esa system. This system offers precise control and easy operation, thanks to its user-friendly interface with a 19" color touch-screen.
6. Gantry System and Perfect Square Bridge: The Y axis of the machine is moved by a gantry system, which guarantees a perfect square of the bridge. This ensures precise and accurate movements, allowing for high-quality cutting and fabrication.
7. DXF File Compatibility: The CNC Sawjet & bridge saw can quickly perform easy cuts in manual mode, and it also has the capability to import and work with DXF (AutoCAD) files. This feature simplifies the workflow and allows for seamless integration with existing design software.
8. Versatile Working Platform: The working platform of the machine can tilt up to 85 degrees, making it easy for slabs loading. Additionally, it features a photo slab for nesting and avoiding defects, as well as manual/automatic nesting to optimize slab surface usage.
9. RTCP Tool Point Tracking: The machine incorporates an RTCP tool point tracking function, ensuring precision machining with ease. This feature allows for accurate tracking and adjustment of the tool point, resulting in precise and consistent cuts.
10. Optional Vein Match: For projects requiring perfect vein matching, the machine offers an optional vein match feature. This allows for easy matching of each vein and color at the seam, ensuring a seamless and visually appealing end result.
Product Advantages for Hualong Machinery's Machine Marble Cutting (450J):
1. Low investment: The 450J machine marble cutting offers a cost-effective solution for stone processing, requiring minimal initial investment.
2. Double capability: This machine combines the advantages of a CNC bridge saw and a CNC waterjet, providing the flexibility to handle both straight cuts and tight angles.
3. Small room occupied: With its compact design, the 450J machine marble cutting occupies minimal space in your workshop, maximizing the utilization of your available area.
4. Increased cutting efficiency: By utilizing a CNC saw for straight cuts and a precision waterjet for tight angles, this machine maximizes cutting time and operates three times faster than conventional bridge saws. This not only reduces costs but also increases your production capacity.
5. Versatile application: The 450J machine marble cutting is suitable for various stone materials, including marble, granite, and more. It offers a wide range of applications in the stone industry, making it a versatile and valuable addition to your production line.
6. Precision and accuracy: With advanced technology and precision components, this machine ensures precise and accurate cutting results, meeting the high standards required in the stone industry.
7. Cost-effective operation: By reducing cutting time and increasing efficiency, the 450J machine marble cutting helps to optimize your production process, resulting in cost savings and improved profitability.
8. Reliable performance: Manufactured by Hualong Machinery, a trusted name in the stone machinery industry, the 450J machine marble cutting is built to deliver reliable performance and long-lasting durability.
9. User-friendly interface: The machine is equipped with a user-friendly interface, making it easy to operate and control. This ensures that operators can quickly adapt to the machine and maximize its capabilities.
10. Excellent customer support: Hualong Machinery provides excellent customer support, including technical assistance, training, and after-sales service, ensuring that you have a smooth and hassle-free experience with the 450J machine marble cutting.
1. Waterjet Cutting Machine: Our 450J Waterjet Cutting Machine is specifically designed for marble cutting applications. With its advanced 5-axis functionality, it ensures precise and intricate cuts, making it ideal for shaping marble countertops, sinks, and other marble products.
2. Blade Profiling and Engraving: The Waterjet Cutting Machine excels at blade profiling and engraving, allowing for intricate and customized designs on marble surfaces. Its unmatched precision meets the demands of intricate marble detailing, providing a high-quality finish.
3. Inlay Patterns: Our Waterjet Cutting Machine is instrumental in creating intricate inlay patterns on marble surfaces. Whether it's porcelain, stone, or marble, the 5-axis waterjet technology enables the cutting of precise angles and shapes, making it the preferred choice for achieving artistic and decorative designs.
4. Cost-Effective Production: The 450J Waterjet Cutting Machine offers substantial cost savings in large-scale marble processing. With automatic head rotation and blade tilting capabilities, it efficiently handles complex curved surface processing, cutting, drilling, milling, and engraving tasks, all in one machine. This integration reduces production costs while maintaining high-quality standards.
5. Material Diversity: Our Waterjet Cutting Machine is versatile and can handle a wide range of stone materials, including marble. Its adaptability makes it suitable for various marble cutting projects, ensuring consistent and precise results.
 |  |  |
