HKNC-450J

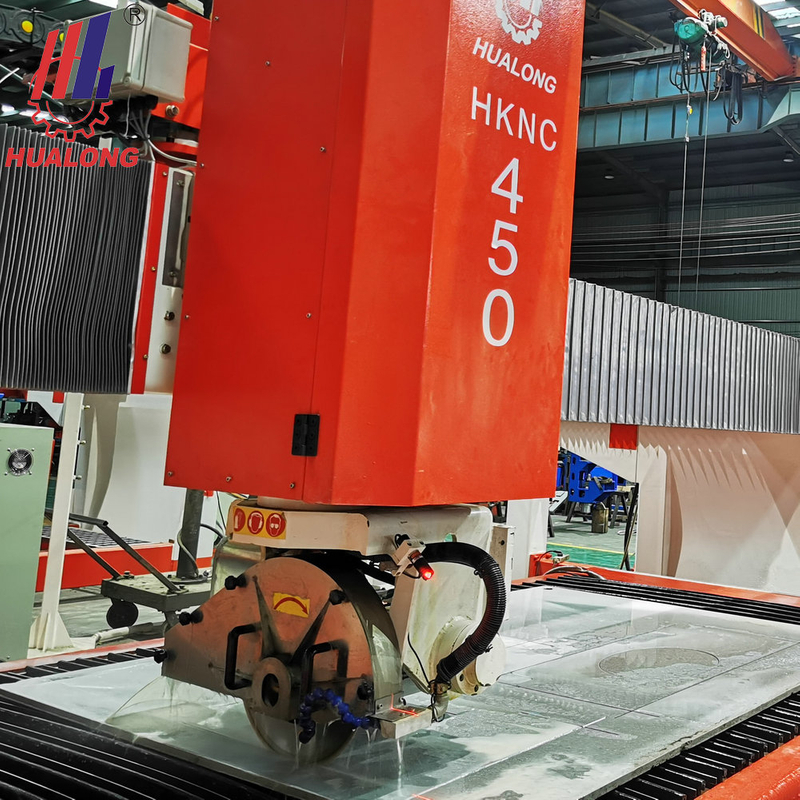

Here's the "Granite and Marble Cutting Machine" by Hualong Machinery. This top-of-the-line CNC machine, equipped with the advanced Esa control system from Italy, offers a seamless and efficient cutting experience. The machine's touch screen interface allows for easy setting and automatic processing, making even the most complicated machining jobs simple and perfect. Powered by the reliable YASKAWA digital servomotor system from Japan, this machine ensures precise control over the X, Y, Z, C, and A axes. The laser reticule apparatus, sourced from China, aids in aligning the cut at the beginning of processing. With high-quality electro-spindles and an inverter for adjustable revolutions, this machine allows for the use of various tools such as core drills and milling cutters. The linear guide, manufactured by Hiwin in Taiwan, guarantees high precision cutting and a long lifespan. Experience the ultimate cutting solution with the Hualong Machinery Granite and Marble Cutting Machine. Model: 450J. Explore the possibilities of waterjet cutting technology.
TECHNICAL DATA FOR HKNC-450J | ||
Diameter of saw blade | ø350-ø450 | mm |
Dimension of working platform | 4150x2250 | mm |
X axis stroke | 3500 | mm |
Y axis stroke | 2000 | mm |
Z axis stroke | 500 | mm |
Max. cutting thickness | 100 | mm |
Max. lifting stroke | 320 | mm |
Power of saw blade motor | 26.4 | kw |
Power for abrasive waterjet | 37 | kw |
Max. operating water pressure | 450 | mpa |
Required pressure of inflow | 0.4 | mpa |
Water consumption | 11.4-16.7 | l/min |
Gross weight | 10000 | kg |
Dimensions (L x W x H) | 6000x3820x320 | mm |
Main Features of the Granite and Marble Cutting Machine:
1. 5-axis Saw: - Fully interpolated 5 axis bridge saw for precise cutting, drilling, milling, and engraving. - Automatic head rotation from 0° to 360° and blade tilting from 0° to 90° for efficient large production runs. - Cost-effective solution for complex curved surface processing.
2. 5-axis Waterjet: - Fully interpolated 5 axis waterjet with automatic head rotation from 0° to 360° and Abrasive Cutting Head tilting from 0° to 60°. - Perfect for precise inside-corner fabrication and mitered edge creation. - Equipped with KMT-H20 JET50 super-pressure pump and Siemens PLC and motor for reliable performance.
3. Italian CNC Esa system: - 5 axis linkage control for seamless operation. - Easy-to-use interface with a 19" color touch-screen for user convenience.
4. Gantry system and precision movements: - Y axis moved by a gantry system, ensuring a perfect square of the bridge. - State-of-the-art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks, guaranteeing absolute precision.
5. Versatile functionality: - CNC Sawjet & bridge saw capable of easy manual cuts and importing DXF (AutoCAD) files for more complex projects. - Working platform can tilt 85 degrees for easy slab loading. - Photo slab for nesting and avoiding defects. - Nesting manual/automatic feature optimizes slab surface usage. - RTCP tool point tracking function ensures precision machining.
1. Low investment: The granite and marble cutting machine requires a low initial investment, making it a cost-effective choice for businesses looking to enhance their stone cutting capabilities.
2. Double capability: This machine combines the advantages of a CNC bridge saw and a CNC waterjet, allowing users to enjoy the benefits of both technologies in one compact unit.
3. Small room occupied: The machine's compact design ensures that it occupies minimal space in your workshop, maximizing the available working area for other operations.
4. Increased cutting efficiency: With the ability to switch between a CNC saw for straight cuts and a precision waterjet for tight angles, the machine maximizes cutting time and efficiency. It can saw three times faster than conventional bridge saws, reducing costs and increasing overall capacity.
5. Versatile functionality: The 450J model of the granite and marble cutting machine offers versatile functionality, making it suitable for cutting various types of stone, including granite and marble. Its 5-axis capabilities enable precise and intricate cuts, ensuring high-quality results.
1. Waterjet Cutting Machine: Our granite and marble cutting machine, the 450J, is a highly efficient waterjet cutting machine specifically designed for precision cutting of stone slabs. With its 5-axis functionality, it ensures accurate and intricate cuts, making it ideal for shaping countertops, sinks, and other stone products.
2. 5 Axis Stone CNC Sawjet: Our machine combines the advantages of a CNC bridge saw and a CNC waterjet, allowing for straight cuts with the CNC saw and precision cuts at tight angles with the waterjet. This dual capability maximizes efficiency and speed, resulting in faster processing times and increased production capacity.
3. CNC Machine 5 Axis Granite: Our waterjet cutting machine is suitable for cutting a wide range of stone materials, including granite. Its versatility allows for efficient processing of different stone projects, adapting to the unique characteristics of each material.
4. CNC Marble Cutting Machine Price: Our granite and marble cutting machine offers a cost-effective solution for large-scale stone processing. With automatic head rotation and blade tilting capabilities, it efficiently handles complex curved surface processing, cutting, drilling, milling, and engraving tasks, reducing production costs while maintaining high-quality standards.
5. Vein Matching and Customization: Our machine offers optional features like vein matching, allowing for seamless pattern alignment and customization in stone projects. This feature adds further perfection and customization to the final product, meeting the demands of intricate stone detailing.
 |  |  |
