HKNC-650J
Hualong Machinery

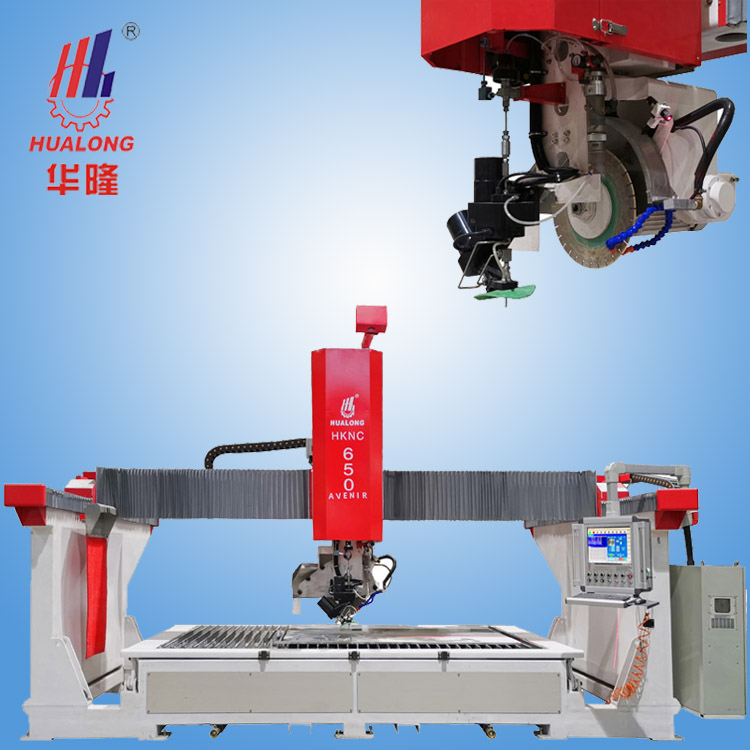

Here's the CNC Stone Machine - 650J, brought to you by Hualong Machinery. This top-of-the-line waterjet cutting machine, equipped with an Esa control system, is designed to make complicated machining jobs in the stone industry easy, perfect, and highly efficient. The machine features a touch screen interface for easy setting and automatic processing. The CNC Stone Machine - 650J is powered by YASKAWA digital servomotors, known for their reliability and precision. These servomotors, integrated with the Esa CNC system, provide excellent control over the X, Y, Z, C, and A axes. To ensure accurate cutting, the machine is equipped with a laser reticule apparatus, sourced from China, which aids in aligning the cut at the beginning of the processing. The high-quality electro-spindles, controlled by an inverter, allow for adjustable speeds ranging from 0 to 6000 rpm. This versatility enables the use of various tools such as blades and diamond tools, including core drills and milling cutters. The tool change is manual for ease of use. For exceptional precision and durability, the CNC Stone Machine - 650J incorporates Hiwin linear guides, renowned for their top quality. These guides are used on the crossbeam and carling, ensuring high precision cutting and a long lifespan. Experience the power and efficiency of the CNC Stone Machine - 650J, the ultimate solution for stone cutting and shaping. Explore its capabilities as a 5-axis stone cutting machine CNC, a CNC machine for stone and quartz, a 5-axis CNC stone milling machine, or a CNC stone sink cutting machine. Trust Hualong Machinery for all your stone machinery needs.
TECHNICAL DATA FOR HKNC-650J | ||
Diameter of saw blade | ø350-ø650 | mm |
Dimension of working platform | 410x220 | cm |
X axis stroke | 3500 | mm |
Y axis stroke | 2000 | mm |
Z axis stroke | 500 | mm |
Max. cutting thickness | 190 | mm |
Power of saw blade motor | 15 | kw |
Power for abrasive waterjet | 37 | kw |
Max. operating water pressure | 60,000 | psi |
Water pressure required | 35 | psi |
Water consumption | 11.4-16.7 | l/min |
Gross weight | 10000 | kg |
Dimensions (L x W x H) | 620x390x340 | cm |
Main Features of the CNC Stone Machine:
1. 5-axis Waterjet Cutting Machine: The CNC stone machine by Hualong Machinery is a fully interpolated 5-axis waterjet cutting machine. It offers precise cutting capabilities with automatic head rotation from 0° to 360° and automatic Abrasive Cutting Head tilting from 0° to 60°.
2. Versatile Functionality: This machine combines cutting, drilling, milling, and engraving functions into one seamless process. It is capable of implementing complex curved surface processing, making it ideal for a wide range of stone fabrication projects.
3. High Precision and Efficiency: The CNC stone machine features 5-axis linkage control with an Italian CNC Esa system, ensuring absolute precision in movements. The Y-axis is moved by a gantry system, guaranteeing a perfect square of the bridge. The machine is equipped with a state-of-the-art transmission on linear ball guides, driven by servo motors through high precision helical gears and racks, ensuring efficient and accurate operations.
4. Easy to Use Interface: With a 19" color touch-screen interface, the CNC stone machine offers an intuitive and user-friendly experience. It allows for easy operation and control, enhancing productivity and reducing training time.
5. Advanced Features and Optional Add-ons: The machine is equipped with a KMT-H20 JET50 super-pressure pump, Siemens PLC, and motor. It also offers features like tool point tracking function for precision machining, nesting capabilities for optimizing slab surface usage, and optional vein match for seamless color and vein matching at the seams of your project.
These features make the CNC stone machine a versatile and efficient tool for stone fabrication, suitable for large production runs while containing costs. Its advanced capabilities and user-friendly interface make it an ideal choice for professionals in the stone machinery industry.
1. Low investment: Our CNC stone machine offers a cost-effective solution for stone cutting, allowing you to save on initial investment while still enjoying advanced capabilities.
2. Double capability: With our CNC stone machine, you can benefit from both CNC bridge saw and CNC waterjet technologies, maximizing your cutting options and versatility.
3. Small room occupied: Our CNC stone machine is designed to occupy minimal space in your workshop, allowing you to optimize your floor layout and make the most efficient use of your available area.
4. Increased cutting speed: The powerful sawing station of our CNC stone machine enables three times faster cutting compared to conventional bridge saws. This not only reduces your production time but also helps to lower your costs and increase your overall capacity.
5. Precision cutting: By utilizing a CNC saw for straight cuts and a precision waterjet for tight angles, our CNC stone machine ensures precise and accurate cutting results. This level of precision is essential for achieving high-quality finished products.
Product Application: CNC Stone Machine
1. Bas-reliefs: Our CNC stone machine, model 650j, is ideal for creating intricate bas-reliefs on various stone surfaces. With its precise cutting capabilities, it can bring out the finest details in the designs.
2. Line engraving Cutting: The 650j CNC stone machine is equipped with advanced technology that allows for precise line engraving cutting on stone surfaces. This feature enables the creation of intricate patterns and designs with utmost accuracy.
3. Funeral tablets/gravestones: Our CNC stone machine is widely used in the production of funeral tablets and gravestones. Its high precision and efficiency ensure that these memorial stones are crafted with the utmost care and respect.
4. Milestones: The 650j CNC stone machine is also suitable for creating milestones. Whether it's for marking important historical events or personal achievements, our machine can accurately engrave the desired information on stone surfaces.
5. Commemorative plates: Our CNC stone machine is capable of producing commemorative plates with precision and efficiency. These plates can be used to honor individuals, organizations, or significant events, and our machine ensures that the engravings are of the highest quality.
6. Furniture, Fireplace: The 650j CNC stone machine can be utilized in the production of stone furniture and fireplace components. Its cutting and shaping capabilities allow for the creation of intricate designs and smooth finishes, enhancing the overall aesthetic appeal.
7. Countertops, Sink hole, grooving, shower trays: Our CNC stone machine is perfect for fabricating stone countertops, sink holes, grooving, and shower trays. Its precise cutting and shaping abilities ensure a perfect fit and seamless integration into any space.
With our CNC stone machine, Hualong Machinery provides a comprehensive solution for various stone applications. From bas-reliefs and line engraving cutting to funeral tablets and gravestones, our machine offers precise and efficient production capabilities. Additionally, it can be used for creating milestones, commemorative plates, stone furniture, fireplace components, countertops, sink holes, grooving, and shower trays. Trust Hualong Machinery for all your stone machinery needs.
