HLSD3-1525
Hualong Machinery

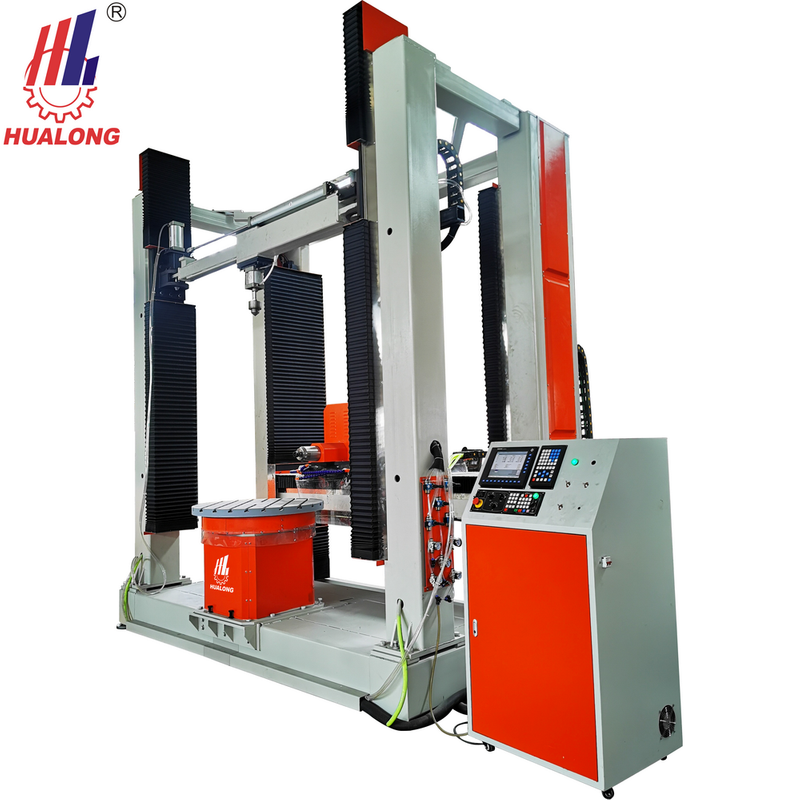

Here's the HLSD3-1525 Engraving Machine for Stone by Hualong Machinery. This CNC stone engraving machine is equipped with the advanced NC Studio control system, allowing for easy operation and a quick learning curve. With its breakpoint specific memory and power outage continued carving feature, you can work with peace of mind knowing that your progress will be saved. The water-cooling spindle, with customizable power options ranging from 3.5 to 5.5 kW, ensures high-speed and stable performance. Its frequency changing technology, combined with high-speed bearing, guarantees low noise, fast response, and a rotational speed range of 6000 to 24000 rpm/min. Taiwanese-made high-quality guide rails, ball screws, and racks on the X, Y, and Z axes provide smooth motion and precise control for superior engraving results. The auto lubricating system simplifies regular maintenance and reduces waste. Powered by Dorna servo motors, this machine offers fast speed, high precision, and shock resistance, ensuring accurate and reliable movement of the X and Y axes. The sturdy and durable chuck on the rotary table makes it easy to secure the working piece. With compatibility with Artcam JD paint software and other CAM software, this stone engraving machine is perfect for various applications, including stone tombstone engraving and marble engraving. Experience the excellence of the HLSD3-1525 Engraving Machine for Stone by Hualong Machinery. Keywords: Stone Engraving Machine, stone tombstone marble engraving machine, cnc stone engraving machine for sale, marble engraving machine stone.
TECHNICAL DATA | |||
Model No. | HLSD3-1020 | HLSD3-1525 | HLSD3-2030 |
Working platform size | 1500*2000mm | 1500*2500mm | 2000*3000mm |
Engraving height | ≤ 1500 mm（customizable） | ||
Spindle power | 7.5 kw (customizable) | ||
Spindle rotating speed | 6000-24000 rpm/min | ||
Saw power | 22 kw | ||
Max. power required | 25 kw | ||
Relief working | 30000 mm/min | ||
Diameter of engraving tool | ø1-16 mm | ||
Positioning precision | +/- 0.03 mm | ||
Repeat positioning accuracy | +/- 0.02 mm | ||
Command code | G code | ||
Driving system | Servo (customiable) | ||
Cooling system | Water cooling | ||
Dimensions (L x W x H) | 4500x3000x5000mm | ||
Main Features of the Stone Engraving Machine (Model: HLSD3-1525) by Hualong Machinery:
1. Adopt NcStudio CNC control system with a large color screen display, ensuring easy and simple operation.
2. Break to resume function allows the machine to continue carving from the break point after power resuming from failure, ensuring uninterrupted workflow.
3. Compatible with Artcam JD Paint CAM software and other software programs, providing flexibility and convenience in designing and carving stone tombstones, marble, and other materials.
4. High-performance new material motors and drivers are heat, shock, and environment resistant, ensuring high speed and accuracy in the engraving process.
5. Professional vector control inverter guarantees a variety of working speeds, ensuring smooth operation and lower power consumption.
6. Equipped with a big standing type rotary table, reinforced with a thicken PVC board, enhancing the loading capacity of the platform.
7. The steel tube lathe bed offers a low center of gravity, strong bearing capacity, and stable performance, ensuring a long working life.
1. Advanced CNC Control System: The NcStudio CNC control system with a large color screen display enhances efficiency and precision in stone engraving, making the HLSD3-1525 Stone Engraving Machine easy to learn and operate.
2. Breakpoint Specific Memory: The machine features a breakpoint specific memory function, allowing it to continue carving from the exact point where it left off in case of a power outage or interruption. This ensures minimal material wastage and seamless operation.
3. Compatibility with Software: The HLSD3-1525 Stone Engraving Machine is compatible with Artcam JD Paint CAM software and other CAM software programs, providing flexibility in design and programming options.
4. High-Performance Water-Cooled Spindle: With options for 3.5/4.5/5.5 kW power and a rotating speed range of 6000-24000 rpm/min, the water-cooling spindle incorporates high-speed bearing technology, resulting in low noise, rapid response, and long-term stability during operation.
5. Precision Motion Control: High-quality guide rails, ball screws, and racks sourced from Taiwan and China ensure smooth and precise motion control on all axes (X, Y, and Z), guaranteeing the quality and accuracy of engravings.
6. Auto Lubricating System: The automatic oil feeding and lubrication system simplifies regular maintenance, reducing downtime and maintenance costs for the HLSD3-1525 Stone Engraving Machine.
7. Robust Servo Motors: Equipped with heat and shock-resistant servo motors from Dorna, the HLSD3-1525 Stone Engraving Machine provides fast speeds, high precision, and shock resistance, ensuring precise movement along the X and Y axes.
8. Sturdy Rotary Table: The machine features a rotary platform with a durable chuck, facilitating the secure fastening of workpieces and expanding the range of applications for the HLSD3-1525 Stone Engraving Machine.
9. Stable and Durable Construction: The steel tube lathe bed provides a low center of gravity, strong bearing capacity, and stability, ensuring a long working life for the HLSD3-1525 Stone Engraving Machine.
10. Versatile Applications: The HLSD3-1525 Stone Engraving Machine is ideal for a wide range of applications, including stone Buddhas statues, church sculptures, stone balustrades, Roman columns, stone crafts, artwork, funeral tablets/tombstones, and milestones.
1. Versatile Engraving Capabilities: Our HLSD3-1525 engraving machine for stone is specifically designed to cater to a wide range of applications in the stone industry. With its advanced technology and precision, it is capable of engraving stone buddha statues, church sculptures, stone balustrades, Roman columns, colum cap & base, stone crafts, artwork, funeral tablets/tombstones, and milestones.
2. High-Quality Engravings: The HLSD3-1525 engraving machine ensures exceptional engraving results on various stone materials, including marble, granite, and other natural stones. Its powerful spindle and precise control system guarantee intricate and detailed engravings, capturing the finest details of the stone artwork.
3. Efficient and Time-Saving: Our stone engraving machine is equipped with advanced automation features, allowing for efficient and time-saving engraving processes. With its high-speed cutting capabilities and intelligent control system, it significantly reduces production time, increasing productivity for stone craftsmen and businesses.
4. User-Friendly Interface: The HLSD3-1525 engraving machine is designed with a user-friendly interface, making it easy for operators to navigate and control the machine. Its intuitive software enables users to import designs, adjust settings, and monitor the engraving process with ease, ensuring a seamless and hassle-free operation.
5. Customization and Personalization: Our engraving machine offers endless possibilities for customization and personalization. Whether it's creating unique tombstone designs, intricate artwork, or personalized milestones, the HLSD3-1525 provides the flexibility and precision required to bring any stone engraving project to life.
As a leading provider of stone machinery, Hualong Machinery is committed to delivering high-quality and reliable solutions for the stone industry. Our HLSD3-1525 engraving machine for stone is a testament to our dedication to innovation and customer satisfaction. Explore the endless possibilities of stone engraving with Hualong Machinery.
