HLSD-2030-2D
Hualong Machinery

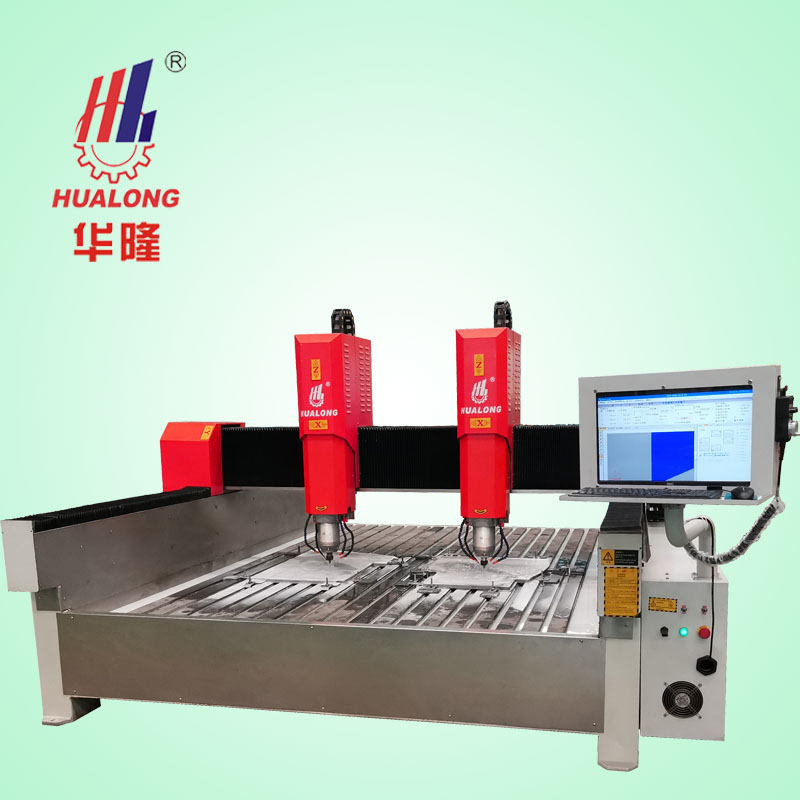

The CNC Engraving Machine Stone, model HLSD-2030-2D, offered by Hualong Machinery, is a high-quality and efficient solution for stone engraving. Equipped with the NcStudio control system, this machine ensures easy operation and maintenance with its keyboard operation and large screen display. The water-cooling spindle, with customizable power options ranging from 3.5 to 5.5 kW, features high-speed bearing technology, providing low noise, fast response, and high rotational speed for stable and long-lasting performance. The machine utilizes high-quality guide rails, ball screws, and racks from Taiwan, China, ensuring smooth motion and precise control for superior engraving results. With the option to customize the number of heads, the machine offers versatility and flexibility in stone engraving projects. The hand wheel allows for convenient remote or close control of the working heads, making it easy to position the original processing point. The CNC Engraving Machine Stone is the ideal choice for marble engraving, stone cutting, flat stone engraving, and even CNC concrete curb stone engraving projects.
TECHNICAL DATA | ||||
Model No. | HLSD1530-2 | HLSD1825-2 | HLSD-2030-2 | HLSD2520-2 |
Workbench dimension | 150*300cm | 180*250cm | 200*300cm | 250*200cm |
Number of working head | 2 pcs | |||
Gantry height | 450 mm | |||
Feeding height | ≤ 400 mm（customizable） | |||
Spindle power | 3.7 /4.5 / 5.5 kw (customizable) | |||
Spindle rotating speed | 6000-24000 rpm/min | |||
Max. moving speed | 30000 mm/min | |||
Diameter of engraving tool | ø1-16 mm | |||
Positioning precision | +/- 0.03 mm | |||
Repeat positioning accuracy | +/- 0.02 mm | |||
Command code | G code | |||
Driving system | Step / Hybrid servo / Servo (customiable) | |||
Cooling system | Water cooling | |||
Gross power | 15 kw | |||
Gross weight | 2200 kgs | |||
Dimensions (L x W x H) | 400x230x220cm | 520x230x220cm | ||
Main Features of the CNC Engraving Machine Stone (HLSD-2030-2D) by Hualong Machinery:
1. Adopt NcStudio CNC control system with a large color screen display, ensuring easy and simple operation.
2. Break to resume function allows for the continuation of carving from the break point after power resuming from failure.
3. Compatible with Artcam JD Paint CAM software and other software programs, providing versatility in design options.
4. High-performance new material motors and drivers that can resist heat, shock, and harsh environments, ensuring high speed and accuracy in the working process.
5. Professional vector control inverter guarantees a variety of working speeds, smooth operation, and lower power consumption.
6. Aircraft-quality surface oxidized aluminum profile table with a thicken PVC board, enhancing the loading capacity of the platform.
7. Steel tube lathe bed with a low center of gravity, strong bearing capacity, and stable and long working life.
Product Advantages:
1. Versatile CNC Control: The HLSD-2030-2D Stone Engraving Machine, equipped with an NcStudio CNC control system, ensures precision and flexibility in stone engraving tasks.
2. Resumption Capability: The "Break to Resume" function allows uninterrupted and efficient work processes by continuing carving from the point where it left off after a power interruption or failure.
3. Software Compatibility: Compatible with various software programs, including Artcam JD Paint CAM software, providing users with the freedom to choose the software that best suits their needs and expertise.
4. High-Performance Motors and Drivers: The machine's high-performance motors and drivers resist heat, shock, and harsh working environments, delivering reliable high-speed and accurate performance for top-notch results.
5. Energy Efficiency: The professional vector control inverter provides variable working speeds while reducing power consumption, making it an environmentally friendly choice.
6. Sturdy Construction: The aircraft-quality oxidized aluminum profile table with a reinforced PVC board enhances platform loading capacity, ensuring durability and stability.
7. Robust Lathe Bed: The steel tube lathe bed offers strong bearing capacity, stability, and an extended working life, essential for consistent and long-term performance.
8. Customizable Configuration: Machines with different quantities of working heads are available, allowing users to tailor the equipment to their specific needs and production requirements.
9. Precise Control: High-quality guide rails, ball screws, and racks on all axes (X, Y, and Z) ensure smooth and tight control, resulting in precise and high-quality engraving.
10. Convenient Operation: The addition of a handwheel for remote or close control of the working heads simplifies the positioning of the original processing point, enhancing overall convenience and efficiency. These are the main advantages of the HLSD-2030-2D Stone Engraving Machine offered by Hualong Machinery.
1. Bas-reliefs: The CNC engraving machine stone is ideal for creating intricate bas-reliefs on various types of stones, including marble and granite. With its precise cutting capabilities, it can bring out the finest details in the artwork.
2. Line engraving Cutting: Our stone engraving machine cutter is designed to perform precise line engraving cutting on stones. It can create intricate patterns and designs, adding a unique touch to stone surfaces.
3. Edge inversing: The CNC engraving machine stone is capable of edge inversing, allowing for the creation of beautiful and seamless edges on stones. This feature is particularly useful for creating countertops and fireplace surrounds.
4. Funeral tablets/gravestones: Our CNC engraving machine stone is widely used in the production of funeral tablets and gravestones. It can accurately engrave names, dates, and other personalized details, creating lasting memorials.
5. Milestones: The stone engraving machine cutter is also suitable for engraving milestones. Whether it's for marking distances on a road or commemorating important events, our machine can deliver precise and durable engravings.
6. Commemorative plates: Our CNC engraving machine stone is commonly used for creating commemorative plates. Whether it's for honoring individuals, organizations, or significant events, our machine can engrave detailed and long-lasting plaques.
7. Furniture, Fireplace: The CNC engraving machine stone can be used to create intricate designs on furniture and fireplace surrounds. It can add a touch of elegance and sophistication to these pieces, making them stand out.
8. Countertops, Sink hole, grooving, shower trays: Our stone engraving machine cutter is perfect for creating countertops with precise sink holes, grooving, and shower trays. It ensures a seamless fit and adds functionality to the overall design.
By using our HLSD-2030-2D CNC engraving machine stone, customers can achieve high-quality and precise stone engravings for a wide range of applications. Hualong Machinery is dedicated to providing reliable and efficient stone machinery solutions for various industries.
