HLCNC-3319
Hualong Machinery

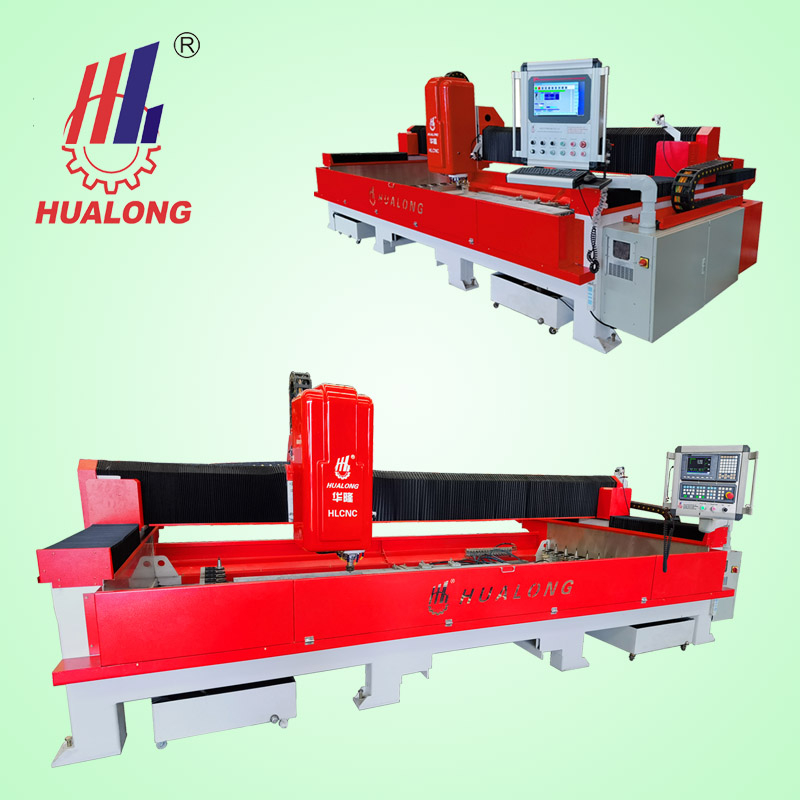

Here's the Stone Edge Profiling Router Machine, a high-quality stone shaping machine designed for precision and durability. Manufactured by Hualong Machinery, this machine is equipped with top-of-the-line electrical components such as Siemens and Schneider, ensuring stable performance and easy access for maintenance. The hand-wheel, wired to the control console, allows for direct control of movement speed and position, providing the operator with close proximity to the piece being machined. The machine features a laser reticule apparatus from China, aiding in calibrating the original working point. With the renowned Hiwin linear guide from Taiwan, the crossbeam and carling offer exceptional durability and performance. The transmission system utilizes high precision rack gear on the X and Y axis, and a ball screw on the Z axis. The self-lubrication system ensures easy maintenance and reduced waste. Additionally, the machine comes with a powerful 7.5kw vacuum pump for efficient stone suction. Ideal for stone edge profiling, grinding, and cutting, the Stone Edge Profiling Router Machine (Model: 3319) is the perfect solution for stone countertop fabrication.
TECHNICAL DATA | ||||
Model Number | HLCNC-3015 | HLCNC-3319 | HLCNC-1308 | |
Stroke (X-axis) | mm | 3040 | 3500 | 1340 |
Stroke (Y-axis) | mm | 1540 | 1950 | 840 |
Stroke (Z-axis) | mm | 320 | 320 | 320 |
Power of motor | kw | 7.5 | 7.5 | 7.5 |
Rotating speed | rpm | 0-8000 | 0-8000 | 0-24000 |
Tool holder model | BT | 40 | 40 | 40 |
Tool-store position | nr | 12 | 20 | 11 |
Workbench dimension | mm | 3000x1500 | 3300x1900 | 1300x800 |
Gross Weight | kg | 4000 | 5000 | 2500 |
Demension (L x W x H) | cm | 553x320x230 | ||
1.Powered by numerical control planning and interfaced with our CAD/CAM software, allowing for continuous and automatic calibration, milling, carving, honing, and polishing of slabs in one go.
2. Equipped with a bilateral tools-store with 20 stations for automatic tool change, ensuring efficient and seamless operation.
3. The crossbeam and carling adopt Taiwan's Hiwin linear guide, guaranteeing high precision cutting and a long lifespan.
4. The X/Y axis is equipped with a dust collector, keeping the machine clean and prolonging its useful life.
5. Utilizes a 3-axis Yaskawa servo driver for high-speed, efficient, and fine cutting without serrated ripple, resulting in a smooth bottom plane and clear outline.
6. Features vacuum cups and an aluminum alloy lock to securely hold the working pieces, preventing any displacement.
7. Convenient USB interface for easy input and output of programs by the operator.
8. Operates at high speed with low noise, ensuring a productive and comfortable working environment.
9. Offers high efficiency and low processing cost, making it a cost-effective solution for stone shaping projects.
1.Versatile CNC Processing: Our stone edge profiling router machine, model 3319, is a highly versatile CNC stone shaping machine. It excels in contouring, cutting, and shaping stone slabs with its three interpolated axes, eliminating the need for multiple machines and increasing efficiency.
2. Automatic Tool Control: Powered by numerical control planning and seamless CAD/CAM software integration, our machine features automatic tools that enable continuous and automated operations such as calibration, milling, carving, honing, and polishing in a single pass.
3. Efficiency and Precision: Equipped with Yaskawa servo drivers, our machine delivers high-speed, fine cutting with no serrated ripple and a smooth bottom plane. The adoption of Taiwan's Hiwin linear guide ensures precision cutting and prolongs the machine's lifespan.
4. Ease of Maintenance: Our machine is designed for easy maintenance. It includes a self-lubrication system and high-quality electrical components from renowned brands like Siemens and Schneider, ensuring stable performance. The labeled wiring in the electrical cabinet allows for easy access during servicing.
5. Secure Workholding: With vacuum cups and aluminum alloy locks, our machine securely holds workpieces in place, preventing even minor displacements during processing.
6. User-Friendly Interface: Our machine is equipped with a convenient USB interface, allowing operators to easily input and output programs, enhancing ease of use.
7. Low Noise and High Speed: Our machine is designed for high-speed operation with minimal noise, making it suitable for various work environments.
8. Cost Efficiency: Our stone edge profiling router machine offers high efficiency, reducing processing costs in the long run. By Hualong Machinery.
1.Countertop Production: The stone edge profiling router machine (model 3319) by Hualong Machinery is specifically designed for processing stone slabs into kitchen countertops, bathroom countertops, cabinet countertops, and other surface applications. Its precision and versatility ensure accurate and intricate stone cutting and shaping for a perfect fit and finish.
2. Architectural Details: With the stone edge profiling router machine, architects and designers can effortlessly create intricate architectural details such as relief engravings, stone background wall reliefs, and European-style edging. The machine's advanced technology allows for precise and detailed stone shaping, adding a touch of elegance to any architectural project.
3. Furniture and Decor: Hualong's stone edge profiling router machine is also ideal for shaping stone for use in furniture, including tables and windowsills. Its high-performance capabilities enable the creation of decorative elements like door sets and bar counters, adding a luxurious and sophisticated touch to interior design.
4. Industrial Precision: The stone edge profiling router machine is widely used in industrial applications that require intricate stone cutting and shaping. Its advanced features and precision make it suitable for industrial projects that demand high-quality and accurate stone processing. Whether it's for industrial countertops, specialized stone products, or custom designs, this machine ensures exceptional results.
5. Versatility and Efficiency: The stone edge profiling router machine (model 3319) offers exceptional versatility and efficiency in stone shaping. It can handle various types of stone, including marble, granite, and more, making it suitable for a wide range of applications. Its advanced CNC technology allows for automated and precise stone profiling, reducing labor costs and increasing productivity.
By incorporating Hualong Machinery's stone edge profiling router machine into your stone processing operations, you can achieve superior results in countertop production, architectural details, furniture and decor, and industrial precision. Its versatility, efficiency, and advanced technology make it an essential tool for professionals in the stone machinery industry.
