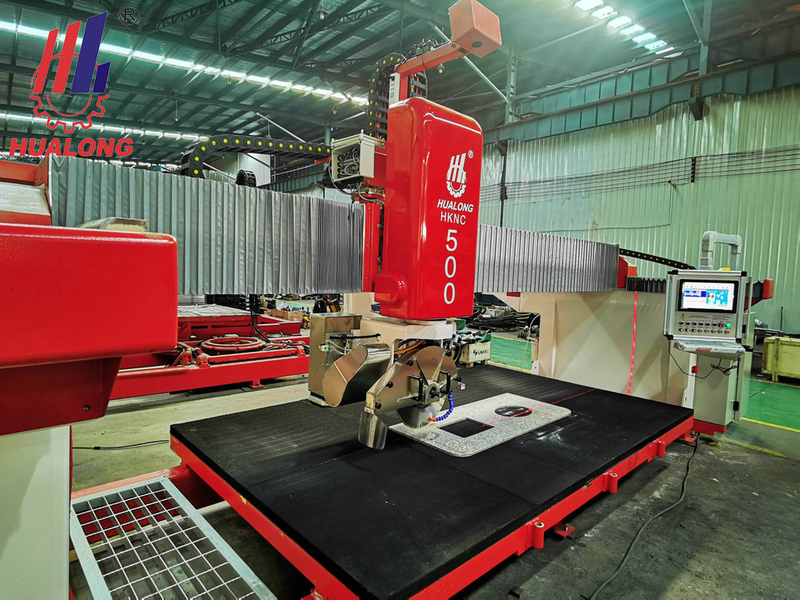

HKNC-500
The HKNC-500 from Hualong Machinery is a versatile and efficient CNC stone cutting and shaping machine, perfect for handling both natural and synthetic stone, as well as ceramic materials. Its advanced design offers a range of cutting capabilities, making it ideal for various applications in stone processing.
1.4-Axis Interpolation & 1-Axis Electronic Control: Features Italian ESA CNC system for precision in stone cutting.
2.User-Friendly Interface: Equipped with a 19" color touch-screen for ease of operation and monitoring.
3.Flexible Blade Movement: Blade rotation and tilt capabilities (0°-360° rotation, 90° tilt) for versatile cutting directions and angles.
4.Tilting Working Platform: Can tilt up to 85 degrees, simplifying slab loading.
5.Monoblock Structure: Designed for easy container transportation, loading, and installation.
6.Multiple Cutting Modes: Offers both manual and automatic cutting, including nesting features to optimize material usage.
1.Versatile Cutting Capabilities: Includes vertical, inclined, and horizontal cuts, contour cutting, sink cutting, profiling, and engraving.
2.Optional Accessories: Vacuum manipulator for efficient handling, photo slab system for defect avoidance, and vein matching system for seamless seam alignment.
1.Saw Blade Diameter: ø400-ø500 mm
2.Working Platform Dimensions: 3300x2000 mm
3.Max Cutting Length: 3300 mm
4.Max Cutting Thickness: 140 mm
5.Max Lifting Stroke: 250 mm
6.Max Lifting Weight by Suction Cups: 200 kg
7.Power Specifications: Main motor (11 kW), Cutter frame reciprocating motor (2 kW), Crossbeam shifting motor (1.1 kW), Hydraulic station motor (2.2 kW), Lifting motor (0.85 kW)
8.Overall Power Consumption: 16 kW
9.Water Consumption: 2 m³/h
10.Machine Weight: 5400 kg
11.Dimensions (LxWxH): 5700x3260x2765 mm
Suitable for creating 2D decorative wall panels, countertops, doorsteps, staircases, thresholds, fireplace surrounds, stone flooring, funerary art, street furniture, and ventilated facades.
1.Precision and Efficiency: Powered by digital servomotors and high-quality components for precise cutting.
2.Longevity: Durable design with components from trusted brands like ESA, Schneider, and Hiwin.
3.Cost-Effective: Provides high-value features at a competitive price, ensuring a strong return on investment.
4.Comprehensive Support: Hualong Machinery offers extensive expertise and support, including installation, training, and after-sales service.
The HKNC-500 Slab Cutting Machine represents a state-of-the-art solution for stone processing businesses, offering unparalleled precision, efficiency, and versatility. Its advanced features and robust construction make it a valuable asset for a wide range of stone cutting and shaping applications.
Q.What types of materials can the HKNC-500 Slab Cutting Machine process?
A:The HKNC-500 is designed to cut and shape a variety of materials, including natural stone like marble and granite, synthetic stone, and ceramics. Its versatility makes it suitable for various applications in stone processing and fabrication.
Q.How user-friendly is the HKNC-500, and what kind of interface does it have?
A.The machine is equipped with a user-friendly 19" color touch-screen interface, making it easy to operate and monitor. The Italian ESA CNC system ensures precision in stone cutting and offers intuitive navigation, even for operators with limited experience.
Q.Can the HKNC-500 perform complex cutting patterns, like contours and engraving?
A.Yes, the HKNC-500 is capable of performing a wide range of cutting patterns, including vertical, inclined, and horizontal cuts, contour cutting, sink cutting, profiling, and engraving. Its 4-axis interpolation and 1-axis electronic control allow for complex and detailed designs.
Q.What are the maintenance requirements for the HKNC-500?
A.Regular maintenance is crucial to keep the HKNC-500 in optimal condition. This includes routine checks of the mechanical parts, ensuring the cleanliness of the water circuits, and replacing consumable parts like the saw blade when necessary. Hualong Machinery provides detailed maintenance guidelines and support to help users maintain the machine.
Q.What kind of after-sales support does Hualong Machinery offer for the HKNC-500?
A.Hualong Machinery offers comprehensive after-sales support, including installation, training for operators, and troubleshooting. They also provide ongoing technical assistance and have a responsive customer service team to address any queries or issues that may arise during the machine's operation.
