HKNC-500

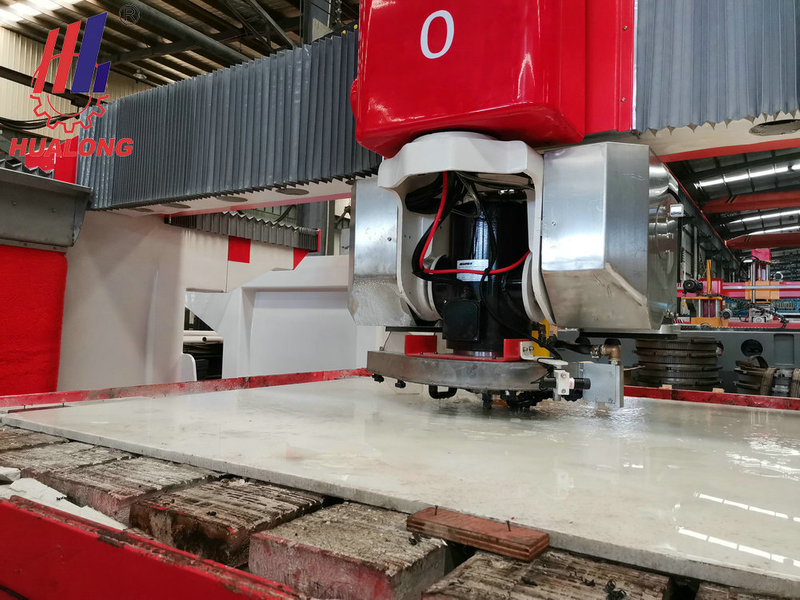

Here's the HKNC-500, a top-of-the-line 5-axis CNC milling machine by Hualong Machinery. This advanced slab cutting machine is equipped with an ESA control system, featuring a user-friendly touch screen for easy setup and automatic processing. Made in Italy, the CNC system ensures precise and efficient machining, making even the most complicated jobs effortless. The machine is powered by ESA's digital servomotors, providing reliable control for the X, Y, Z, and C axes. To ensure accuracy, a laser reticule apparatus from China is included for checking and calibrating the cut alignment at the start of processing. The machine also features high-quality electro-spindles with adjustable speed, allowing the use of various tools. With Hiwin linear guides from Taiwan, China, this machine guarantees high precision cutting and a long lifespan. Experience the excellence of Hualong Machinery's 5-axis CNC milling machine, the ultimate solution for all your stone cutting needs.
TECHNICAL DATA FOR HKNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Max. lifting weight by sunction cups | 200 | kg |
Power of main motor | 11 | kw |
Power of cutter frame reciproctating motor | 2 | kw |
Power of crossbeam shifting motor | 1.1 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 0.85 | kw |
Gross power | 16 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 5700x3260x2765 | mm |
Main Features of the HKNC-500 5 Axis CNC Milling Machine:
1. 4 axis interpolation and 1 axis electronic control with Italian CNC Esa system for precise and efficient slab cutting.
2. User-friendly interface with a 19" color touch-screen for easy operation and monitoring of the machine.
3. Versatile blade rotation capability of 0°-360° and tilt of 90° allows for chamfering cutting in any direction and at any angle.
4. The working platform can tilt up to 85 degrees, making it convenient for loading slabs onto the machine.
5. Monoblock structure with a size suitable for container transportation, ensuring easy loading, unloading, and installation.
6. Manual cutting option available for simple machining tasks.
7. Nesting feature, both manual and automatic, to optimize the usage of slab surfaces.
8. Optional vacuum manipulator for efficient handling of workpieces.
9. Optional photo slab feature for nesting and avoiding defects in the slabs.
10. Optional vein match capability for seamless matching of veins and colors at the seams of your project.
1. Versatile Cutting Capabilities: The 5 axis CNC milling machine, HKNC-500, offers a wide range of cutting capabilities, including vertical, inclined, and horizontal cuts, as well as contour cutting. It can even perform intricate tasks like sink cutting, profiling, and engraving, making it suitable for various stone and ceramic applications
. 2. Advanced CNC System: Equipped with the Italian ESA CNC system, this machine provides precise and efficient control, ensuring high-quality cuts and shapes. The user-friendly 19-inch color touch screen simplifies setup and operation.
3. Flexible Blade Manipulation: The HKNC-500's blade can rotate 360 degrees and tilt 90 degrees, allowing for chamfering cuts in any direction and at any angle. This flexibility is crucial for achieving intricate designs and precise cuts.
4. Easy Loading and Unloading: The machine's design, with an 85-degree tilting working platform and a monoblock structure suitable for container transportation, makes it easy to load, unload, and install slabs, enhancing overall efficiency.
5. Manual and Automatic Functions: The HKNC-500 offers both manual and automatic cutting modes, accommodating simple machining tasks as well as more complex automated operations, such as nesting to optimize material usage.
6. Optional Accessories: Users can enhance the machine's functionality with optional features like a vacuum manipulator for efficient workpiece handling, a photo slab system for defect avoidance, and a vein matching system for seamless seam alignment.
7. Wide Range of Applications: This 5 axis CNC milling machine is suitable for various applications, including 2D decorative wall panels, countertops, staircases, fireplaces, flooring, funerary art, street furniture, and ventilated facades, making it versatile for different project needs.
8. High-Quality Components: The machine incorporates top-quality components, such as digital servomotors, a laser reticule apparatus for precise alignment, high-quality electric spindles, and linear guides from reputable brands like ESA, Hiwin, and more.
9. Reliable Performance: With components from trusted brands and stable electric components, the HKNC-500 ensures consistent and reliable performance over time, reducing downtime and maintenance costs.
10. Precision and Longevity: The use of digital servomotors and high-quality linear guides ensures high precision in cutting and a long lifespan for the machine, making it a cost-effective investment for stone processing businesses.
1. 5 axis cnc milling machine: Our 5 axis cnc milling machine, model HKNC-500, is specifically designed for slab cutting in the stone industry. It offers precise and efficient cutting of stone slabs, making it an ideal choice for various applications.
2. Decorative wall panels: Our 5 axis cnc milling machine can be used to create intricate designs on 2D decorative wall panels. With its advanced technology and precision cutting capabilities, it allows for the production of stunning and unique wall panels that enhance the aesthetic appeal of any space.
3. Countertops: The 5 axis cnc milling machine is perfect for cutting stone slabs into precise shapes and sizes required for countertops. It ensures smooth and accurate cuts, resulting in high-quality countertops that meet the demands of both residential and commercial projects.
4. Doorsteps, staircases, and thresholds: Our machine is capable of cutting stone slabs into customized shapes for doorsteps, staircases, and thresholds. It enables the creation of seamless and visually appealing stone elements that add elegance and functionality to any architectural design.
5. Fireplaces: The 5 axis cnc milling machine can be used to cut stone slabs into intricate patterns and designs for fireplaces. It allows for the precise shaping and detailing of stone, resulting in visually stunning and durable fireplaces that become the focal point of any living space.
6. Flooring: Our machine is suitable for cutting stone slabs into various sizes and shapes for flooring applications. It ensures precise and uniform cuts, enabling the creation of beautiful and durable stone floors that enhance the overall aesthetics of residential and commercial buildings.
7. Funerary art: The 5 axis cnc milling machine is capable of creating intricate and personalized designs on stone slabs for funerary art. It allows for the precise engraving and carving of memorial stones, tombstones, and other commemorative pieces, ensuring a lasting tribute to loved ones.
8. Street furniture: Our machine can be used to cut stone slabs into customized shapes for street furniture such as benches, fountains, and sculptures. It enables the creation of visually appealing and durable street furniture that withstands outdoor elements and enhances public spaces.
9. Ventilated facades: The 5 axis cnc milling machine is suitable for cutting stone slabs into precise shapes and sizes required for ventilated facades. It allows for the creation of ventilated facade systems that provide both aesthetic appeal and functional benefits, such as improved insulation and energy efficiency.
