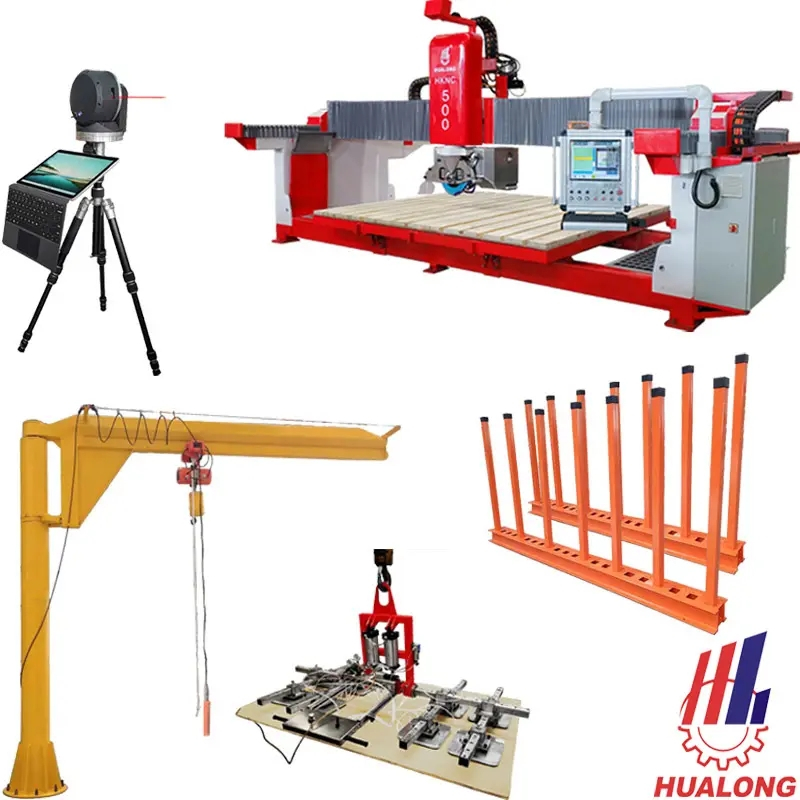

HKNC-500
The HKNC-500, a 5 axis CNC marble machine, is a top-of-the-line slab cutting machine designed and manufactured by Hualong Machinery. This advanced CNC system, branded as ESA and originating from Italy, features a user-friendly touch screen interface for easy setting and automatic processing. With its digital servomotor, also from ESA, precision control of the X, Y, Z, and C axes is achieved, ensuring perfect and efficient machining results. To aid in the alignment of the cut at the beginning of processing, the machine is equipped with a laser reticule apparatus from China. This laser checking and calibration instrument enhances accuracy and efficiency. The HKNC-500 also boasts high-quality electro-spindles controlled by an inverter, allowing for adjustable revolutions ranging from 0 to 6000 rpm. This flexibility enables the use of various tools such as blades and diamond tools, including core drills and milling cutters. The machine's stability and performance are further enhanced by the adoption of electric components from reputable brands such as ESA, Schneider, and Sanch. Additionally, the HKNC-500 incorporates Hiwin linear guides, renowned for their top quality and long lifespan. These guides are utilized on the crossbeam and carling, ensuring high precision cutting.
In summary, the 5 axis CNC marble machine, HKNC-500, offered by Hualong Machinery, is a state-of-the-art solution for the stone industry. Its advanced features, including the touch screen CNC system, digital servomotor, laser reticule apparatus, electro-spindles, electric cabinet, and Hiwin linear guides, guarantee exceptional performance, efficiency, and longevity. Experience the seamless precision and ease of use provided by this automatic bridge saw, ideal for granite and other stone cutting applications.
TECHNICAL DATA FOR HKNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Max. lifting weight by sunction cups | 200 | kg |
Power of main motor | 11 | kw |
Power of cutter frame reciproctating motor | 2 | kw |
Power of crossbeam shifting motor | 1.1 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 0.85 | kw |
Gross power | 16 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 5700x3260x2765 | mm |
Main Features of the 5 Axis CNC Marble Machine (HKNC-500) by Hualong Machinery:
1. 4 axis interpolation and 1 axis electronic control with Italian CNC Esa system for precise and efficient operation.
2. Easy to use interface with a 19" color touch-screen, providing a user-friendly experience.
3. Versatile blade rotation and tilt capabilities, allowing for chamfering cutting in any direction and angle (0°-360° rotation and 90° tilt).
4. The working platform can tilt up to 85 degrees, facilitating easy loading of slabs for cutting.
5. Monoblock structure with a size suitable for container transportation, ensuring easy loading, unloading, and installation.
Additional Features:
- Manual cuts available for simple machining.
- Nesting function, both manual and automatic, to optimize slab surface usage. - Optional vacuum manipulator for efficient handling of workpieces.
- Optional photo slab feature for precise nesting and defect avoidance.
- Optional vein match capability for seamless matching of veins and colors at project seams.
Product Advantages of the 5 Axis CNC Marble Machine:
1. Versatile Cutting Capabilities: The HKNC-500 offers a wide range of cutting capabilities, including vertical, inclined, and horizontal cuts, as well as contour cutting. It can even perform intricate tasks like sink cutting, profiling, and engraving, making it suitable for various stone and ceramic applications.
2. Advanced CNC System: Equipped with the Italian ESA CNC system, this machine provides precise and efficient control, ensuring high-quality cuts and shapes. The user-friendly 19-inch color touch screen simplifies setup and operation.
3. Flexible Blade Manipulation: The machine's blade can rotate 360 degrees and tilt 90 degrees, allowing for chamfering cuts in any direction and at any angle. This flexibility is crucial for achieving intricate designs and precise cuts.
4. Easy Loading and Unloading: The machine's design, with an 85-degree tilting working platform and a monoblock structure suitable for container transportation, makes it easy to load, unload, and install slabs, enhancing overall efficiency.
5. Manual and Automatic Functions: The HKNC-500 offers both manual and automatic cutting modes, accommodating simple machining tasks as well as more complex automated operations, such as nesting to optimize material usage.
6. Optional Accessories: Users can enhance the machine's functionality with optional features like a vacuum manipulator for efficient workpiece handling, a photo slab system for defect avoidance, and a vein matching system for seamless seam alignment.
7. Wide Range of Applications: This machine is suitable for various applications, including 2D decorative wall panels, countertops, staircases, fireplaces, flooring, funerary art, street furniture, and ventilated facades, making it versatile for different project needs.
8. High-Quality Components: The machine incorporates top-quality components, such as digital servomotors, a laser reticule apparatus for precise alignment, high-quality electric spindles, and linear guides from reputable brands like ESA, Hiwin, and more.
9. Reliable Performance: With components from trusted brands and stable electric components, the machine ensures consistent and reliable performance over time, reducing downtime and maintenance costs.
10. Precision and Longevity: The use of digital servomotors and high-quality linear guides ensures high precision in cutting and a long lifespan for the machine, making it a cost-effective investment for stone processing businesses.
1. Slab Cutting: The 5 axis CNC marble machine (HKNC-500) is specifically designed for precise and efficient slab cutting. It can accurately cut stone slabs of various sizes and thicknesses, ensuring clean and smooth edges.
2. Decorative Wall Panels: With the 5 axis CNC marble machine, you can create intricate and beautiful 2D decorative wall panels from marble or other stone materials. The machine's advanced technology allows for precise and detailed carving, adding a touch of elegance to any interior space.
3. Countertops: The HKNC-500 is ideal for cutting stone slabs into customized countertops. Whether it's for kitchen countertops, bathroom vanities, or commercial spaces, this machine ensures precise and seamless cuts, resulting in stunning and durable surfaces.
4. Doorsteps, Staircases, and Thresholds: The 5 axis CNC marble machine enables precise cutting of stone materials to create doorsteps, staircases, and thresholds. Its ability to cut complex shapes and angles ensures a perfect fit and seamless integration into any architectural design.
5. Fireplaces: Create exquisite and unique fireplaces using the HKNC-500. This machine allows for precise cutting and shaping of stone materials, enabling the creation of intricate fireplace designs that enhance the aesthetic appeal of any living space.
6. Flooring: The 5 axis CNC marble machine is perfect for cutting stone slabs into flooring tiles. Its advanced technology ensures precise and consistent cuts, resulting in high-quality and visually appealing flooring solutions for residential and commercial applications.
7. Funerary Art: With the HKNC-500, you can create intricate and personalized funerary art pieces from stone materials. The machine's precision cutting capabilities allow for the creation of detailed and meaningful designs, honoring the memory of loved ones.
8. Street Furniture: The 5 axis CNC marble machine can be used to create durable and visually appealing street furniture, such as benches, fountains, and sculptures. Its ability to cut stone materials with precision and accuracy ensures the longevity and aesthetic appeal of these outdoor installations.
9. Ventilated Facades: The HKNC-500 is capable of cutting stone materials for ventilated facades, providing both functional and aesthetic benefits. The machine's precision cutting allows for the creation of customized panels that enhance the building's energy efficiency and architectural design.
10. Other Applications: In addition to the above-mentioned applications, the 5 axis CNC marble machine can be utilized for various other stone cutting projects, including monument production, art installations, and architectural elements.
 |  |  |
