5 Axis Bridge Saw

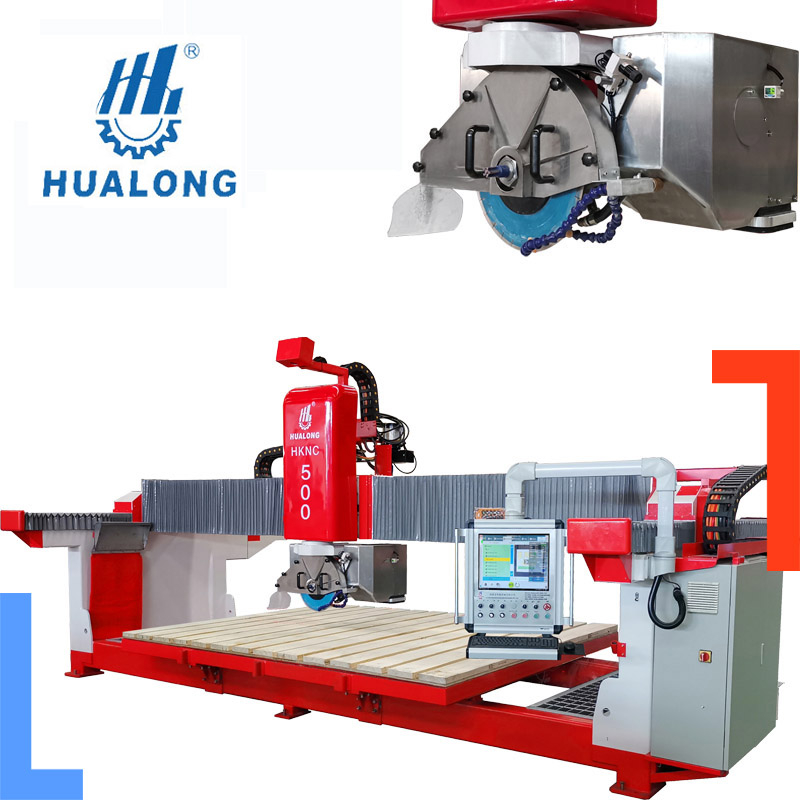

Here's the HKNC-500, a 5 axis bridge saw by Hualong Machinery. This state-of-the-art slab cutting machine combines simplicity and versatility, making it the ideal choice for workshops. With its 4 axis interpolation and 1 axis electronic control, it can effortlessly cut slabs and blocks of natural and synthetic stone, as well as ceramic. The HKNC-500 offers a range of functions, including vertical, inclined, and horizontal cuts with a disc blade, contour cutting for curves, and the ability to use core tools such as drills, end mills, and excavation wheels. Its incremental routing feature allows for sink cutting, profiling, and engraving. Equipped with an Italian ESA CNC system, digital servo motors, and CAD CAM drawing software, this machine ensures precise and efficient cuts. Additionally, the option to add a vacuum manipulator optimizes workpiece usage during the cutting process. Experience the power and precision of the HKNC-500, the ultimate 5 axis bridge saw for all your stone cutting needs.
  • HKNC-500

 5 Axis Bridge SawHere's the HKNC-500, a top-of-the-line 5 axis bridge saw by Hualong Machinery. This advanced slab cutting machine is equipped with a cutting-edge control system from Esa, an esteemed Italian brand, ensuring easy operation and efficient processing. The touch screen interface allows for seamless setting adjustments and automatic processing, making even the most complex machining jobs effortless and precise. The HKNC-500 features digital servomotors, also from Esa, providing reliable control over the X, Y, Z, and C axes. These permanent magnet brushless servomotors are designed for seamless integration with Esa's CNCs, guaranteeing optimal performance and accuracy. To aid in the alignment of cuts, the machine is equipped with a laser reticule apparatus, sourced from China. This calibration instrument ensures precise and accurate cutting from the very beginning of the processing. The high-quality electro-spindles, controlled by an inverter, allow for adjustable speeds ranging from 0 to 6000 rpm. This versatility enables the use of various tools, including blades and diamond tools like core drills or milling cutters. The tool change is manual, providing flexibility and ease of use. Hualong Machinery prioritizes stability and performance, which is why the electric cabinet incorporates components from renowned brands such as ESA, Schneider, and Sanch. For exceptional precision and durability, the HKNC-500 utilizes Hiwin linear guides, originating from Taiwan, China. These renowned products are employed on the crossbeam and carling, ensuring high precision cutting and a long lifespan. With the HKNC-500, Hualong Machinery offers a state-of-the-art 5 axis bridge saw, perfect for granite and marble cutting. Explore the possibilities of this CNC bridge saw for sale and experience the ultimate in stone cutting technology.

Technical Parameters


Diameter of saw blade



Dimension of working platform



Max. cutting length



Max. cutting thickness



Max. lifting stroke



Max. lifting weight by sunction cups



Power of main motor



Power of cutter frame reciproctating motor



Power of crossbeam shifting motor



Power of hydraulic station motor



Power of lifting motor



Gross power



Water consumption



Gross weight



Dimensions (L x W x H)



Main Features

Main Features of the HKNC-500 5 Axis Bridge Saw by Hualong Machinery:

 1. 4 axis interpolation and 1 axis electronic control with Italian CNC Esa system for precise and efficient slab cutting.

 2. Easy to use interface with a 19" color touch-screen, providing a user-friendly experience.

 3. The blade can rotate 0°-360° and tilt 90°, allowing for chamfering cutting in any direction and at any angle.

 4. The working platform can tilt up to 85 degrees, making it easy to load slabs onto the machine.

 5. Monoblock structure with a size suitable for containers, ensuring convenient loading, unloading, and installation.

5 axis granite marble bridge saw

Product Advantages

 1. Versatile Cutting Capabilities: The 5 axis bridge saw, HKNC-500, offers a wide range of cutting capabilities, including vertical, inclined, and horizontal cuts, as well as contour cutting. It can even perform intricate tasks like sink cutting, profiling, and engraving, making it suitable for various stone and ceramic applications.

 2. Advanced CNC System: Equipped with the Italian ESA CNC system, this 5 axis bridge saw provides precise and efficient control, ensuring high-quality cuts and shapes. The user-friendly 19-inch color touch screen simplifies setup and operation.

 3. Flexible Blade Manipulation: The HKNC-500's blade can rotate 360 degrees and tilt 90 degrees, allowing for chamfering cuts in any direction and at any angle. This flexibility is crucial for achieving intricate designs and precise cuts.

 4. Easy Loading and Unloading: The 5 axis bridge saw's design, with an 85-degree tilting working platform and a monoblock structure suitable for container transportation, makes it easy to load, unload, and install slabs, enhancing overall efficiency.

 5. Manual and Automatic Functions: The HKNC-500 offers both manual and automatic cutting modes, accommodating simple machining tasks as well as more complex automated operations, such as nesting to optimize material usage.

 6. Optional Accessories: Users can enhance the 5 axis bridge saw's functionality with optional features like a vacuum manipulator for efficient workpiece handling, a photo slab system for defect avoidance, and a vein matching system for seamless seam alignment.

 7. Wide Range of Applications: This 5 axis bridge saw is suitable for various applications, including 2D decorative wall panels, countertops, staircases, fireplaces, flooring, funerary art, street furniture, and ventilated facades, making it versatile for different project needs.

 8. High-Quality Components: The HKNC-500 incorporates top-quality components, such as digital servomotors, a laser reticule apparatus for precise alignment, high-quality electric spindles, and linear guides from reputable brands like ESA, Hiwin, and more.

 9. Reliable Performance: With components from trusted brands and stable electric components, the 5 axis bridge saw ensures consistent and reliable performance over time, reducing downtime and maintenance costs.

 10. Precision and Longevity: The use of digital servomotors and high-quality linear guides ensures high precision in cutting and a long lifespan for the machine, making it a cost-effective investment for stone processing businesses.granite bridge saw stone cutting machine bridge


stone sable cutting machine CNC Stone Processing Center CE certificate stone block cutting machine
