HLMW-42U
Hualong
|
Product Description

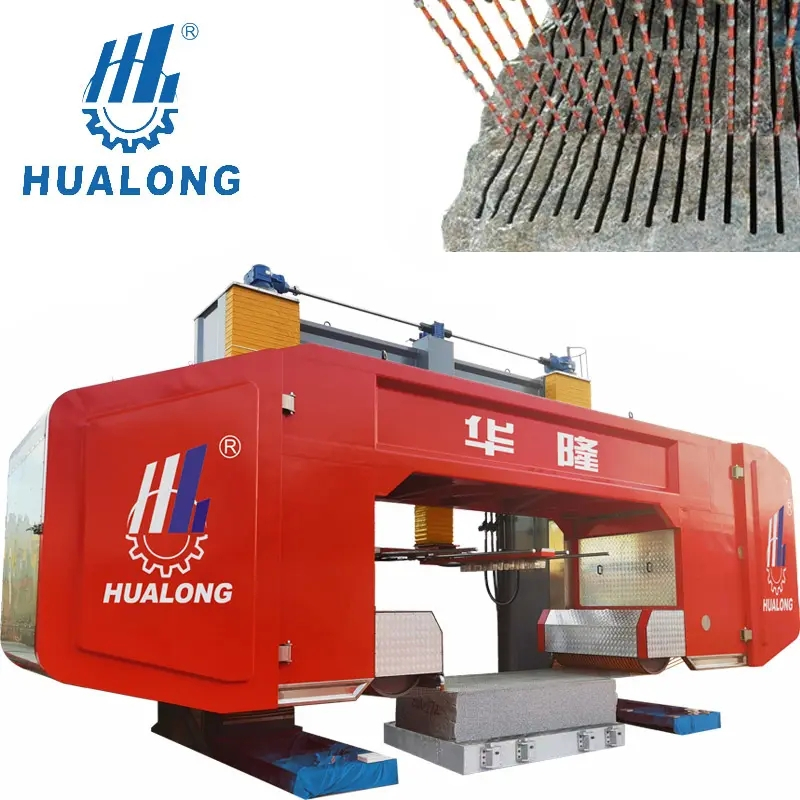

The HLMW-42U multi-wire saw machine is a diamond stone cutting machine developed and produced to improve the processing efficiency of granite, marble and artificial stone slabs. It is ideal for replacing marble gang saw machine. HLMW-42U has a wide range of specifications available for guests to choose from to meet the needs of stone enterprises processing large slabs of various sizes, also to a certain extent broadening the range of applications of this machine. The biggest advantage of this machine is the low cutting cost, low maintenance, easy installation and high cutting efficiency.
|
Technical Parameters
| Model No. | HLMW-21U | HLMW-36U | HLMW-42U | HLMW-58U | HLMW-72U |
| Max. Number of Wire (pcs) | 21 | 36 | 42 | 58 | 72 |
| Length of Wire (m) | 232 | 23 | 23 | 23 | 23 |
| Diameter of Wire (mm) | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 |
| Slab Thickness (mm) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| Max. Cutting Length (mm) | 3200 | 3200 | 3200 | 3200 | 3200 |
| Max. Cutting Height (mm) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max. Wire Tension (kgs) | 200/250 | 200/250 | 200/250 | 200/250 | 200/250 |
| Wire Speed (m/s) | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
| Main Motor (kw) | 95 | 132 | 160 | 250 | 280 |
| Water Consumption (L/min) | 500 | 800 | 1000 | 1800 | 2300 |
| Machine Length (mm) | 11000 | 11800 | 11800 | 11800 | 11800 |
| Machine Height (mm) | 5900 | 5900 | 5900 | 5900 | 5900 |
| Gross weight (kg) | 30000 | 35000 | 45000 | 50000 | 65000 |
|
Product Detail
* Sturdy construction
* Easy cutting
* Corrosion-resistance
* Quick and precise cutting
* Available for different size cutting of slab
* Perfect surface of the slabs
* Fast and easy wire change and positioning
* Relaible and with minimal operating costs
* Less water consumption and low cutting noise
|
Product Video
Diamond Wire Saw Machine For Cutting Quarry Stone.
|
FAQ
1. Can this machine be used in different regions or temperatures around the world?
A: This product is highly adaptable and can be used in different temperatures, for example: we have customers in Canada, Russia, Australia etc.
2.Are there any major safety precautions to be taken when operating this product?
A: I will provide you with a safety manual for operating this product at the time of delivery, please follow the safety manual strictly to operate the machine.
3. Do you have a quality certificate for the product in question?
A: Yes, we have obtained the relevant product quality certification for our products. The relevant product certification documents can be provided upon your request.
4. What is the shipping method for this product? Sea freight? Rail transport?
A: In view of the high weight of stone machinery products and the expensive freight costs, we usually choose sea freight to save freight costs.
5. Can your company provide me with packaging options and customisation?
A: There are many details involved in packaging options and customisation, please contact our customer service to discuss the details.
|
Company Profile
Hualong Stone Machinery Co., Ltd. is an independent professional manufacturer engaged in research and development of stone machinery equipment. It is a modern technology-based enterprise integrating R&D, design, manufacturing, provision of mechanical technical services and marketing. The main products of Hualong Company include: diamond wire saw cutting machine, fully automatic stone cutting machine, marble and granite edge polishing machine and other stone machinery related mining and processing equipment. These related stone machinery and equipment are widely used in the production lines of the stone processing industry at home and abroad. Hualong Company has always insisted on product quality, customizing reasonable prices, and providing perfect services, which has won the trust and praise of users. Hualong brand products are exported to more than 150 countries and regions in the world, such as Europe, America, East Asia, and the Middle East. And formed a very complete sales and service network at home and abroad. Strive to serve every guest well. To provide every customer with the highest quality products and services.
|
Certifications
Full Automatic CNC Stone Processing Center
CNC Bridge Stone Cutting And Milling Machine
Multi-Blade Stone Cutting Machine
Full Automatic Bridge Stone Cutting Machine
|
Product Packaging
|
