HLMW-21/36/42/58U
HUALONG
|
Product Description

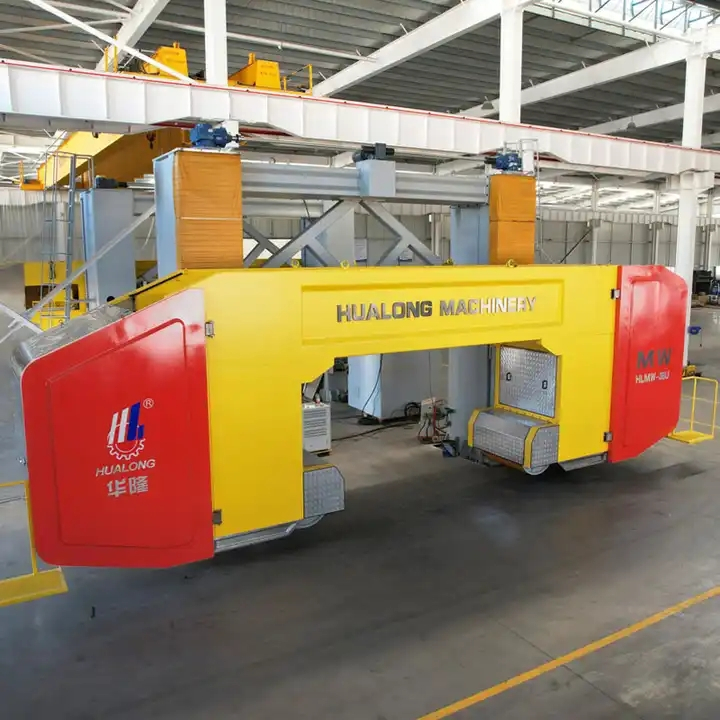

The HLMW multi wire saw diamond cutting machine is an efficient, easy to operate machine with high cutting speeds. It is designed with a robust construction, which gives it the durability and stability to perform well even in mass production and high intensity operation. It also has excellent corrosion resistance, enabling it to maintain excellent performance in a wide range of harsh environments.
Designed and manufactured using high technology, the HLMW Multi wire saw machine can be configured to cut block in a variety of sizes to meet the needs of different slab sizes. Its fast cutting speed, high cutting accuracy and flat, perfect cutting surface make the process more convenient and efficient. In addition, because of its simple operation and automated operation, it has extremely low processing costs, which can effectively save production costs.
The HLMW multi wire saw block cutting machine not only offers high cutting efficiency, but also low water consumption and low cutting noise. Its precise cutting results reduce scrap and defective rates, making the whole production process more reliable and environmentally friendly.
In short, if you want a cutting machine that is efficient, stable and easy to operate, then the HLMW Multi Wire Cutting Machine is the right choice for you. It can help you save time, shorten production cycles, improve productivity and reduce costs, making it a must-have for stone fabricators and home improvement companies of all kinds.
Super stable structure of HUALONG multi wire saw same as Italy Pedrini
|
Technical Parameters
| Model No. | HLMW-21U | HLMW-36U | HLMW-42U | HLMW-58U | HLMW-72U |
| Max. Number of Wire (pcs) | 21 | 36 | 42 | 58 | 72 |
| Length of Wire (m) | 23 | 23 | 23 | 23 | 23 |
| Diameter of Wire (mm) | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 |
| Slab Thickness (mm) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| Max. Cutting Length (mm) | 3200 | 3200 | 3200 | 3200 | 3200 |
| Max. Cutting Height (mm) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max. Wire Tension (kgs) | 200/250 | 200/250 | 200/250 | 200/250 | 200/250 |
| Wire Speed (m/s) | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
| Main Motor (kw) | 95 | 132 | 160 | 250 | 280 |
| Water Consumption (L/min) | 500 | 800 | 1000 | 1800 | 2300 |
| Machine Length (mm) | 11000 | 11800 | 11800 | 11800 | 11800 |
| Machine Height (mm) | 5900 | 5900 | 5900 | 5900 | 5900 |
| Gross weight (kg) | 30000 | 35000 | 45000 | 50000 | 65000 |
|
Main Feature
* Sturdy construction
*Easy to cut
* Corrosion resistance
* Fast cutting speed and high cutting precision
* Machines of different specifications can cut slabs of different sizes
* Slab cutting surface is flat and perfect
* Simple operation, automatic operation of processing process, low processing cost
* Low water consumption and low cutting noise
| Product Detail
 |  |  |
 |  |  |
|
Product Video
* Colour can be customized
* 10, 21, 36, 42, 58, 72, 80, 82, 84 or 86 wires can be customized
|
Company Profile
Hualong Stone Machinery Company is a leading technology manufacturer of stone machinery, providing high quality, efficient and high performance machinery and equipment to the stone processing industry worldwide. We are committed to developing and producing a wide range of stone machinery, including stone cutting machines and processing centres, to meet the needs and requirements of different customers.
We have an excellent technical team that focuses on research and development in the field of machinery. We adopt the latest CNC technology and automation technology to continuously improve the efficiency and precision of our machines. We also provide our customers with a comprehensive after-sales service to ensure smooth operation and maintenance during use.
Our products are used in a wide range of stone processing applications, such as marble, granite, artificial stone, quartzite and many more. With their outstanding performance and reliability, they have won the trust and praise of our customers. Our equipment has been installed all over the world, serving customers all over the world.
Our goal is to continuously improve the quality of our products and technological innovation to provide the best service to our customers. We believe that if we are able to work closely with our customers, we will be able to continuously upgrade and improve our products and become a trusted manufacturer of stone machinery.
If you have any stone processing equipment needs or questions, please feel free to contact us. We look forward to working with you and becoming your reliable partner in the stone sector.
|
Certifications
 |  |  |
|
Product Packaging
 |  |  |
|  |  |
|
