Stone Quarry Machine

Name: Stone Quarry Machine
Brand: Hualong Machinery
Rating: 5.0 (49 reviews)

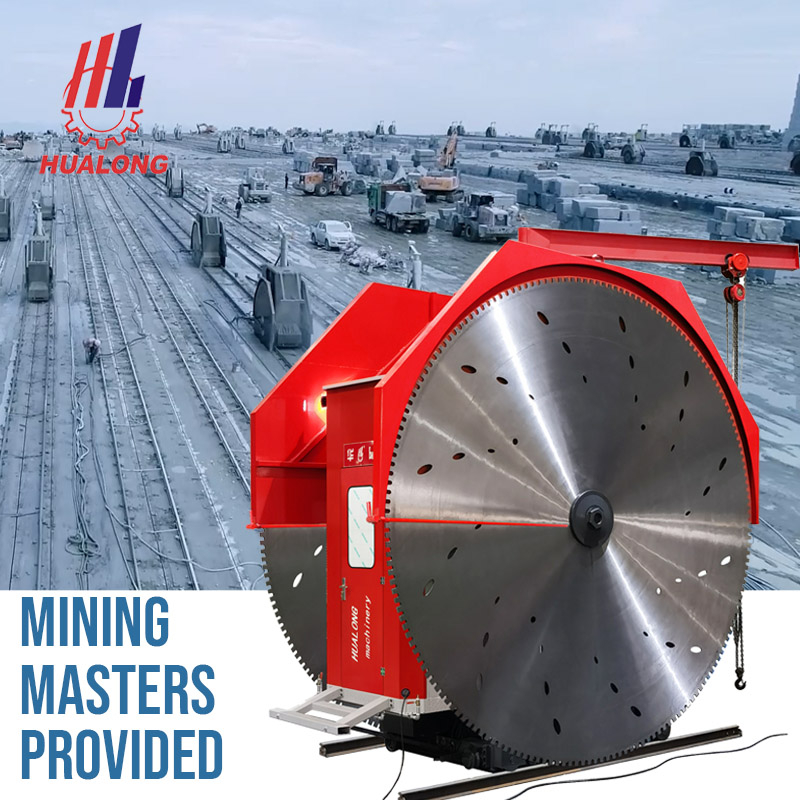

Here's the 2QYKZ series Quarry Stone Cutting Machine, a cutting-edge innovation in the stone machinery industry. Developed by Hualong Machinery, this powerful machine is equipped with double main permanent magnet motors regulated by frequency converters, ensuring optimal performance and efficiency. With its dual big blades and 4 shaft transmission, it is specifically designed for mining granite at quarries, while also being suitable for mining marble and quartz. As a leading player in the industry, Hualong Machinery presents the ultimate solution for all your stone quarrying needs. Our stone quarry machine, the 2QYKZ, offers unmatched precision and productivity. Whether you require a quarry square stone block cutting machine or are in search of a stone quarry cutting machine for sale, our product is the ideal choice. With its advanced features and superior functionality, including the double blade stone quarry machinery, our machine guarantees exceptional results. Experience the efficiency and reliability of Hualong Machinery's stone quarry machines for sale.

Availability:

Quantity:



Inquire Add to Basket

Model:
2QYKZ
Brand:
Hualong Machinery

Product Description

Here's the 2QYKZ Stone Quarry Machinery by Hualong Machinery. This innovative machine is designed to revolutionize the stone quarrying process, providing enhanced efficiency and productivity. With its unique 4 Shafts Drive Transmission, there is no need for a triangle belt. The through-drive ensures that the double blades run smoothly, steadily, and efficiently, resulting in optimal performance. The blade with Cut Hole design offers several advantages, including a reduction in dead weight, load, and power loss by approximately 40%. It also allows for convenient cooling water access, enhancing the cooling effect and sand discharge, while increasing resistance to deformation and extending the machine's lifespan. Equipped with a high-quality Power Connection & Operation Panel from renowned brands such as Siemens, Sunye, Sinee, and Rmspo, this machine ensures precise control and regulation of motor speed based on the hardness of the materials being cut. This feature significantly improves productivity. The main motors of this Stone Quarry Machinery are powered by CETL Permanent Magnet motors, known for their efficiency of 96%. These domestic famous engines, with a power of 66 kW and a high rated speed of 11000 rpm, offer a wide range of speed control and exceptional reliability. For added convenience, the machine can be equipped with an optional Touch Screen, which provides upgraded functions for automatic and steady cutting speed adjustment. This feature reduces mechanical impact load and wear, stabilizes saw cutting, and ultimately enhances mining efficiency.

In summary, the 2QYKZ Stone Quarry Machinery by Hualong Machinery is a cutting-edge solution for stone quarrying. Its advanced features, including the 4 Shafts Drive Transmission, Cut Hole design, Power Connection & Operation Panel, and optional Touch Screen, make it an ideal choice for those in search of high-performance stone quarry machines.

Technical Parameters

Technical Data for 2QYKZ-3300, 2QYK-2200
Model Number		2QYKZ-3300A	2QYKZ-3300B	2QYKZ-3300C	2QYKZ-3300D
Blade diameter	mm	3300	3300	3300	3300
Max.cutting depth	mm	1400	1400	1400	1400
Width of cutting	mm	1360-1860	1500-2000	2200-2700	2700-3200
Power of main motor	kw	66 x 2	66 x 2	66 x 2	66 x 2
Power of pump motor	kw	3.5	3.5	3.5	3.5
Power of stroke motor	kw	2.2	2.2	2.2	2.2
Power of railway switch motor	kw	0.75x2	0.75x2	0.75x2	0.75x2
Gross Power	kw	139.2	139.2	139.2	139.2
Gross weight	kg	7000-8500	7000-8500	7000-8500	7000-8500
Dimenssion (L x W x H)	cm	370x220x275	370x220x275	370x220x275	370x220x275
More Models	Max. cutting depth		Blade diameter	Main Motor	Remarks
2QYK-2200	950 mm		2200 mm	37kw x 2	w/ normal motor
2QYKF-3000	1250 mm		3000 mm	66kw x 2
2QYKF-3600	1550 mm		3600 mm	66kw x 2
2QYKZ-3800	1650 mm		3800 mm	66 kw x 2
2QYKZ-4200	1850 mm		4200 mm	66kw x 2

Main Features

1. Equipped with powerful permanent magnet motors with a high speed of 11,000 rpm and exceptional reliability.

2. The main motors' speed can be regulated by a frequency converter, allowing for adjustable cutting speeds based on the hardness of the stone being cut.

3. Productivity is improved by more than 10%, resulting in higher efficiency and output.

4. Energy-saving technology ensures a 10-15% reduction in energy consumption compared to the 2QYKT series.

5. Enhanced safety features and improved stability provide a secure working environment for operators.

Product Advantages

1. High speed: Our stone quarry machine can cut approximately 15 sqm/hour, surpassing the wire saw's cutting speed of about 10 sqm/hour.

2. Low consumption: With a cost of approximately USD1.00/sqm, our stone quarry machine is more cost-effective compared to wire saws, which can cost between USD1.5-2.3/sqm.

3. Quality Assurance: Our stone quarry machine is manufactured with over 25 years of expertise and patented technology, ensuring superior quality. It strictly conforms to the ISO9001:2105 quality management system.

4. On-purchase Service: We offer a wide range of machines to choose from, including the 2QYKZ model. Customization options are also available to meet specific requirements. Our experienced technicians are available to answer any questions.

5. After-sale Service: We provide quick supply of parts and accessories for any needs that may arise. Troubleshooting support is available through phone, e-mail, or messaging platforms like WhatsApp and Wechat. We also offer installation and operation training for all our machines, with qualified and experienced technicians available for overseas assistance.
