HSNC-500
Hualong Machinery

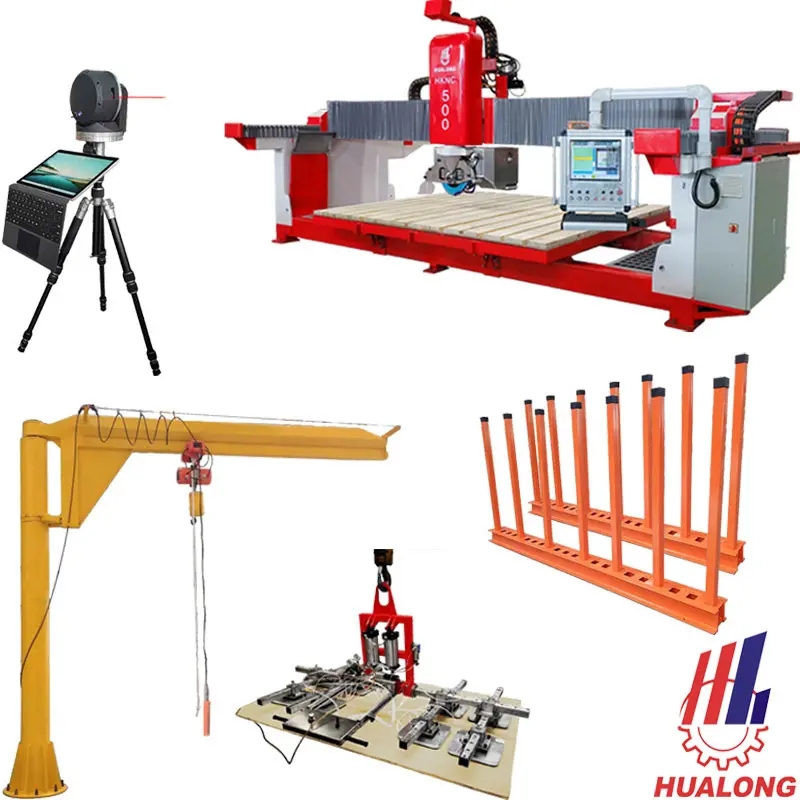

Here's the HSNC-500 Stone Profiling Machine by Hualong Machinery, a leading name in the stone machinery industry. This state-of-the-art machine is designed to shape and cut various types of stone with precision and efficiency. With its advanced features and components, it guarantees exceptional performance and reliability. Equipped with an Esa operating control system, this CNC machine from Italy offers a user-friendly touch screen interface for easy setup and automated processing. Additionally, the mechanical buttons allow for manual operation, ensuring convenience and flexibility. The digital servomotor, sourced from ESA in Italy, provides powerful and precise control over the X, Y, and Z axes, thanks to its integrated drives and permanent magnet brushless design. To ensure accurate cutting, the machine is equipped with a laser reticule apparatus from China, which aids in aligning the cut at the beginning of the processing. The high-quality electro-spindles, controlled by an inverter, allow for adjustable speeds ranging from 0 to 6000 rpm. This versatility enables the use of various tools such as blades and diamond tools for tasks like core drilling and milling. For superior cutting precision and durability, the HSNC-500 features Hiwin linear guides from Taiwan, China, known for their top quality and long lifespan. In summary, the HSNC-500 Stone Profiling Machine by Hualong Machinery is a cutting-edge solution for stone shaping and cutting needs. With its advanced technology, reliable components, and user-friendly interface, it is the perfect choice for professionals in the stone industry. Explore the possibilities of granite cutting, marble cutting, and more with this CNC stone center. Contact us now for pricing and further information.
TECHNICAL DATA FOR HKNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Max. lifting weight by sunction cups | 200 | kg |
Power of main motor | 11 | kw |
Power of cutter frame reciproctating motor | 2 | kw |
Power of crossbeam shifting motor | 1.1 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 0.85 | kw |
Gross power | 16 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 5700x3260x2765 | mm |
1. Controlled by Siemens PLC system for expedient, accurate, and stable operation.
2. One-button automatic vertical and horizontal cutting for enhanced efficiency.
3. Cutting head can rotate 0°-360° and position automatically, while the blade can tilt 0-90° and perform chamfering automatically.
4. Equipped with drilling and milling functions, making round sink processing faster and easier.
5. The working platform can rotate 0-360°, allowing positioning at any angle, and tilt 85° for convenient feeding. 6. Mono-block machine design facilitates container loading and machine installation.
Product Advantages:
1. Precision Control: The HSNC-500, a stone profiling machine by Hualong Machinery, is controlled by the Siemens PLC system, ensuring expedient, accurate, and stable operation. This guarantees precise stone cutting, meeting the demands of the stone shaping industry.
2. Efficient Operation: With its one-button automatic vertical and horizontal cutting feature, the HSNC-500 streamlines the cutting process for maximum efficiency. This saves time and effort, allowing for increased productivity in stone shaping tasks.
3. Versatile Cutting Options: The HSNC-500 offers a cutting head that can rotate 0°-360° and automatically position itself. Additionally, the blade can tilt 0-90° for chamfering. These versatile cutting options provide flexibility in shaping various types of stones, including granite and marble.
4. Additional Functions: Equipped with drilling and milling functions, the HSNC-500 enhances the machine's capabilities. This allows for faster and easier round sink processing, expanding the range of tasks that can be accomplished with this stone profiling machine.
5. Flexible Work Platform: The working platform of the HSNC-500 can rotate 0-360° and tilt up to 85°, providing easy feeding from various angles. This flexibility in positioning the stone ensures convenience and precision during the shaping process.
6. Compact Design: As a mono-block machine, the HSNC-500 is designed to be easily loaded into containers and installed. This compact design not only ensures convenience but also contributes to cost-effectiveness, making it an ideal choice for stone shaping businesses.
In summary, the HSNC-500 stone profiling machine by Hualong Machinery offers precision control, efficient operation, versatile cutting options, additional functions, a flexible work platform, and a compact design. With these advantages, it is a reliable and efficient choice for stone shaping tasks in the industry.
Stone Profiling Machine The HSNC-500 stone profiling machine, manufactured by Hualong Machinery, is a versatile and high-precision tool designed specifically for shaping and processing stone surfaces. With its advanced features and capabilities, this machine is ideal for a wide range of applications in the stone industry.
1. Stone Countertops: The HSNC-500 is especially suitable for processing stone countertops, including those with sinks. Its precision cutting and versatility in angle adjustments ensure that stone countertops are crafted with perfection.
2. Stone Slab Cutting: This machine can be used for cutting various types of stone slabs, such as granite, marble, quartzite, and artificial stone slabs, to the desired sizes. Its high-precision cutting capabilities guarantee accurate and clean cuts.
3. Relief Processing: The HSNC-500's capabilities extend to relief processing, allowing for intricate designs and patterns to be carved into stone surfaces. This feature enables the creation of stunning and unique stone artworks.
4. Drilling and Milling: With its drilling and milling functions, the HSNC-500 facilitates tasks like creating holes and fine detailing on stone surfaces. This capability enhances the versatility of the machine and enables precise customization of stone products.
5. Versatile Rotation: The ability to rotate the work platform at any angle (0-360°) enables the HSNC-500 to adapt to different cutting and processing requirements. This feature allows for complex and precise shaping of stone surfaces.
In summary, the HSNC-500 stone profiling machine from Hualong Machinery is a powerful and reliable tool for stone shaping and processing. Its advanced features, such as high-precision cutting, relief processing, drilling and milling functions, and versatile rotation, make it an essential machine for various applications in the stone industry.
