HSNC-500
Hualong Machinery
Here's the HSNC-500 stone edge profiling CNC machine by Hualong Machinery. This state-of-the-art equipment is designed for stone shaping and processing, making it an ideal choice for professionals in the stone machinery industry. With its advanced features and high-quality components, this machine ensures precise and efficient cutting. The HSNC-500 is equipped with an Esa operating control system, originating from Italy, which offers a user-friendly touch screen interface for easy setting and automatic processing.

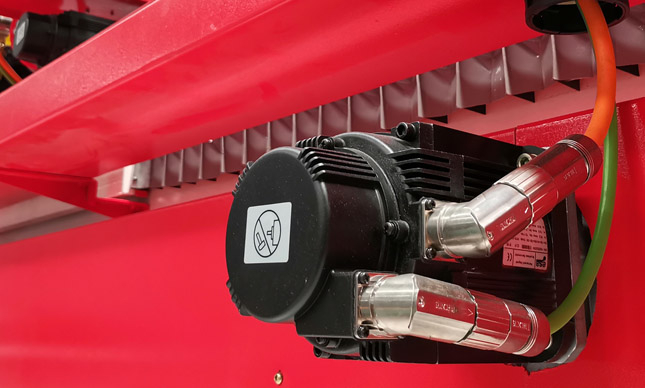

Additionally, mechanical buttons are provided for manual operation of main functions, ensuring convenience and ease of use. To achieve reliable control over the X, Y, and Z axes, the machine utilizes an ESA digital servomotor, an original Italian brand. This permanent magnet brushless servomotor is integrated with drives, enabling seamless digital integration with the CNC system. For accurate alignment and calibration, the machine is equipped with a laser reticule apparatus from China. This instrument aids in lining up the cut at the beginning of processing, ensuring precision and accuracy. The HSNC-500 features high-quality electro-spindles controlled by an inverter, allowing for adjustable revolutions ranging from 0 to 6000 rpm. This versatility enables the use of various tools, including blades and diamond tools such as core drills or milling cutters. The tool change is manual, providing flexibility and convenience. To ensure high precision cutting and a long lifespan, the machine incorporates Hiwin linear guides, a renowned brand from Taiwan, China. These top-quality guides are used on the crossbeam and carling, guaranteeing exceptional cutting precision.
In summary, the HSNC-500 stone edge profiling CNC machine by Hualong Machinery is a reliable and efficient solution for stone shaping and processing. With its advanced features, including the Esa operating control system, digital servomotor, laser reticule apparatus, electro-spindles, and Hiwin linear guides, this machine offers exceptional performance and accuracy. Choose the HSNC-500 for your stone processing needs and experience the quality and precision it delivers.
TECHNICAL DATA FOR HKNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Max. lifting weight by sunction cups | 200 | kg |
Power of main motor | 11 | kw |
Power of cutter frame reciproctating motor | 2 | kw |
Power of crossbeam shifting motor | 1.1 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 0.85 | kw |
Gross power | 16 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 5700x3260x2765 | mm |
1. Controlled by Siemens PLC system for expedient, accurate, and stable operation.
2. One-button automatic vertical and horizontal cutting for enhanced convenience.
3. Cutting head can rotate 0°-360° and position automatically, while the blade can tilt 0-90° and perform chamfering automatically.
4. Equipped with drilling and milling functions, making round sink processing easier and faster.
5. The working platform can rotate 0-360°, allowing positioning at any angle, and tilt up to 85° for easy feeding.
6. Mono-block machine design enables easy container loading and machine installation.
Product Advantages of the Stone Edge Profiling CNC Machine:
1. Precision Control: The HSNC-500, powered by the Siemens PLC system, ensures expedient, accurate, and stable operation, guaranteeing precise stone cutting.
2. Efficient Operation: With one-button automatic vertical and horizontal cutting, the HSNC-500 streamlines the cutting process for maximum efficiency.
3. Versatile Cutting Options: The HSNC-500 offers a cutting head that can rotate 0°-360° and automatically position itself, along with a blade that can tilt 0-90° for chamfering. This versatility provides various cutting options to meet different shaping requirements.
4. Additional Functions: Equipped with drilling and milling functions, the HSNC-500 makes tasks like round sink processing faster and easier, enhancing productivity and reducing manual effort.
5. Flexible Work Platform: The working platform of the HSNC-500 can rotate 0-360° and tilt up to 85°, allowing for easy feeding from various angles. This flexibility improves accessibility and adaptability during the stone shaping process.
6. Compact Design: Being a mono-block machine, the HSNC-500 is easy to load into containers and install, ensuring convenience and cost-effectiveness.
By Hualong Machinery, the HSNC-500 stone edge profiling CNC machine offers precision control, efficient operation, versatile cutting options, additional functions, a flexible work platform, and a compact design.
1. Stone Countertops: The HSNC-500, a stone edge profiling CNC machine, is specifically designed for processing stone countertops, including those with sinks. Its precision cutting and versatile angle adjustments ensure that stone countertops are crafted with perfection.
2. Stone Slab Cutting: This machine is ideal for cutting various types of stone slabs, such as granite, marble, quartzite, and artificial stone slabs, to the desired sizes. With its advanced control systems, it delivers high-precision cutting results.
3. Relief Processing: The HSNC-500's capabilities extend to relief processing, allowing for intricate designs and patterns to be carved into stone surfaces. Its versatility in angle adjustments enables the machine to adapt to different relief processing requirements.
4. Drilling and Milling: Equipped with drilling and milling functions, this machine facilitates tasks like creating holes and fine detailing on stone surfaces. Its top-quality linear guides ensure precise and accurate drilling and milling operations.
5. Versatile Rotation: The HSNC-500 features a work platform that can rotate at any angle (0-360°), making it highly adaptable to different cutting and processing requirements. This versatility allows for efficient and precise shaping of stone edges.
6. High-Precision Cutting: With the use of top-quality linear guides and advanced control systems, the HSNC-500 excels in high-precision cutting tasks. It ensures clean and accurate cuts, resulting in perfectly shaped stone edges.
