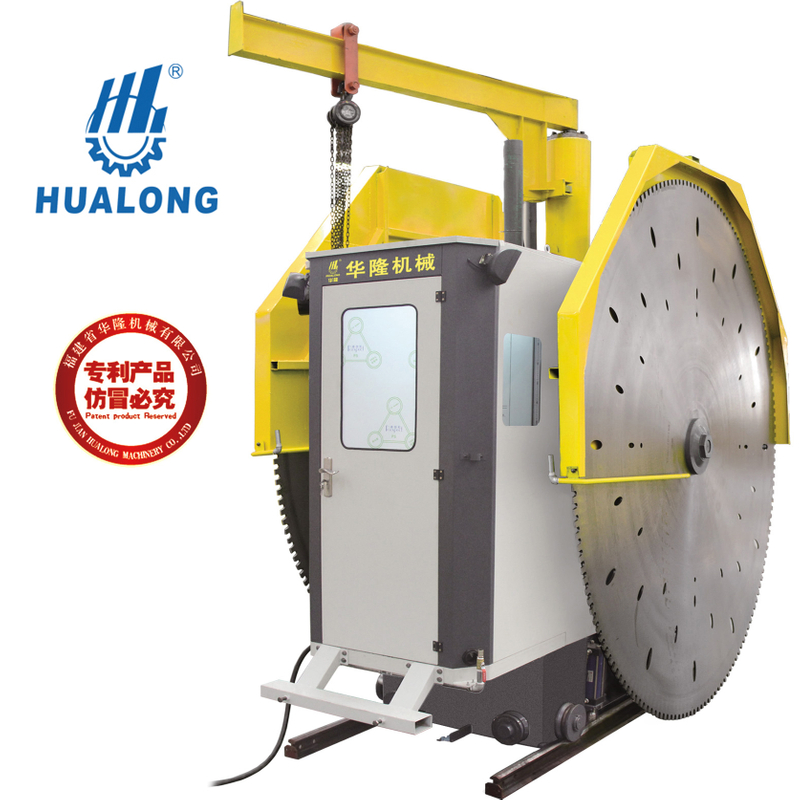

Quarry Stone Cutting Machine

Name: Quarry Stone Cutting Machine
Brand: Hualong Machinery
Rating: 5.0 (54 reviews)

Here's the Quarry Stone Cutting Machine, the latest addition to Hualong Machinery's lineup of stone quarry machinery. With its innovative design and cutting-edge features, this machine is specifically developed for mining granite at quarries, while also being highly effective for mining marble and quartz. Equipped with double main permanent magnet motors regulated by frequency converters, dual big blades, and a 4-shaft transmission, this machine offers unparalleled power and efficiency. The 2QYKZ series Quarry Stone Cutting Machine is perfect for those in need of a reliable and high-performing solution for their stone quarry cutting needs. With keywords such as "Double Blade Granite Quarry Machinery" and "Stone Quarry Cutting Machines," this machine is sure to meet the demands of the stone industry. Trust Hualong Machinery for all your stone quarry mining machinery requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
2QYKZ
Brand:
Hualong Machinery

Product Description

Here's the 2QYKZ Quarry stone cutting machine by Hualong Machinery, a leading name in the stone machinery industry. This state-of-the-art machine is designed to revolutionize the stone quarrying process, providing efficient and precise cutting of granite blocks. Featuring a 4 Shafts Drive Transmission, this machine eliminates the need for a triangle belt, ensuring smoother and more stable operation. The double blades are driven through the shafts, resulting in increased efficiency and reduced power loss. The blade with Cut hole design offers several advantages. It reduces dead weight, load, and power loss by approximately 40%, enhancing overall performance. Additionally, the design allows for convenient cooling water flow, improving the cooling effect and sand discharge. This design also releases stress, making the blades more resistant to deformation and extending their lifespan. The machine is equipped with a powerful Permanent Magnet motor, boasting an impressive 96% efficiency. With a high rated speed of 11000 rpm and a wide range of speed control, this motor ensures reliable and precise cutting of various stone materials. For added convenience, the machine features a Power Connection & Operation Panel from renowned brands such as Siemens, Sunye, Sinee, and Rmspo. The panel includes a Frequency Converter that regulates motor speed based on the hardness of the materials being cut, significantly improving productivity. As an optional feature, the machine can be equipped with a Touch Screen that offers upgraded functions. This touch screen automatically adjusts cutting speed, reducing mechanical impact load and wear. It stabilizes the saw cutting process, enhancing mining efficiency. Choose the 2QYKZ Quarry stone cutting machine by Hualong Machinery for superior performance, efficiency, and durability. Experience the future of stone quarrying with our advanced technology and reliable machinery.

Technical Parameters

Technical Data for 2QYKZ-3300, 2QYK-2200
Model Number		2QYKZ-3300A	2QYKZ-3300B	2QYKZ-3300C	2QYKZ-3300D
Blade diameter	mm	3300	3300	3300	3300
Max.cutting depth	mm	1400	1400	1400	1400
Width of cutting	mm	1360-1860	1500-2000	2200-2700	2700-3200
Power of main motor	kw	66 x 2	66 x 2	66 x 2	66 x 2
Power of pump motor	kw	3.5	3.5	3.5	3.5
Power of stroke motor	kw	2.2	2.2	2.2	2.2
Power of railway switch motor	kw	0.75x2	0.75x2	0.75x2	0.75x2
Gross Power	kw	139.2	139.2	139.2	139.2
Gross weight	kg	7000-8500	7000-8500	7000-8500	7000-8500
Dimenssion (L x W x H)	cm	370x220x275	370x220x275	370x220x275	370x220x275
More Models	Max. cutting depth		Blade diameter	Main Motor	Remarks
2QYK-2200	950 mm		2200 mm	37kw x 2	w/ normal motor
2QYKF-3000	1250 mm		3000 mm	66kw x 2
2QYKF-3600	1550 mm		3600 mm	66kw x 2
2QYKZ-3800	1650 mm		3800 mm	66 kw x 2
2QYKZ-4200	1850 mm		4200 mm	66kw x 2

Main Features

Main Features of the Quarry Stone Cutting Machine:

1. Equipped with powerful permanent magnet motors with a high speed of 11000 rpm and exceptional reliability. 2. The main motors' speed can be regulated by a frequency converter, allowing for adjustable cutting speed based on the hardness of the stone being cut.

3. Productivity is significantly improved, with a 10%+ increase in efficiency.

4. Energy-saving technology results in a 10-15% reduction in energy consumption compared to the 2QYKT series. 5. Enhanced safety measures and improved stability ensure a secure working environment.

Product Advantages

Product Advantages of Quarry Stone Cutting Machine (2QYKZ) by Hualong Machinery:

1. High speed: The 2QYKZ quarry stone cutting machine can cut an estimated 15 sqm/hour, surpassing the wire saw which cuts about 10 sqm/hour.

2. Low consumption: Our quarry stone cutting machine costs approximately USD1.00/sqm, providing a cost-effective solution compared to the wire saw which can cost between USD1.5-2.3/sqm.

3. Quality Assurance: Our quarry stone cutting machine is manufactured with over 25 years of expertise and patented technology, ensuring superior quality. It strictly conforms to the ISO9001:2015 quality management system.

4. On-purchase Service: We offer a wide range of machines to choose from, including the 2QYKZ quarry stone cutting machine. Customization options are also available to meet specific requirements. Our experienced technicians are available to address any questions or concerns.

5. After-sale Service: We provide quick supply of parts and accessories for any needs that may arise. Troubleshooting support is available through phone, e-mail, or WhatsApp/Wechat. We also offer installation and operation training for the quarry stone cutting machine. Our qualified and experienced technicians are available for assistance overseas.
