HSNC-500
Hualong Machinery

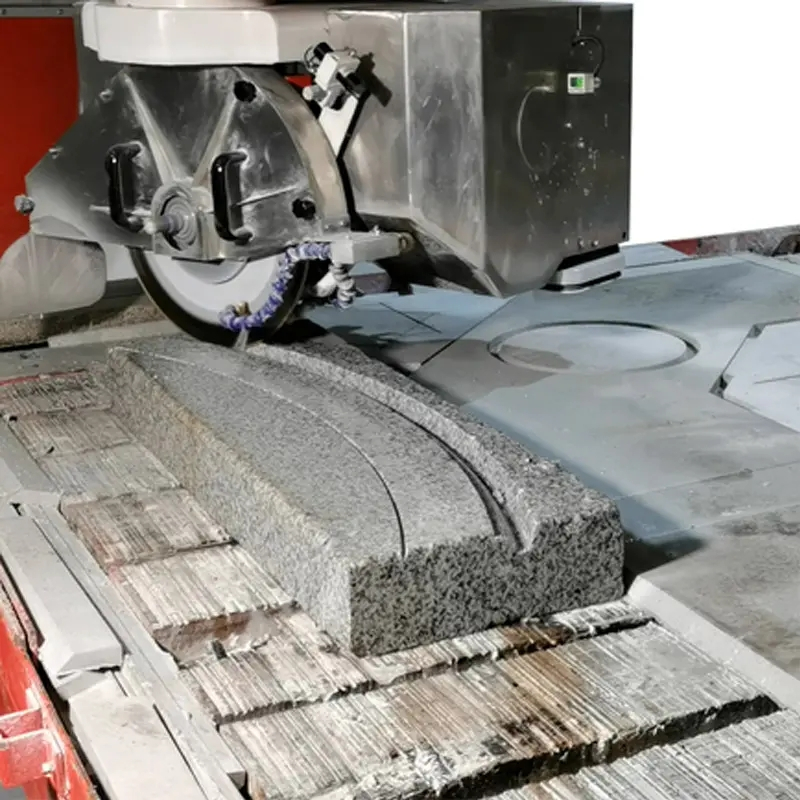

Here's the HSNC-500, a cutting-edge natural stone cutting machine brought to you by Hualong Machinery. This state-of-the-art equipment is designed to shape and cut stone slabs with utmost precision and efficiency. With its advanced features and top-quality components, it guarantees exceptional performance in the stone machinery industry. Equipped with an Esa operating control system, this machine offers easy setting and automatic processing through its Italy CNC system with a user-friendly touch screen.
Additionally, the mechanical buttons provide manual operation for main functions, ensuring ease of use. The HSNC-500 boasts an ESA digital servomotor, originating from Italy, which provides reliable controlling power for the X, Y, and Z axes. This permanent magnet brushless servomotor, integrated with drives, enables total digital integration with Esa's CNCs, resulting in unparalleled accuracy. To aid in precise alignment at the beginning of processing, the machine features a laser reticule apparatus from China.
This laser checking and calibration instrument ensures optimal cutting accuracy. The high-quality electro-spindles, controlled by an inverter, allow for adjustable revolutions ranging from 0 to 6000 rpm. This versatility enables the use of various tools, including blades and diamond tools such as core drills or milling cutters. The manual tool change feature further enhances flexibility. For exceptional cutting precision and extended lifespan, the HSNC-500 incorporates Hiwin linear guides from Taiwan, China. These renowned products are utilized on the crossbeam and carling, ensuring the highest level of accuracy.
In summary, Hualong Machinery's HSNC-500 is a cutting-edge natural stone cutting machine designed for stone shaping and cutting applications. With its advanced features, including the Italy CNC system, digital servomotor, laser reticule apparatus, electro-spindles, and Hiwin linear guides, it guarantees exceptional precision and longevity. Experience the future of stone machinery with the HSNC-500.
TECHNICAL DATA FOR HKNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Max. lifting weight by sunction cups | 200 | kg |
Power of main motor | 11 | kw |
Power of cutter frame reciproctating motor | 2 | kw |
Power of crossbeam shifting motor | 1.1 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 0.85 | kw |
Gross power | 16 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 5700x3260x2765 | mm |
Main Features of Natural Stone Cutting Machines:
1. Controlled by Siemens PLC system for expedient, accurate, and stable operation.
2. One-button automatic vertical and horizontal cutting for increased efficiency.
3. Cutting head can rotate 0°-360° and position automatically, while the blade can tilt 0-90° and perform chamfering automatically.
4. Equipped with drilling and milling functions, making round sink processing easier and faster.
5. Working platform can rotate 0-360°, allowing positioning at any angle, and tilt 85° for easy feeding.
6. Mono-block machine design facilitates container loading and machine installation.
1. Precision Control: The HSNC-500, a stone shaping machine by Hualong Machinery, is controlled by the Siemens PLC system, ensuring expedient, accurate, and stable operation. This guarantees precise stone cutting, meeting the demands of the stone industry.
2. Efficient Operation: With its one-button automatic vertical and horizontal cutting feature, the HSNC-500 streamlines the cutting process, maximizing efficiency. This saves time and effort, allowing for increased productivity.
3. Versatile Cutting Options: The HSNC-500 offers a cutting head that can rotate 0°-360° and automatically position itself. Additionally, the blade can tilt 0-90° for chamfering. This versatility provides various cutting options, catering to different stone shaping needs.
4. Additional Functions: Equipped with drilling and milling functions, the HSNC-500 enhances its capabilities. This allows for faster and easier round sink processing, expanding the range of tasks that can be accomplished with this machine.
5. Flexible Work Platform: The working platform of the HSNC-500 can rotate 0-360° and tilt up to 85°. This flexibility enables easy feeding from various angles, providing convenience and adaptability in stone cutting operations.
6. Compact Design: As a mono-block machine, the HSNC-500 is designed for easy loading into containers and installation. This ensures convenience and cost-effectiveness, making it an ideal choice for stone processing businesses.
In summary, the HSNC-500 natural stone cutting machine from Hualong Machinery offers precision control, efficient operation, versatile cutting options, additional functions, a flexible work platform, and a compact design. These advantages make it a valuable asset in the stone machinery industry, meeting the demands of stone shaping processes.
1. Stone Countertops: The HSNC-500, a natural stone cutting machine by Hualong Machinery, is specifically designed for processing stone countertops. It excels in precision cutting and offers versatile angle adjustments, ensuring that stone countertops, including those with sinks, are crafted with perfection.
2. Stone Slab Cutting: This machine is ideal for cutting various types of stone slabs, such as granite, marble, quartzite, and artificial stone slabs, to the desired sizes. Its advanced capabilities make it a reliable choice for stone slab cutting tasks.
3. Relief Processing: The HSNC-500 extends its capabilities to relief processing, allowing for intricate designs and patterns to be carved into stone surfaces. With this machine, you can achieve stunning relief work on stone materials.
4. Drilling and Milling: With its drilling and milling functions, the HSNC-500 facilitates tasks like creating holes and fine detailing on stone surfaces. This feature adds versatility to the machine, making it suitable for various stone processing requirements.
5. Versatile Rotation: The HSNC-500 offers the ability to rotate the work platform at any angle, ranging from 0 to 360 degrees. This flexibility allows the machine to adapt to different cutting and processing requirements, ensuring precise and efficient results.
6. High-Precision Cutting: Hualong Machinery's HSNC-500 stands out in high-precision cutting tasks. It utilizes top-quality linear guides and advanced control systems, ensuring accurate and clean cuts on natural stone materials.
In summary, the HSNC-500 natural stone cutting machine by Hualong Machinery is a versatile and reliable tool for stone processing. Its applications range from crafting stone countertops to cutting stone slabs, relief processing, drilling and milling, and high-precision cutting. With its advanced features and capabilities, this machine is a valuable asset in the stone machinery industry.
