HLMW-21/36/42/58U
Hualong Machinery

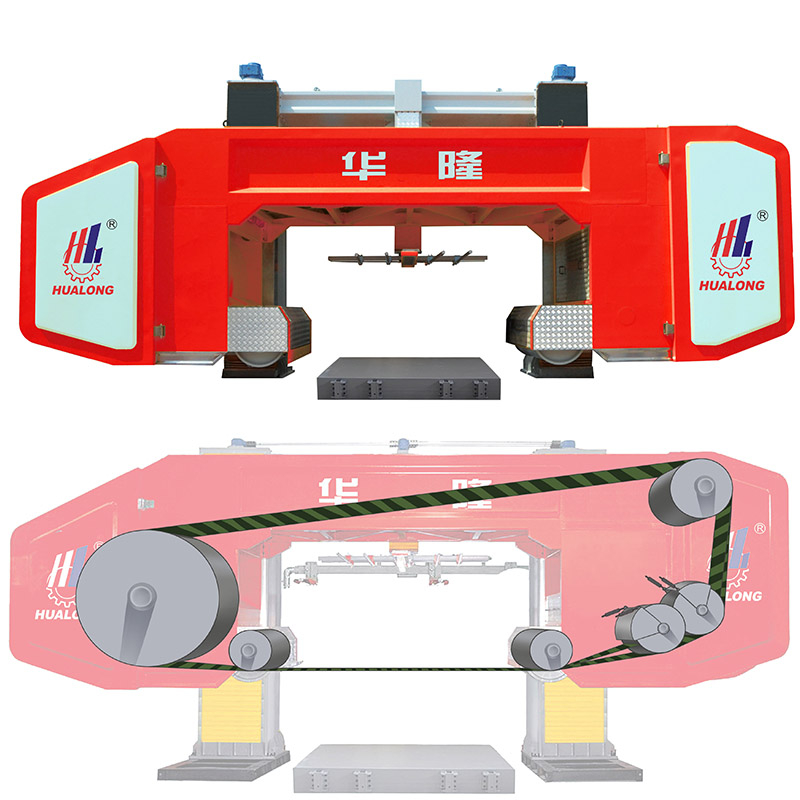

Here's the HLMW-21/36/42/58U Multi Wire Saw Machine by Hualong Machinery, the ultimate solution for block cutting in the stone industry. This cutting-edge machine is equipped with a driving wheel featuring an enormous roller with a diameter of 2.20 meters and a peripheral speed of 35 m/s. Its wear-resistant polyurethane rubber liner ensures easy replacement and maintenance, reducing overall costs. The wire guide rollers of the HLMW-21/36/42/58U are designed to approach the block closely, guaranteeing high rolling speed and precise cutting. This results in superior quality cut slabs. The individual wire tensioning system allows for easy replacement of diamond wires and adjustment of slab thickness, while maintaining programmed tension and balancing wire elongation during the cut. The tensioning pulley of each wire is continuously monitored to prevent excessive stretching. Supported on two columns, this machine boasts a robust and rigid structure made of wide closed section normalized steelwork. It undergoes thorough structural checks according to FEM standards, ensuring minimal vibration and maximum stability. Water supply on top and both sides reduces water consumption compared to traditional gang saw cutting methods. Water jets cool and clean the diamond beads, eliminating wasted material. Customization options include choosing from 10, 21, 36, 42, 58, 72, 80, 82, 84, or 86 wires, as well as the ability to customize the color of the machine. Experience the efficiency and precision of the HLMW-21/36/42/58U Multi Wire Saw Machine, the ultimate choice for block cutting in the stone industry. Trust Hualong Machinery for all your stone machinery needs.
TECHNICAL DATA | |||||
Model No. | HLMW-21U | HLMW-36U | HLMW-42U | HLMW-58U | HLMW-72U |
Max. Number of Wire (pcs) | 21 | 36 | 42 | 58 | 72 |
Length of Wire (m) | 23 | 23 | 23 | 23 | 23 |
Diameter of Wire (mm) | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 |
Slab Thickness (mm) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
Max. Cutting Length (mm) | 3200 | 3200 | 3200 | 3200 | 3200 |
Max. Cutting Height (mm) | 2000 | 2000 | 2000 | 2000 | 2000 |
Max. Wire Tension (kgs) | 200/250 | 200/250 | 200/250 | 200/250 | 200/250 |
Wire Speed (m/s) | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
Main Motor (kw) | 95 | 132 | 160 | 250 | 280 |
Water Consumption (L/min) | 500 | 800 | 1000 | 1800 | 2300 |
Machine Length (mm) | 11000 | 11800 | 11800 | 11800 | 11800 |
Machine Height (mm) | 5900 | 5900 | 5900 | 5900 | 5900 |
Gross weight (kg) | 30000 | 35000 | 45000 | 50000 | 65000 |
1. Sturdy Construction: The HLMW-21/36/42/58U multi wire saw machine by Hualong Machinery is built with a robust and durable construction, ensuring long-lasting performance and reliability.
2. Easy Cutting: With advanced technology and precision engineering, this machine allows for effortless cutting of stone blocks, making the process quick and efficient.
3. Corrosion-Resistance: The multi wire saw machine is designed to withstand the harsh conditions of the stone cutting industry, offering excellent resistance against corrosion and ensuring a longer lifespan.
4. Quick and Precise Cutting: Equipped with high-quality diamond wire, this machine enables quick and precise cutting of stone slabs, ensuring a perfect surface finish.
5. Versatile Cutting Options: The HLMW-21/36/42/58U multi wire saw machine is available in different sizes, allowing for cutting of various sizes of stone slabs, providing flexibility and versatility in stone processing.
6. Reliable with Minimal Operating Costs: This machine is designed to be reliable and efficient, minimizing downtime and reducing operating costs, making it a cost-effective solution for stone cutting operations.
7. Low Water Consumption and Low Cutting Noise: With optimized water usage and noise reduction technology, this machine ensures minimal water consumption and low cutting noise, creating a more environmentally friendly and comfortable working environment.
1. Unparalleled Sawing Quality: Our multi wire saw machine ensures exceptional cutting precision and accuracy, resulting in high-quality finished stone products.
2. Enhanced Productivity: With our multi wire saw machine, you can achieve maximum productivity levels due to its efficient sawing structure feed rates. This allows for faster cutting and increased output.
3. Simultaneous Cutting of Different Blocks: Our multi wire saw machine enables you to cut multiple blocks of varying dimensions and stone types simultaneously. This saves time and improves overall operational efficiency.
4. Greater Cut Capacity: Despite its compact design, our multi wire saw machine offers a larger cut capacity. This means you can process larger stone blocks while optimizing space utilization and reducing costs.
5. Cost-effective Solution: By utilizing our multi wire saw machine, you can achieve cost savings in terms of both space requirements and operational expenses. Its efficient design and productivity features contribute to a more economical stone cutting process.
Product Application: Multi Wire Saw Machine The HLMW series Multi Wire Saw Machine, such as the HLMW-21/36/42/58U from Hualong Machinery, is a game-changer in the stone processing industry. This cutting-edge machinery offers a wide range of applications, revolutionizing the way stone blocks are cut and processed.
Here are the key points highlighting the product's versatility and effectiveness:
1. Granite Block Cutting: The Multi Wire Saw Machine is specifically designed for precise and efficient cutting of granite blocks. With its multiple diamond wires, it ensures exceptional cutting accuracy, resulting in high-quality slabs with perfect surfaces.
2. Cost Efficiency: This machine offers unparalleled cost efficiency by utilizing diamond-impregnated beads, water jets for cooling and cleaning, and minimal power and water consumption. It significantly reduces raw material wastage, leading to substantial cost savings.
3. Versatility: The Multi Wire Saw Machine is available in various wire configurations, allowing for customization with wire quantities ranging from 10 to 86 wires. This flexibility enables adaptability to different stone types and slab dimensions, making it suitable for diverse cutting requirements.
4. Productivity Enhancement: With its ability to simultaneously cut multiple blocks of varying sizes and stone types, the Block Cutting Machine excels in increasing productivity. Its robust construction and innovative features ensure maximum output with minimal operating costs.
5. Quality Assurance: The Multi Wire Saw Machine guarantees exceptional sawing quality, delivering smooth cutting and low noise levels. Its precision cutting capabilities make it indispensable for stone processing operations, ensuring high-quality end products.
In summary, the Hualong Machinery's Multi Wire Saw Machine is a versatile and cost-effective solution for the stone processing industry. Its ability to cut granite blocks with precision, while offering cost efficiency, productivity enhancement, and quality assurance, sets it apart from traditional cutting methods. With its customizable wire configurations and environmental sustainability features, this machine is a must-have for stone processing operations.
