2QYKZ
Hualong Machinery

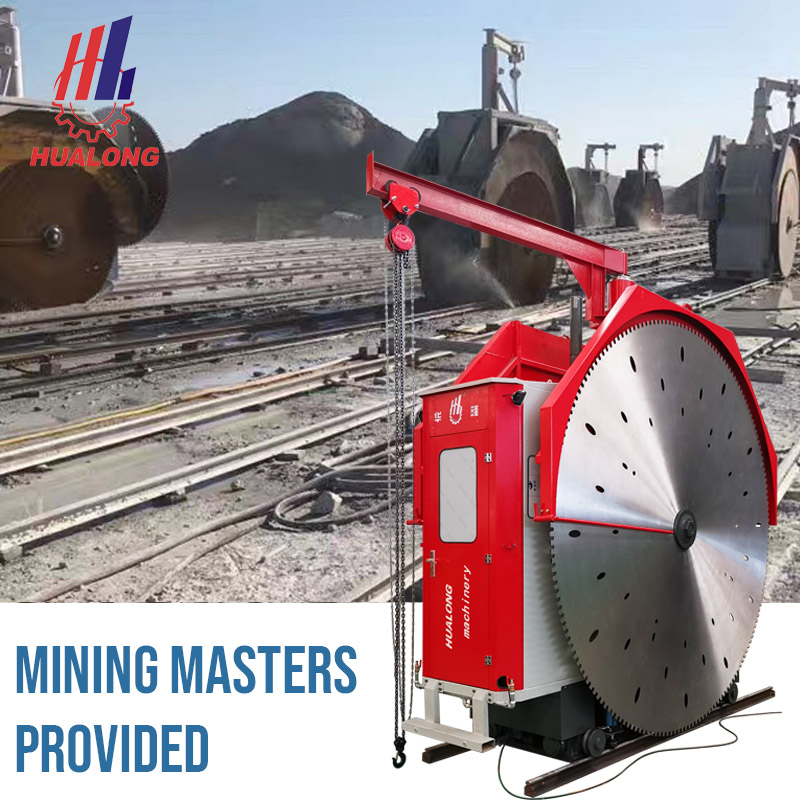

Here's the 2QYKZ Granite Quarry Machine from Hualong Machinery. This state-of-the-art stone quarry machinery is designed to revolutionize the way you cut and process granite. With its innovative features and cutting-edge technology, it offers unmatched efficiency and precision in the quarrying industry. Featuring a 4 Shafts Drive Transmission, this machine eliminates the need for a triangle belt, ensuring smoother and more stable operation. The through-drive design enhances the performance of the double blades, resulting in increased efficiency. The blade with cut hole design provides several advantages. It reduces dead weight, load, and power loss by approximately 40%. Additionally, it allows for convenient cooling water input, improving the cooling effect and sand discharge. This design also releases stress, making the blades more resistant to deformation and extending their lifespan. Equipped with a power connection and operation panel from renowned brands such as Siemens, Sunye, Sinee, and Rmspo, this machine ensures reliable performance. The frequency converter regulates motor speed based on the hardness of the materials being cut, enhancing productivity. The main motors of this machine are high-quality permanent magnet motors from CETL. With an efficiency of 96%, these domestic famous engines provide a wide range of speed control and high reliability. Their 66 kW power and high rated speed of 11000 rpm make them ideal for quarrying applications. For added convenience, a touch screen is available as an optional feature. This upgraded touch screen automatically adjusts cutting speed, reducing mechanical impact load and wear. It stabilizes saw cutting and improves mining efficiency.
In summary, the 2QYKZ Granite Quarry Machine from Hualong Machinery is a cutting-edge solution for stone quarrying. With its advanced features, superior performance, and reliable components, it is the perfect choice for professionals in the stone machinery industry.
Technical Data for 2QYKZ-3300, 2QYK-2200 | |||||
Model Number | 2QYKZ-3300A | 2QYKZ-3300B | 2QYKZ-3300C | 2QYKZ-3300D | |
Blade diameter | mm | 3300 | 3300 | 3300 | 3300 |
Max.cutting depth | mm | 1400 | 1400 | 1400 | 1400 |
Width of cutting | mm | 1360-1860 | 1500-2000 | 2200-2700 | 2700-3200 |
Power of main motor | kw | 66 x 2 | 66 x 2 | 66 x 2 | 66 x 2 |
Power of pump motor | kw | 3.5 | 3.5 | 3.5 | 3.5 |
Power of stroke motor | kw | 2.2 | 2.2 | 2.2 | 2.2 |
Power of railway switch motor | kw | 0.75x2 | 0.75x2 | 0.75x2 | 0.75x2 |
Gross Power | kw | 139.2 | 139.2 | 139.2 | 139.2 |
Gross weight | kg | 7000-8500 | 7000-8500 | 7000-8500 | 7000-8500 |
Dimenssion (L x W x H) | cm | 370x220x275 | 370x220x275 | 370x220x275 | 370x220x275 |
More Models | Max. cutting depth | Blade diameter | Main Motor | Remarks | |
2QYK-2200 | 950 mm | 2200 mm | 37kw x 2 | w/ normal motor | |
2QYKF-3000 | 1250 mm | 3000 mm | 66kw x 2 | ||
2QYKF-3600 | 1550 mm | 3600 mm | 66kw x 2 | ||
2QYKZ-3800 | 1650 mm | 3800 mm | 66 kw x 2 | ||
2QYKZ-4200 | 1850 mm | 4200 mm | 66kw x 2 | ||
1. Equipped with powerful permanent magnet motors: The high-speed motors with a speed of 11000 rpm ensure efficient and reliable performance in cutting stones.
2. Adjustable cutting speed: The main motors' speed can be regulated by a frequency converter, allowing for the adjustment of cutting speed based on the hardness of the stone being cut.
3. Enhanced productivity: With improved productivity of up to 10% higher, this machine enables faster and more efficient stone cutting operations.
4. Energy-saving design: Compared to the 2QYKT series, this machine offers a remarkable energy-saving advantage of 10-15%, contributing to cost reduction and sustainability.
5. Safety and stability: The machine is designed to provide a safer and more stable working environment, ensuring the well-being of operators and minimizing the risk of accidents.
1. High Speed: Our granite quarry machine, model 2QYKZ, offers a high cutting speed of approximately 15 sqm/hour, surpassing the wire saw's cutting speed of about 10 sqm/hour.
2. Low Consumption: With a cost of approximately USD1.00/sqm, our granite quarry machine provides significant cost savings compared to the wire saw, which costs USD1.5-2.3/sqm.
3. Quality Assurance: Our granite quarry machine is backed by over 25 years of expertise and patented technology, ensuring superior quality. It strictly conforms to the ISO9001:2015 quality management system.
4. On-Purchase Service: We offer a wide range of machine models to choose from, including the 2QYKZ. Customization options are also available to meet specific requirements. Our experienced technicians are available to address any questions or concerns.
5. After-Sale Service: We provide quick supply of parts and accessories for any needs that may arise. Troubleshooting support is available through phone, e-mail, or WhatsApp/Wechat.
Additionally, we offer installation and operation training for all our machines, and our qualified technicians are available for overseas assistance.
1. Efficient Granite Mining: The 2QYKZ series of Stone Quarry Machinery, manufactured by Hualong Machinery, is specifically designed for granite mining. With its high-speed cutting capabilities and energy efficiency, it enhances productivity by efficiently cutting granite, reducing operational costs, and ensuring high-quality output.
2. Cost-Effective Marble Quarrying: The Granite Quarry Machine is also ideal for marble quarrying. Its precision cutting and high-speed capabilities make it indispensable for extracting marble blocks. The improved cutting speed and energy savings result in a cost-effective marble extraction process.
3. Safe and Efficient Quartzite Quarrying: Hualong Machinery's Stone Quarry Machinery is suitable for mining quartzite, ensuring a safe and efficient operation for extracting high-quality quartzite. The precise cutting and energy efficiency of the machine make it a reliable choice for quartzite quarrying.
4. Shaping Architectural Stone: The Granite Quarry Machine plays a crucial role in shaping architectural stone for construction and decorative purposes. Its high-speed cutting capabilities and customization options meet the demands of architectural projects, allowing for precise and efficient stone shaping.
5. Versatile Applications: The Stone Quarry Machinery from Hualong Machinery can be used in various mining and quarrying applications. Whether it's granite, marble, quartzite, or other types of stone, the machine's high-speed cutting and energy efficiency make it a versatile tool for extracting and shaping different types of stone.
Here's the 2QYKZ Granite Quarry Machine from Hualong Machinery. This state-of-the-art stone quarry machinery is designed to revolutionize the way you cut and process granite. With its innovative features and cutting-edge technology, it offers unmatched efficiency and precision in the quarrying industry. Featuring a 4 Shafts Drive Transmission, this machine eliminates the need for a triangle belt, ensuring smoother and more stable operation. The through-drive design enhances the performance of the double blades, resulting in increased efficiency. The blade with cut hole design provides several advantages. It reduces dead weight, load, and power loss by approximately 40%. Additionally, it allows for convenient cooling water input, improving the cooling effect and sand discharge. This design also releases stress, making the blades more resistant to deformation and extending their lifespan. Equipped with a power connection and operation panel from renowned brands such as Siemens, Sunye, Sinee, and Rmspo, this machine ensures reliable performance. The frequency converter regulates motor speed based on the hardness of the materials being cut, enhancing productivity. The main motors of this machine are high-quality permanent magnet motors from CETL. With an efficiency of 96%, these domestic famous engines provide a wide range of speed control and high reliability. Their 66 kW power and high rated speed of 11000 rpm make them ideal for quarrying applications. For added convenience, a touch screen is available as an optional feature. This upgraded touch screen automatically adjusts cutting speed, reducing mechanical impact load and wear. It stabilizes saw cutting and improves mining efficiency.
In summary, the 2QYKZ Granite Quarry Machine from Hualong Machinery is a cutting-edge solution for stone quarrying. With its advanced features, superior performance, and reliable components, it is the perfect choice for professionals in the stone machinery industry.
