HLQY-2500
HUALONG
|
Product Description

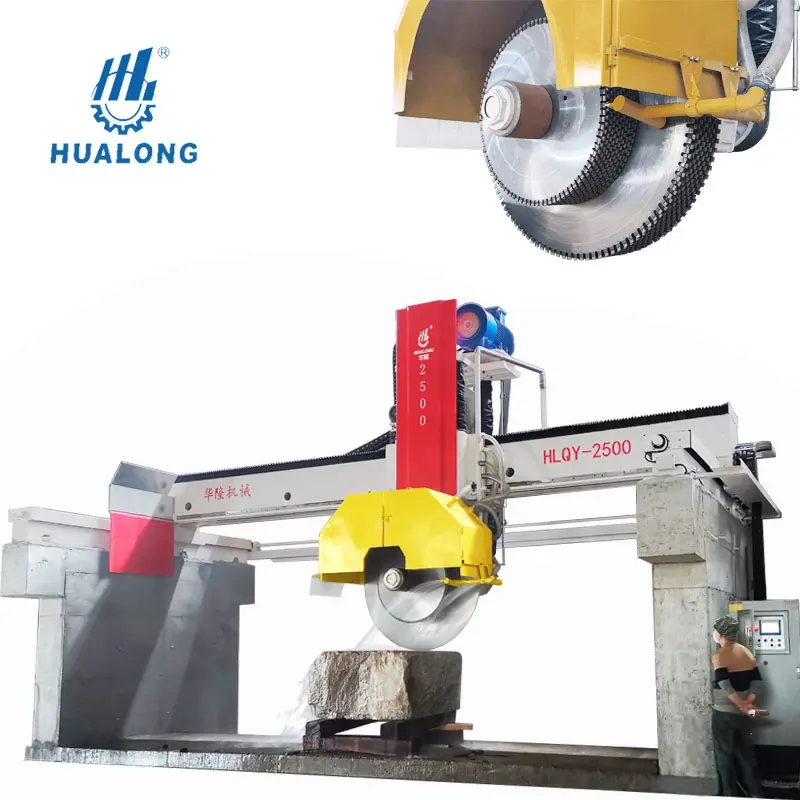

The HLQY-2500 multi-blade cutting machine can be fitted with different diameters and different numbers of blades, such as 1600mm, 2300mm, 2500mm, 3000m, etc. It can not only cut thin slabs but also thick slabs. The HLQY-2500 is equipped with a Siemens PLC control system, which provides high processing efficiency and good operational stability, and is well received by buyers in both domestic and international markets.
|
Technical Parameters
| Model | Unit | HLQY-2500 |
| Max. blade diameter | mm | Φ2500 |
| Cross beam type | A/B | |
| Cross beam length | mm | 7600 / 8300 |
| Cutting length | mm | 3500 |
| Cutting wideth | mm | 2000 |
| Lifting stroke | mm | 1350 |
| Power of main motor | kw | 55 (4P) |
| Power of pump motor | kw | 4 |
| Power of stroke motor | kw | 2.2 |
| Power of vertical motor | kw | 1.1 |
| Gross power | kw | 62.3 |
| Gross weight | kg | 13000/14000 |
| Dimensiona(L x W x H) | cm | 780x500x450 |
|
Product Detail
1) Siemens smart PLC control system makeshigh automation performance and easy.
2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.
4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
|
Product Video
stone block cutting machine
|
FAQ
1. Does this stone machinery have any environmental impact?
A: Hualong is committed to minimising the impact of our products on the environment and currently the Hualong brand of stone machinery products are certified to ISO14001:2105 environmental management system.
2. What is the warranty policy for your products and how long can you provide after-sales service?
A: All products sold by Hualong are covered by a one year warranty. Regarding after-sales service, we offer a lifetime after-sales service. For more information on our warranty policy please contact us and we will provide you with more information.
3. I am not familiar with the machinery, can Hualong provide me with training on the use of the products?
A: Hualong has a complete pre-sales and after-sales service. This service includes training on the use of the products. We will provide training and guidance on how to use our products.
4. What is the delivery time for this product?
A: Delivery times are generally dependent on the quantity you purchase or whether it is a bespoke product. Usually 45 days after receipt of full payment.
5. What certifications do Hualong's stone machinery products have?
A: Hualong's products have undergone a rigorous testing and certification process and have now been awarded ISO9001:2105 quality certification management system, CE product quality certification, etc. If you need more information on our certifications. Please contact us.
|
Company Profile
Hualong Stone Machinery Co., Ltd. is located in Huangshi Industrial Park, Putian, Fujian, China. It is a comprehensive enterprise specializing in the production and sale of natural stone cutting machines.cut stone blocks machine.marble and granit cutting machine products. Hualong has a plant area of about 26,000 square meters and more than 260 employees in service. The company has excellent mechanical processing equipment, strong processing and manufacturing capacity, with large CNC boring and milling machine, vertical CNC lathe, large rocker drill, gantry milling machine and many other stone machinery processing equipment, high precision processing equipment for the production of various types of stone mining machinery, stone processing machinery has laid a firm foundation.
Hualong Stone Machinery Co., Ltd. has many years of experience in producing and selling stone machinery. Hualong employees adhere to the scientific management, pioneering and innovative quality policy, follow the quality and service commitments, and make customer satisfaction as Hualong's unremitting pursuit, and build it into an influential high-tech enterprise in the stone machinery and equipment industry!
|
Certifications
Full Automatic CNC Stone Processing Center
CNC Bridge Stone Cutting And Milling Machine
Multi-Blade Stone Cutting Machine
Full Automatic Bridge Stone Cutting Machine
|
Product Packaging
|
