HLMW-21/36/42/58U
Hualong Machinery

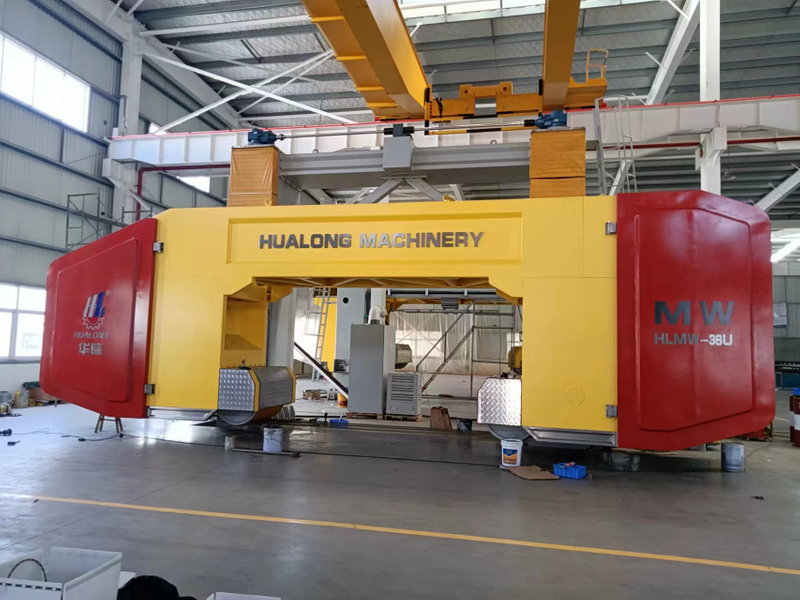

Hualong Machinery's Diamond Multi Wire Saw Machine, available in models HLMW-21/36/42/58U, is a revolutionary tool in the granite gangsaw industry. This state-of-the-art machine offers significant cost savings, averaging up to 3% per granite block sawn. Its multiple diamond wires, measuring 6.3-7.2 mm in diameter and featuring diamond-impregnated beads, ensure precise and efficient cutting of granite blocks. These beads are efficiently cooled and cleaned by water jets, minimizing material waste.
TECHNICAL DATA | |||||
Model No. | HLMW-21U | HLMW-36U | HLMW-42U | HLMW-58U | HLMW-72U |
Max. Number of Wire (pcs) | 21 | 36 | 42 | 58 | 72 |
Length of Wire (m) | 23 | 23 | 23 | 23 | 23 |
Diameter of Wire (mm) | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 | 6.3/7.2 |
Slab Thickness (mm) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
Max. Cutting Length (mm) | 3200 | 3200 | 3200 | 3200 | 3200 |
Max. Cutting Height (mm) | 2000 | 2000 | 2000 | 2000 | 2000 |
Max. Wire Tension (kgs) | 200/250 | 200/250 | 200/250 | 200/250 | 200/250 |
Wire Speed (m/s) | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
Main Motor (kw) | 95 | 132 | 160 | 250 | 280 |
Water Consumption (L/min) | 500 | 800 | 1000 | 1800 | 2300 |
Machine Length (mm) | 11000 | 11800 | 11800 | 11800 | 11800 |
Machine Height (mm) | 5900 | 5900 | 5900 | 5900 | 5900 |
Gross weight (kg) | 30000 | 35000 | 45000 | 50000 | 65000 |
1.Enhanced Productivity and Efficiency: With a diameter of 2.20 meters and a peripheral speed of 35 m/s, the m8.achine offers high rolling speed and exceptional cutting precision, leading to superior quality slabs.
2.Durable and Reliable: Built with a sturdy and corrosion-resistant structure, it ensures long-lasting performance even in harsh working conditions.
3.Precision Cutting with Versatility: The machine's high-quality diamond wires enable quick and precise cutting, adjustable for various slab sizes.
4.Optimal Design for User Experience: Boasting low noise levels and minimal water consumption, it provides a sustainable and comfortable working environment.
5.Cost-Effective Operations: Its efficient design and advanced technology reduce operational costs, maximizing profitability.
6.Multi-Block Cutting Capability: Capable of cutting multiple blocks simultaneously, the machine significantly enhances productivity and time efficiency.
7.Customizable Features: Offering various wire configurations (from 10 to 86 wires) and customizable color options, it caters to a wide range of applications and individual preferences.
8.Eco-Friendly and Safe: The machine's efficient water supply system conserves water and contributes to environmental sustainability.
This machine is primarily used for cutting granite blocks, yielding high-quality slabs with perfect surfaces. It is an essential tool in the stone processing industry, ensuring cost efficiency, unparalleled sawing quality, versatility, and productivity enhancement. Its robust construction and innovative features guarantee maximum output with minimal operating costs, making it an indispensable asset for efficient and precise block cutting operations.
Q:What is the primary application of the Diamond Multi Wire Saw Machine?
A:The Diamond Multi Wire Saw Machine is primarily used for precise and efficient cutting of granite blocks, resulting in high-quality slabs with perfect surfaces.
Q. How does this machine contribute to cost savings?
A.The machine's advanced technology and efficient design lead to reduced operational costs by optimizing the cutting process, minimizing material waste, and conserving power and water.
Q. Can the machine accommodate different slab sizes?
A. Yes, it offers versatility by allowing adjustments for various slab sizes, catering to different project requirements.
Q. Is the machine environmentally friendly?
A. Yes, it is designed to be eco-friendly with reduced water consumption and low cutting noise levels, providing a sustainable and comfortable working environment.
Q. Are there customization options available for this machine?
A. Yes, the machine offers customization options, including various wire configurations and customizable color choices to suit individual preferences or branding requirements.
