HKNC-500
HUALONG
|
Product Description

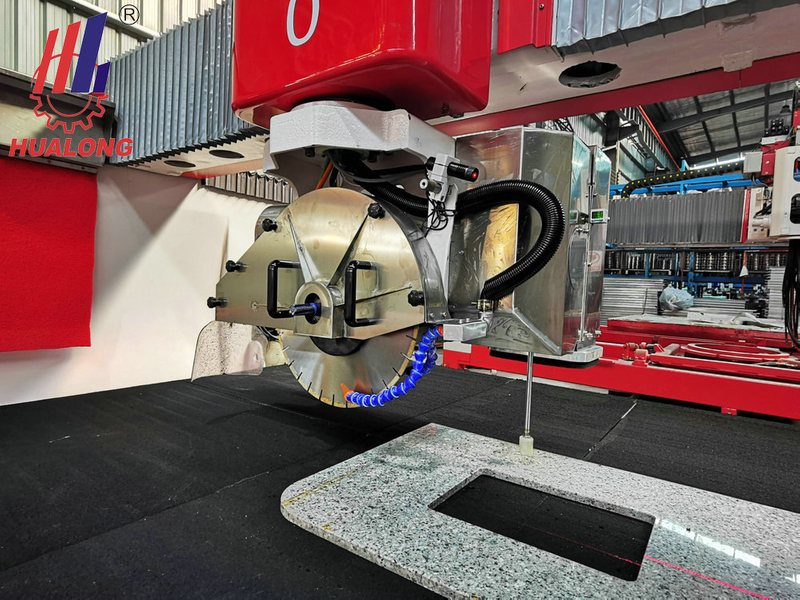

HKNC-500 five-axis CNC stone cutting machine is a high-grade CNC equipment for high-precision and high-efficiency cutting and engraving in the stone processing industry. The machine adopts the imported ESA five-axis CNC system, which has the ability to move multiple axes at the same time, and can complete complex cutting and engraving tasks.
The main feature of the HKNC-500 Bridge Marble Cutting Machine is that it has five independent motion axes, including X, Y, Z axes and two rotation axes. Through the combined movement of these axes, the machine is capable of cutting and engraving at any angle and direction, thereby achieving more complex and fine processing tasks.
The machine adopts CAD/CAM software, and users can control the movement and operation of the machine through computer programming. The operator only needs to draw the graphics or design models required for processing on the computer and upload them to the machine control system, and the machine can automatically cut and engrave.
The five-axis CNC stone cutting machine is equipped with a high-speed spindle and professional knives, which can be used to cut stones of various hardness, such as marble, granite, quartz stone, etc. The spindle speed of the machine can be adjusted according to processing requirements, so as to adapt to different materials and cutting requirements
|
Technical Parameters
| Name | Unit | HKNC-500 |
| Diameter of saw blade | mm | ø400-ø500 |
| Dimension of working platform | mm | 3300x2000 |
| Max. cutting length | mm | 3300 |
| Max. cutting thickness | mm | 140 |
| Max. lifting stroke | mm | 250 |
| Max. lifting weight by sunction cups | kg | 200 |
| Power of main motor | kw | 26.4 |
| Power of cutter frame reciproctating motor | kw | 2 |
| Power of crossbeam shifting motor | kw | 1.1 |
| Power of hydraulic station motor | kw | 2.2 |
| Power of lifting motor | kw | 0.85 |
| Gross power | kw | 16 |
| Water consumption | m3/h | 2 |
| Gross weight | kg | 5800 |
| Dimensions (L x W x H) | mm | 5700x3260x2765 |
|
Product Detail
2）Easy to use 19" color touch screen interface.
3）The blade can be rotated 0°-360° and inclined 90°, which can be chamfered in any direction and at any angle.
4）The working platform can be inclined at 85 degrees, which is convenient for plate loading.
5）Integral structure, the size is suitable for the container, and the loading and unloading installation is convenient.
6）Manual cutting can be used for simple machining.
7）Manual/automatic nesting to optimize slab surface usage.
8）Optional - Vacuum robot for workpiece handling.
9）Optional - Photo board for nesting and defect avoidance.
10）Optional - Vein Matching, can easily match every vein, color at the seam of the project.
 |  |  |
 |  |
|
|
Product Video
5-axis CNC stone countertop cutting machine
|
Company Profile
We are a company specializing in the design and manufacture of five-axis CNC stone cutting machines. Over the years, we have been committed to providing advanced, efficient and reliable CNC equipment solutions for the stone processing industry. We have an experienced and skilled R&D team and production team, committed to providing customers with quality products and excellent services.
Technology leadership:
As an industry leader, we have always adhered to the concept of technological innovation. We have cooperated with scientific research institutions and colleges at home and abroad, and introduced the latest five-axis CNC technology and advanced numerical control system. Our team of engineers is constantly conducting research and development to continuously improve and optimize the performance of our products. Our five-axis CNC stone cutting machine has the characteristics of high speed, high precision and stability, which can meet customers' needs for fine processing.
quality assurance:
We always maintain high standards for product quality. Our five-axis CNC stone cutting machine adopts high-quality materials and components, and undergoes strict quality inspection and testing to ensure the performance and reliability of each device. We have a complete quality management system, and every link from design to manufacture has strict control and supervision to ensure that products meet international standards and customer requirements.
Customer First:
We always put our customers' needs first. Our sales team maintains close communication with customers to understand their specific needs and requirements. We provide professional consulting and technical support to help customers choose the right equipment and provide customized solutions. We also provide equipment installation and commissioning, training and after-sales service to ensure that customers can use our products smoothly.
|
Certifications
 |  |  |
|
Product Packaging
 |  |  |
|  |  |
|
