HLCNC-3319
Hualong Machinery

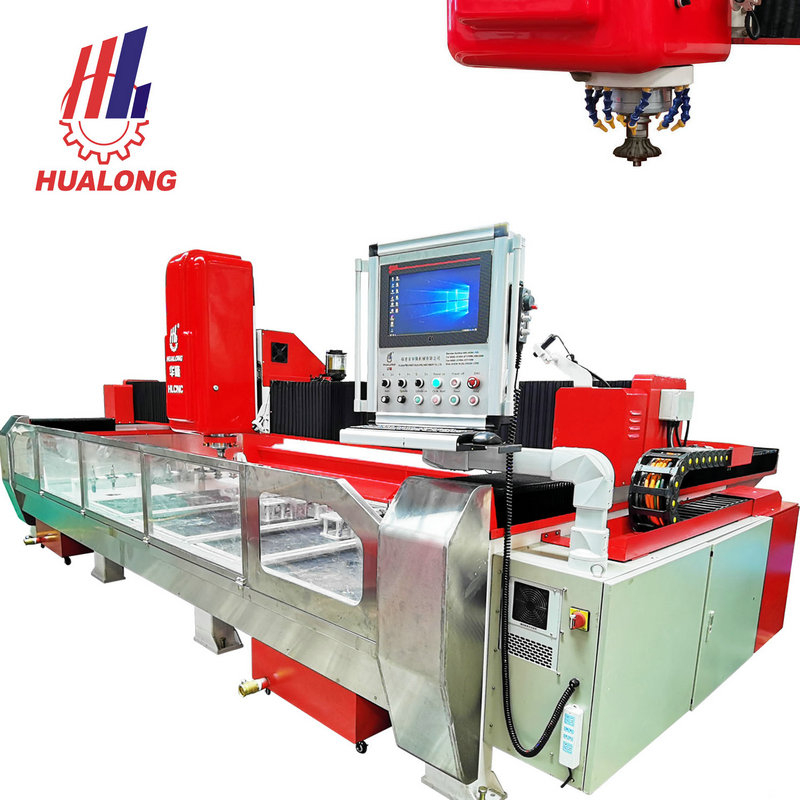

Here's the automatic stone edge profiling machine, a cutting-edge solution for stone shaping and grinding. This advanced CNC machine, model 3319, is proudly manufactured by Hualong Machinery, a trusted name in the stone machinery industry. Equipped with top-quality electrical components from renowned brands like Siemens and Schneider, this machine ensures stable performance and easy access for maintenance. The hand-wheel, wired to the control console, allows for precise axis management and control over movement speed and position. The laser reticule apparatus, originating from China, aids in calibrating the working point at the beginning, ensuring accuracy from the start. The machine features a durable and high-performance linear guide from Hiwin, a famous Taiwanese brand, used on the crossbeam and carling. With a self-lubrication system and automatic oil feeding, regular maintenance is made easy while reducing waste. The 7.5kw vacuum pump included with the machine provides powerful suction for securing the stone during operation. Experience the efficiency and precision of the automatic stone edge profiling machine, the ultimate choice for stone shaping and grinding. Also known as the stone edge profiling CNC machine, stone grinding machine edge profiling, CNC stone profiling machine, or countertops machine.
TECHNICAL DATA | ||||
Model Number | HLCNC-3015 | HLCNC-3319 | HLCNC-1308 | |
Stroke (X-axis) | mm | 3040 | 3500 | 1340 |
Stroke (Y-axis) | mm | 1540 | 1950 | 840 |
Stroke (Z-axis) | mm | 320 | 320 | 320 |
Power of motor | kw | 7.5 | 7.5 | 7.5 |
Rotating speed | rpm | 0-8000 | 0-8000 | 0-24000 |
Tool holder model | BT | 40 | 40 | 40 |
Tool-store position | nr | 12 | 20 | 11 |
Workbench dimension | mm | 3000x1500 | 3300x1900 | 1300x800 |
Gross Weight | kg | 4000 | 5000 | 2500 |
1.Powered by numerical control planning and interfaced with our CAD/CAM software, the machine's automatic tools enable continuous and automatic calibration, milling, carving, honing, and polishing of slabs in one go.
2.Equipped with a bilateral tools-store featuring 20 stations for automatic tool change, ensuring efficient and seamless operation.
3. The crossbeam and carling of the machine adopt Taiwan's Hiwin linear guide, guaranteeing high precision cutting and a long lifespan.
4. The X/Y axis of the machine is equipped with a dust collector, keeping the machine clean and prolonging its useful life.
5. The machine utilizes a 3-axis Yaskawa servo driver, enabling high-speed, efficient, and fine cutting without serrated ripple, resulting in a smooth bottom plane and clear outline.
6. With the inclusion of vacuum cups and aluminum alloy locks, the machine provides double holding of the working pieces, effectively preventing any displacement.
7. The machine is equipped with a convenient USB interface for operators to easily input and output programs.
8. It operates at high speed with low noise, ensuring a productive and comfortable working environment.
9. The machine's high efficiency and low processing cost make it an ideal choice for stone shaping applications.
Product Advantages:
1.Versatile CNC Processing: The automatic stone edge profiling machine, model 3319, is a part of our Stone Shaping Machines series. It offers versatile CNC stone processing capabilities, excelling in contouring, cutting, and shaping stone slabs with three interpolated axes. This versatility eliminates the need for multiple machines, making it highly efficient.
2. Automatic Tool Control: Powered by numerical control planning and seamlessly interfacing with CAD/CAM software, our machine features automatic tools that enable continuous and automated operations such as calibration, milling, carving, honing, and polishing in a single pass.
3. Efficiency and Precision: Utilizing Yaskawa servo drivers, our machine delivers high-speed, fine cutting with no serrated ripple and a smooth bottom plane. The adoption of Taiwan's Hiwin linear guide ensures precision cutting and prolonged machine life.
4. Ease of Maintenance: Our machine is designed for easy maintenance with a self-lubrication system and high-quality electrical components from brands like Siemens and Schneider. The labeled wiring in the electrical cabinet allows for easy access when servicing is required.
5. Secure Workholding: With vacuum cups and aluminum alloy locks, our machine securely holds workpieces in place, preventing even minor displacements during processing.
6. User-Friendly Interface: Equipped with a convenient USB interface, operators can easily input and output programs, enhancing ease of use.
7. Low Noise and High Speed: Our machine is designed for high-speed operation with minimal noise, making it suitable for various work environments.
8. Cost Efficiency: The automatic stone edge profiling machine offers high efficiency, reducing processing costs in the long run.
At Hualong Machinery, we are committed to providing industry-leading stone machinery solutions, and our automatic stone edge profiling machine is a testament to our dedication to quality and innovation.
1.Countertop Production: Our automatic stone edge profiling machine, model 3319, is specifically designed for processing stone slabs into kitchen countertops, bathroom countertops, cabinet countertops, and other surface applications. With its precision and versatility, it ensures efficient and accurate shaping of stone for various countertop designs.
2. Architectural Details: The stone edge profiling machine is ideal for creating intricate architectural details such as relief engravings, stone background wall reliefs, and European-style edging. Its advanced technology allows for precise and detailed shaping, enhancing the overall aesthetics of architectural projects.
3. Furniture and Decor: Our stone shaping machine can shape stone for use in furniture, including tables and windowsills, as well as decorative elements like door sets and bar counters. The machine's automated features and customizable options make it suitable for producing high-quality stone components for furniture and decor applications.
4. Industrial Precision: The automatic stone edge profiling machine is widely used in industrial applications that require intricate stone cutting and shaping. Its advanced CNC technology ensures precise and efficient processing of stone materials, making it suitable for industries such as construction, manufacturing, and stone fabrication.
5. Versatile Applications: Apart from the specific applications mentioned above, our stone shaping machine, equipped with advanced features and capabilities, can be used for various other purposes. It offers flexibility in shaping different types of stone materials, allowing for endless possibilities in creating unique designs and products.
