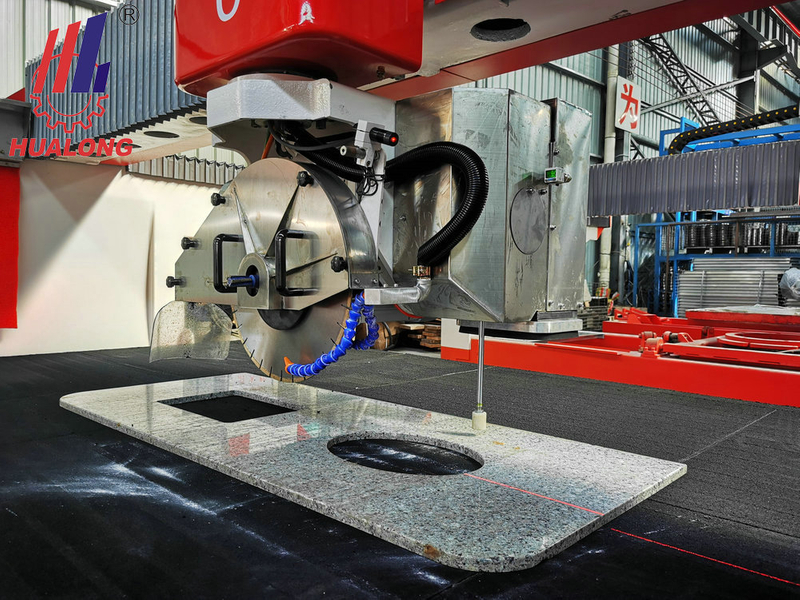

5 Axis Cnc Countertop Cutting Machine

​HKNC-500 is a multifunctional 5-axis CNC stone cutting machine
  • HKNC-500



 Product Description

HKNC-500 5 axis cnc countertop cutting machine is a powerful automated stone processing machine, specialised in plate cutting, countertop cutting,sink cutting and so on. The machine adopts imported Italian CNC intelligent control system, which can achieve high precision processing, and significantly improve the production efficiency and product quality. The following is the introduction of HKNC-500 granite countertop cutting machine.

First of all, HKNC-500 countertop machine adopts high-quality body material and advanced manufacturing process, the machine structure is solid, stable and reliable, capable of running for a long time, which effectively reduces the cost of use. In addition, the machine is equipped with ESA CNC software and touch screen HMI, which is easy and intuitive to operate, even inexperienced operators can get started quickly and improve production efficiency.

5 Axis Cnc Countertop Cutting Machine

Secondly, the HKNC-500 granite countertop cnc machine is equipped with advanced cnc control system and mapping software, which enables a wide range of complex machining such as cutting, engraving, drilling, etc. on plates with highly reliable accuracy. The machine also features high-speed processing and high-volume processing, which can meet the daily production needs of enterprises and is compatible with a wide range of plate materials. Whether it is marble, yellow granite or artificial stone, HKNC-500 can be processed, the machine has a wide range of adaptability. Meet the cutting requirements of different materials.

Last but not least, the HKNC-500 countertop panel machine features include the ability to automatically calculate machining paths, an intelligent sensing system, and an automatic tool magazine. These are designed to make the machine highly automated, dramatically increasing operational efficiency and reducing human error, thus enhancing productivity and product quality, and greatly reducing reliance on manpower and equipment.

Overall, the HKNC-500 Countertop Machine is a reliable and high quality machine with wide adaptability and highly automated production features. Its introduction brings great benefits to stone processing enterprises, saving them a lot of time and cost, improving product processing quality and productivity, and further promoting the rapid development of the whole stone processing industry.


 Technical Parameters

Name Unit HKNC-500
Diameter of saw blade mm ø400-ø500
Dimension of working platform mm 3300x2000
Max. cutting length mm 3300
Max. cutting thickness mm 140
Max. lifting stroke mm 250
Max. lifting weight by sunction cups kg 200
Power of main motor kw 26.4
Power of cutter frame reciproctating motor kw 2
Power of crossbeam shifting motor kw 1.1
Power of hydraulic station motor kw 2.2
Power of lifting motor kw 0.85
Gross power kw 16
Water consumption m3/h 2
Gross weight kg 5800
Dimensions (L x W x H) mm 5700x3260x2765



Product Detail
1)5-axis interpolation, Italian CNC Esa system.

2)Easy to use 19" color touch screen interface.

3)The blade can be rotated 0°-360° and inclined 90°, which can be chamfered in any direction and at any angle.

4)The working platform can be inclined at 85 degrees, which is convenient for plate loading.

5)Integral structure, the size is suitable for the container, and the loading and unloading installation is convenient.

6)Manual cutting can be used for simple machining.

7)Manual/automatic nesting to optimize slab surface usage.

8)Optional - Vacuum robot for workpiece handling.

9)Optional - Photo board for nesting and defect avoidance.

10)Optional - Vein Matching, can easily match every vein, color at the seam of the project.
