5 Axis CNC Bridge Stone Cutting Machine

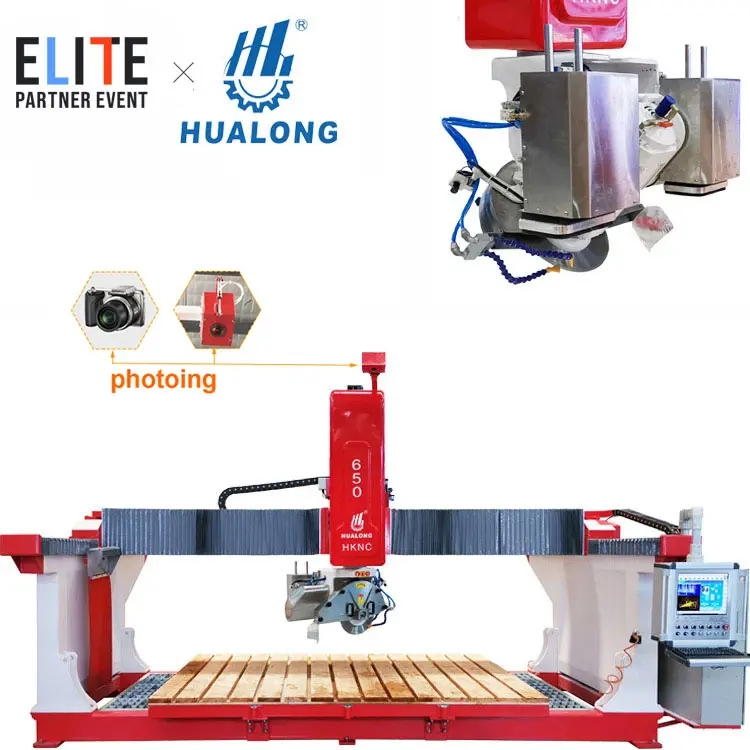

HKNC-650X is a real five-axis linkage intelligent stone machinery
  • HKNC-650X

  • Hualong


 Product Description

Cnc Bridge Saw 5 Axis

HKNC-650X is a real five-axis linkage intelligent stone machinery. It is not only equipped with Italian ESA CNC control system, but also equipped with servo motor and camera system, which makes cutting the slab easier and easier. HKNC-650X also has a very fast processing speed for slab, especially with high flatness and low breakage rate. HKNC-650X can be equipped with a vacuum manipulator, which can be used to move the slab without manual handling of the slab, which saves costs and ensures the safety of the operator. A nice feature indeed.


 Technical Parameters

Model No. HKNC-650X Unit
Diameter of saw blade ø350-ø650 mm
Max. cutting thickness 190 mm
Max. cutting length 3500 mm
Max. lifting stroke 500 mm
Dimension of working platform 3500x2100 mm
Max. lifting weight by sunction cups
200 kg
Power of main motor 15 kw
Power of cutter frame  motor 1.15 kw
Power of crossbeam shifting motor 1.15 kw
Power of lifting motor 0.85 kw
Power of hydraulic station motor 2.2 kw
Gross power 20.35 kw
Water consumption 2 m3/h
Dimension (L x W x H) 6300x3600x3100 mm
Gross Weight 5800 kg



Product Detail

1) 5 axis linkage control with Italian CNC Esa system.

2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.
4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.

3Laser Reticule Apparatus
ESA Control system -- CNC
Hiwin Linear Guide
ESA Digital Servomotor
Vacumm manipulator for workpieces handling


 Product Video

5 Axis CNC Bridge Stone Cutting Machine



1. What are the shapes that the HKNC-650X can process?

A: The HKNC-650X can cut straight, bevelled, round, curved and profiled. It can also drill holes and sink cutting functions.

2. What are the safety precautions to be taken when operating this stone cutting machine?

A: Please wear personal safety equipment when operating the machine and during the operation of the machine, and use the machine correctly according to the safety regulations.

3. What is the price range of this HKNC-650X stone cutting machine?

A: Hello, you need to tell us more detailed information about the specific quotation so that we can give you a more accurate quote..

4. What is the after-sales service of Hualong stone machinery and equipment?

A: Hualong has high quality pre-sales and after-sales service, and if you encounter any problems, Hualong's technicians will provide you with strong technical support. Ensure that you have no worries in buying our products.

5. Does Hualong stone cutting machine support customization?

A: Hello, Hualong stone cutting machine supports customization, you can tell the customer service the specific features you need, we will provide you with customization services to meet the different needs of different guests.
